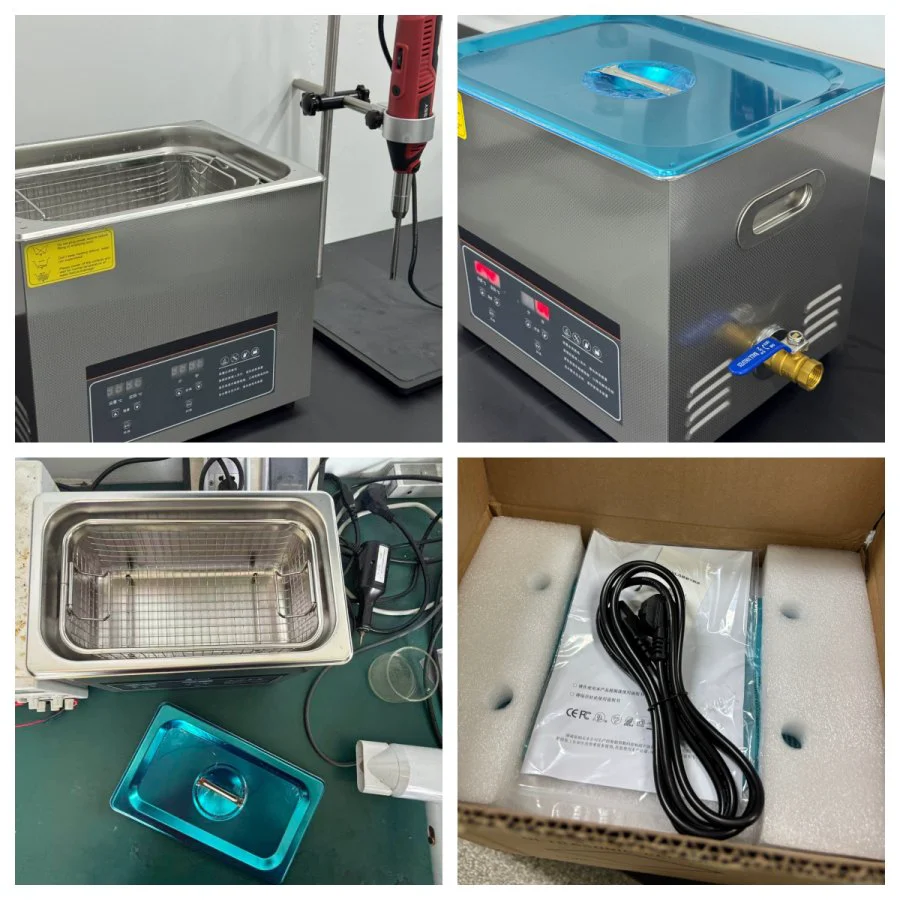

A laboratory ultrasonic cleaner is primarily used to clean laboratory glassware such as beakers, test tubes, pipettes, cuvettes, chromatography vials, and sample bottles. It can also clean metal components, optical lenses, medical instruments, and small precision parts.

Small-capacity models ranging from 1 L to 5 L are suitable for cleaning small quantities of samples, microsyringes, small test tubes, and equipment used in routine teaching experiments. Medium-capacity models ranging from 6 L to 15 L are ideal for cleaning larger batches of beakers, graduated cylinders, Petri dishes, and small accessories in everyday laboratory work. Large-capacity models ranging from 16 L to 30 L are suitable for university central laboratories, testing institutions, and small-scale production facilities that require sample pretreatment or the simultaneous cleaning of more glassware and larger workpieces.

Working Principle of an Ultrasonic Cleaner

An ultrasonic cleaner works through a process known as the cavitation effect. An ultrasonic generator produces high-frequency electrical signals, which are converted by transducers into mechanical vibrations at the same frequency. These vibrations create alternating pressure waves in the cleaning liquid.

During the low-pressure phase, tiny bubbles form and grow in the liquid. During the high-pressure phase, these bubbles rapidly collapse, generating localized high temperatures, high pressures, and microscopic liquid jets. These effects act on surfaces, narrow gaps, blind holes, and hard-to-reach areas, helping loosen, emulsify, or disperse contaminants such as grease, dust, protein residues, and oxides.

Additional functions such as heating, timer control, and adjustable ultrasonic power can further improve cleaning efficiency and allow users to adapt the cleaning process to different materials and applications.

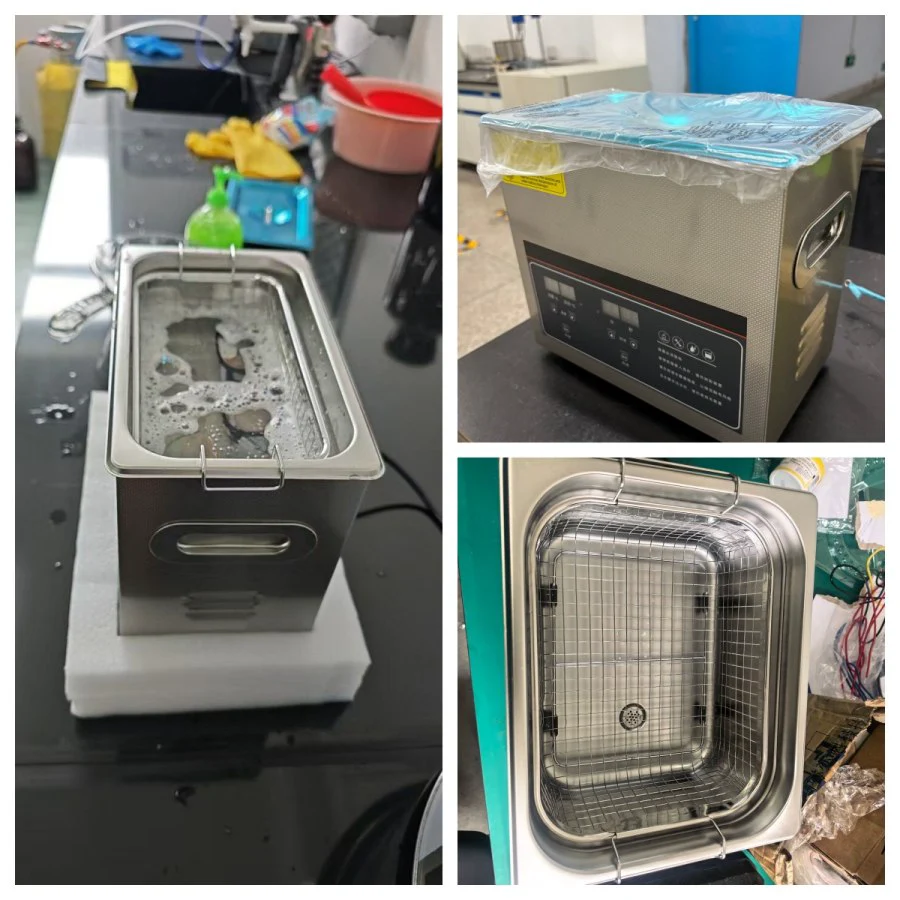

Applications of Laboratory Ultrasonic Cleaners

Laboratory ultrasonic cleaners are widely used in university chemistry and biology laboratories, environmental monitoring facilities, food and pharmaceutical testing laboratories, pharmaceutical research and development, medical device manufacturing, electronics production, optical instrument processing, and materials research.

In addition to cleaning laboratory glassware, ultrasonic cleaners can be used for solution degassing, sample dispersion, emulsification, mixing, extraction, and cell disruption as part of laboratory sample preparation.

Small-capacity models are suitable for teaching demonstrations and small-volume sample processing. Medium-capacity models are ideal for routine laboratory cleaning, while large-capacity units are well suited to testing centers, pharmaceutical quality control laboratories, and other facilities that need to process multiple items in a single cycle.

The versatility of ultrasonic cleaning makes it a practical solution for laboratories that handle different types of samples, instruments, and precision components.

How to Choose a Laboratory Ultrasonic Cleaner

When selecting a laboratory ultrasonic cleaner, first consider the tank capacity and internal dimensions. The cleaning tank should be large enough to fully immerse the items being cleaned while leaving sufficient space for the cleaning liquid to circulate.

As a general guide, 1–5 L models are suitable for small precision parts and limited quantities of glassware, 10–15 L models are suitable for routine laboratory applications, and 20–30 L models are better for batch cleaning.

Ultrasonic frequency is another important factor. A frequency of 40 kHz is suitable for most laboratory glassware and general-purpose cleaning. Higher frequencies may be preferable for delicate precision components, while lower frequencies can provide stronger cleaning action for certain heavy oil and grease contaminants. The appropriate frequency depends on the material, contaminant, and cleaning requirements.

Ultrasonic power should also match the tank capacity and intended application. Insufficient power may result in ineffective cleaning, while excessive power may damage delicate samples or sensitive components.

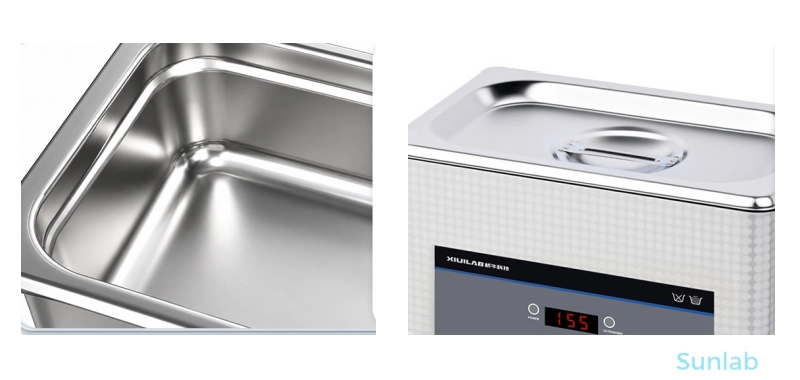

For the tank material, 304 stainless steel is a common choice for general laboratory use. When the cleaning solution or operating environment involves more aggressive corrosive chemicals, 316L stainless steel may be more suitable, subject to chemical compatibility.

Other useful features to consider include heating, timer control, degassing, adjustable ultrasonic power, low-liquid-level protection, and a drain valve. Choosing the right combination of capacity, frequency, power, and functions can improve cleaning efficiency and help protect valuable laboratory equipment.

Prices and Advantages of Chinese Laboratory Ultrasonic Cleaners

Chinese laboratory ultrasonic cleaners offer competitive prices and a wide range of specifications. Basic small-capacity models typically cost between $100 and $260, while larger models with capacities of 20–30 L and additional functions such as heating, timer control, and degassing generally range from $200 to $500.

Many Chinese models feature 304 stainless steel cleaning tanks, digital displays, heating with temperature control, and multiple safety protection functions. Depending on the model, additional features may include adjustable ultrasonic power, frequency sweeping, degassing, and constant-temperature control. These functions can meet the needs of routine cleaning, solution degassing, and laboratory sample preparation.

Compared with many European and American brands, Chinese ultrasonic cleaners generally offer more affordable purchasing options, a broad selection of capacities and configurations, shorter delivery lead times, and lower spare parts and maintenance costs.

For laboratories, testing institutions, and industrial facilities purchasing multiple units, Chinese laboratory ultrasonic cleaners can provide a practical and cost-effective solution for routine cleaning and long-term use.
