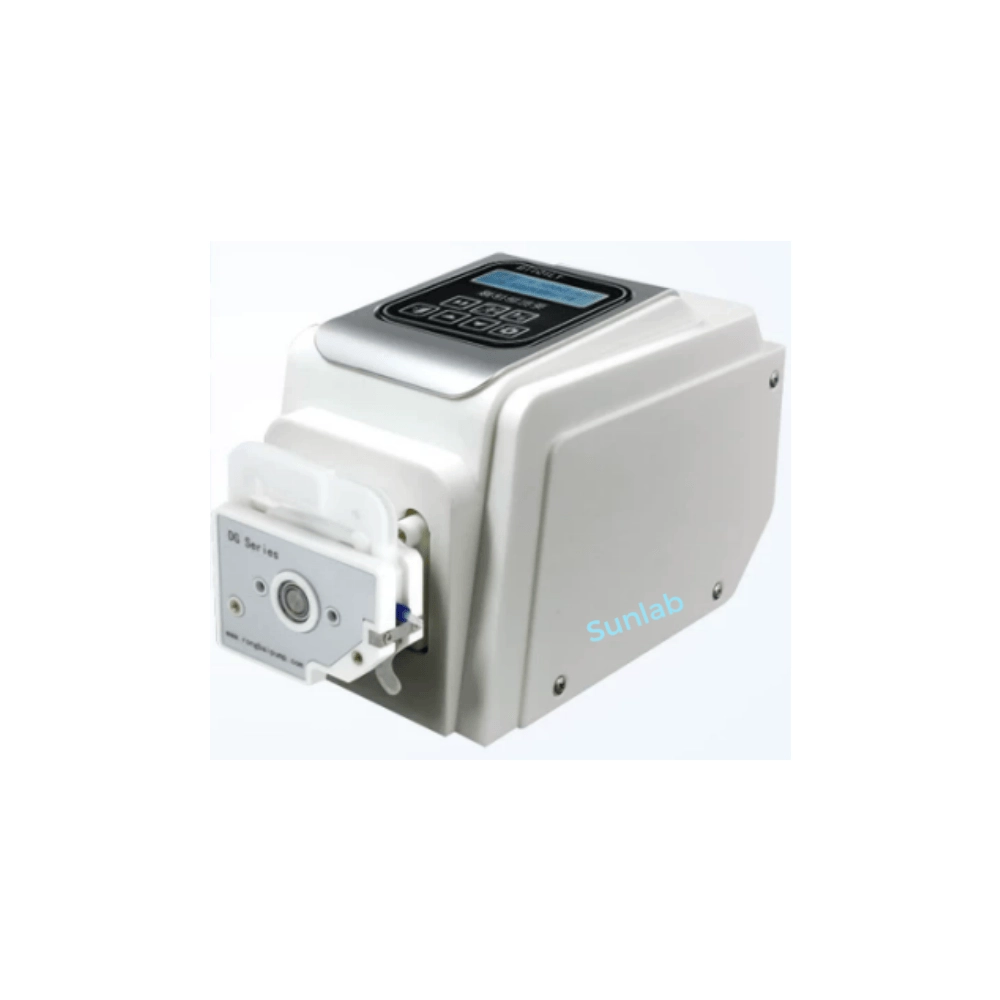

Laboratory Peristaltic Pump

Laboratory Peristaltic Pump Description

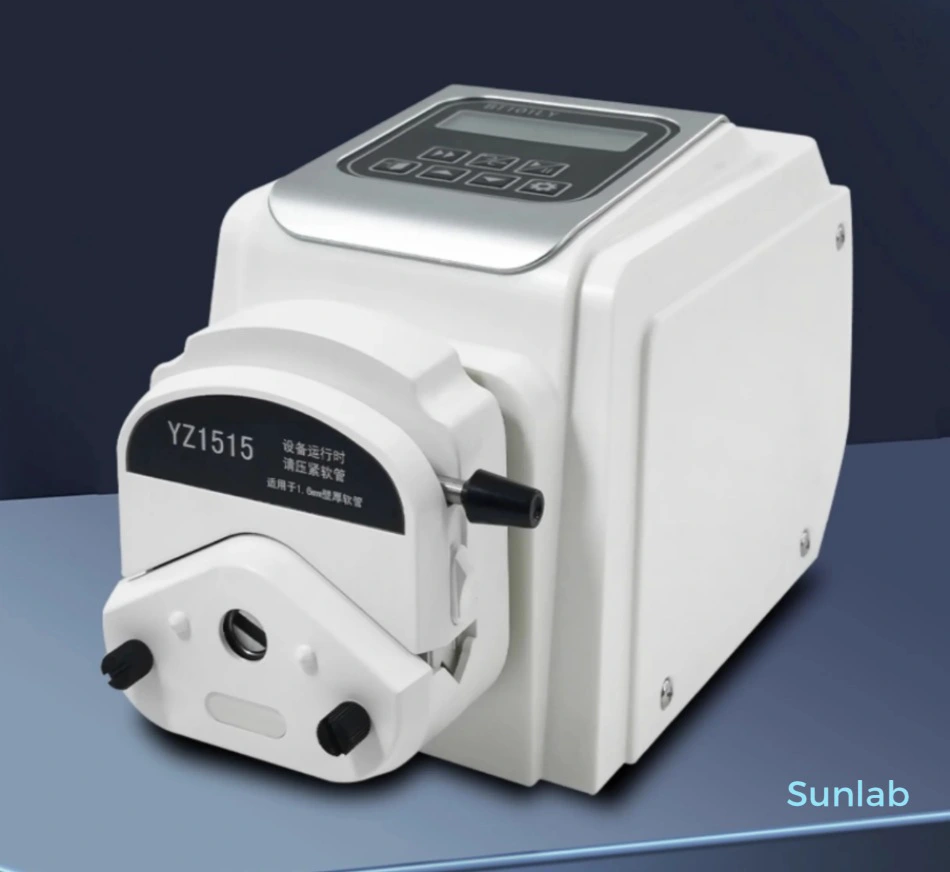

Laboratory Flow Type Peristaltic Pump

Flow Range: 0.002-570ml/min;

Speed Range: 0.1-150rpm;

High Precision And Low Vibration;

Power-Off Memory Function;

Corrosion Resistant, Acid And Alkali Resistant.

6 Major Performance Features:

1. Accurate Flow Control;

2. Data Is Visible;

3. Bidirectional Transmission;

4. Power-Off Memory;

5. Intelligent Internet Of Things;

6. Support External Control;


Product Video

(Video in production)

Technical Specifications / Model Tables

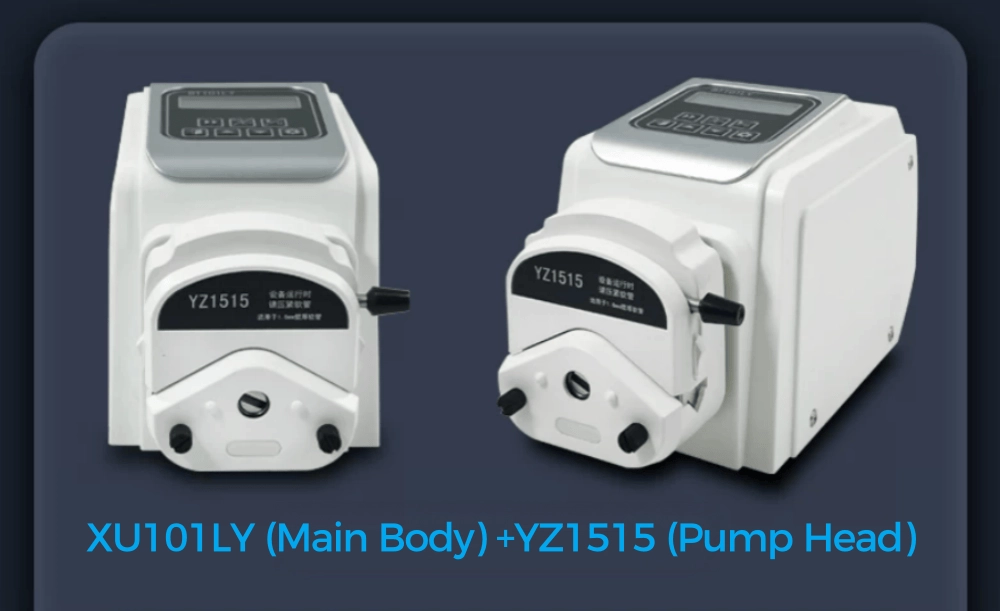

XU101LY (Main Body) +YZ1515 (Pump Head)

Hose Pump Head Matching, Traffic Meets Different Needs,

Pure Water At Normal Temperature And Pressure Is Tested Using Silicone Tubes.

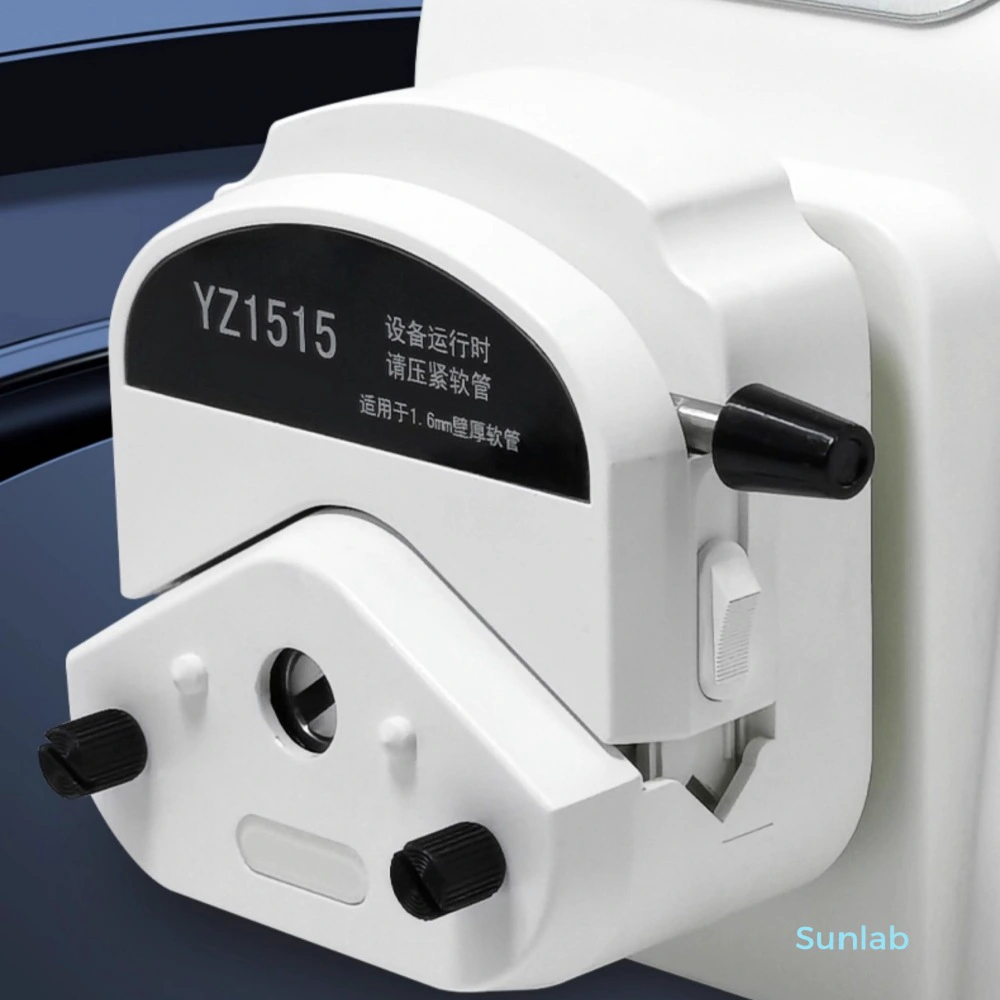

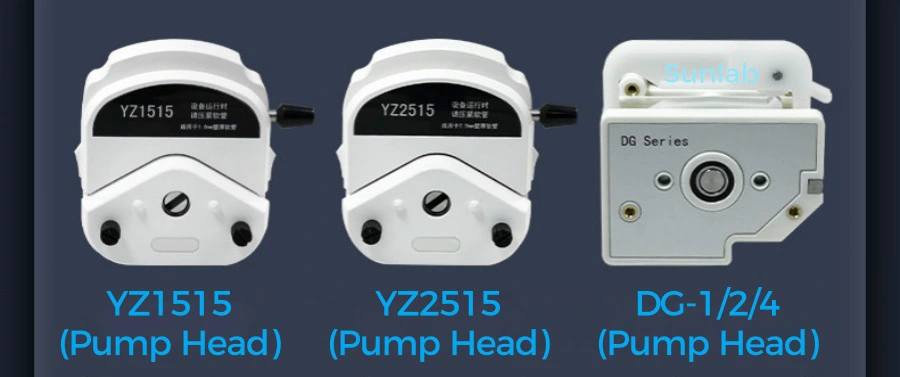

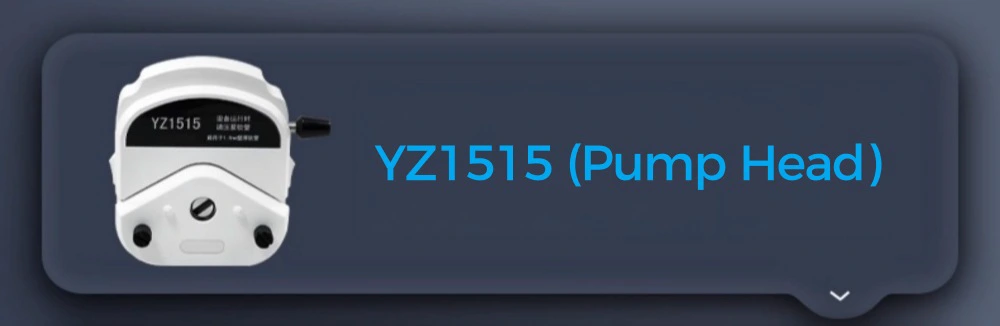

YZ1515 Pump Head Hose Flow Reference, 0.007-570ml/min.

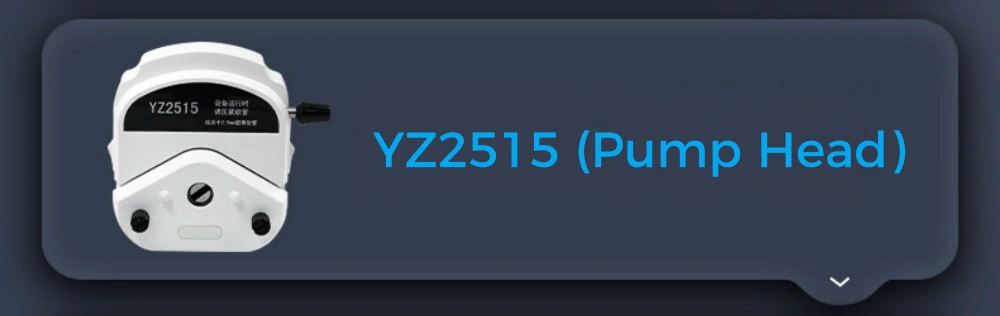

YZ2515 Pump Head Hose Flow Reference, 0.016-405ml/min.

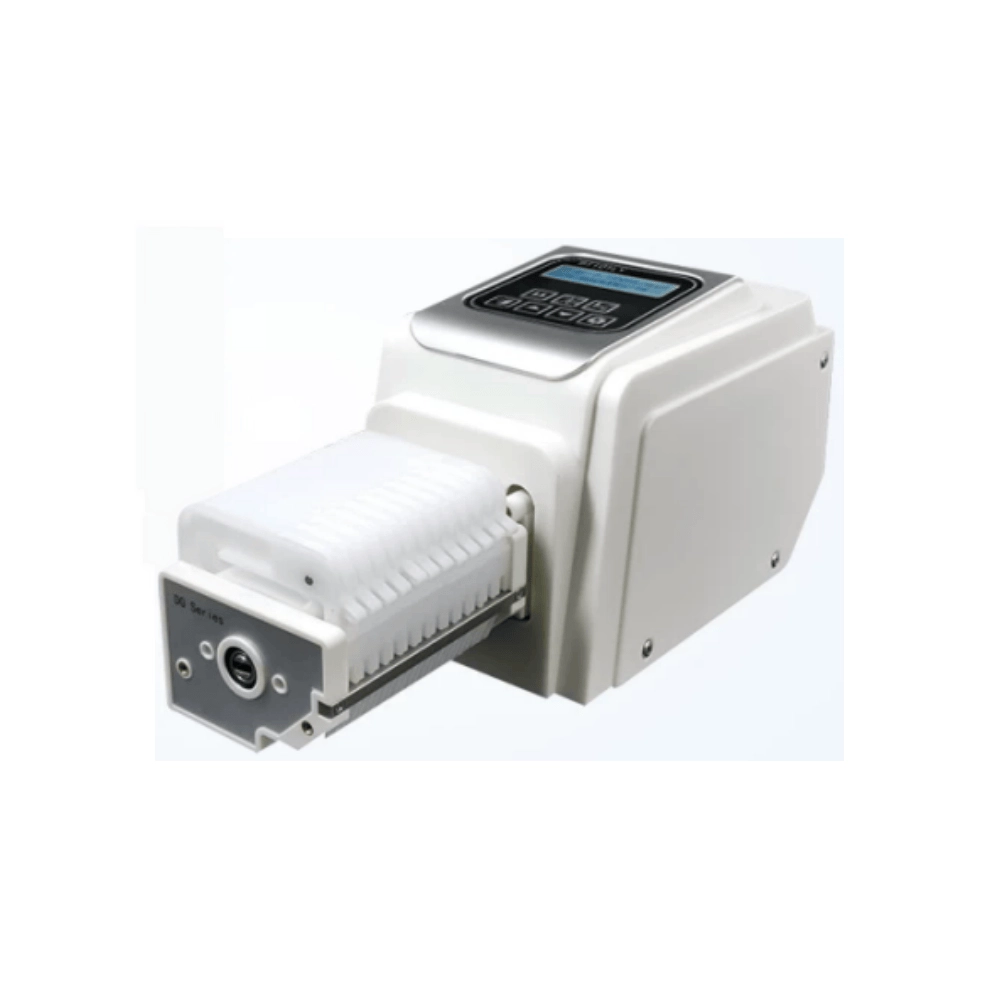

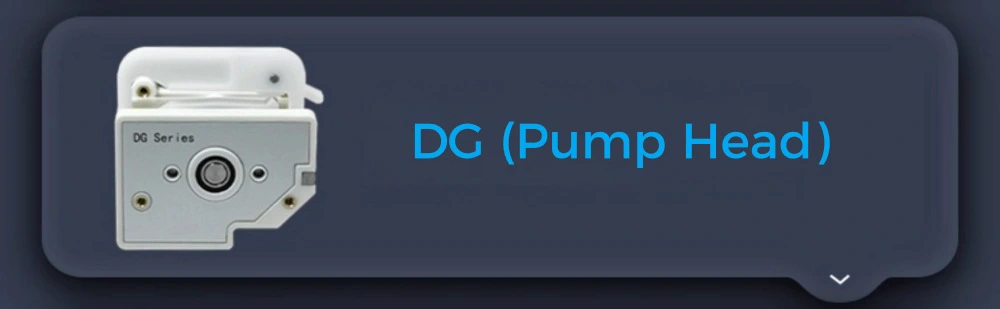

DG Pump Head, Hose Flow Reference, 6 Rollers, 10 Rollers.

Supports A Variety Of Pump Heads, Speed 200 rpm,

The Larger Flow Rate Allows The Peristaltic Pump To Be Rotated Through The External Control Interface.

Control Of Start-Stop Status And Running Direction.

Product Overview

Laboratory Peristaltic Pump

A laboratory peristaltic pump is a non-contact fluid dispensing and metering device that delivers fluids by compressing flexible tubing. It is mainly used for precise transfer of small volumes of liquid, continuous dispensing, and recirculation applications. It is an essential precision fluid control tool in biological, chemical, and analytical laboratories.

Working Principle

A peristaltic pump uses rollers rotating inside the pump head to sequentially compress the flexible tubing. This creates negative pressure to draw liquid into the tubing and positive pressure to discharge it. The fluid only comes into contact with the inner surface of the tubing and does not contact the pump body. This design helps prevent cross-contamination, makes cleaning easier, and allows the flow rate to be precisely controlled by adjusting the pump speed.

Applications

Laboratory peristaltic pumps are widely used in biopharmaceutical applications, such as cell culture media transfer and chromatography sampling; chemical analysis, including reagent addition and titration; environmental monitoring, such as water sample collection; food testing; and microfluidics research. They are particularly suitable for applications requiring high cleanliness or involving corrosive, sensitive, or viscous liquids.

Laboratory Peristaltic Pumps Selection Guide

When selecting a flow-type peristaltic pump, several performance parameters should be considered. A speed range of 0.1–150 rpm allows flexible flow adjustment from very low to conventional flow rates. A flow range of 0.002–570 mL/min covers precise liquid delivery from microliter to milliliter-scale applications and supports different experimental requirements. The appropriate tubing material should be selected according to the properties of the fluid being handled. Other useful features include digital speed control, flow calibration, timed and quantitative dispensing, and external control interfaces, which can improve ease of operation and experimental repeatability.

Sunlabpro has more than 10 years of experience supplying laboratory instruments from China. We support orders starting from one unit and provide reliable product quality. Competitive discounts are available for larger quantities.

Lab Peristaltic Pump Product Detail

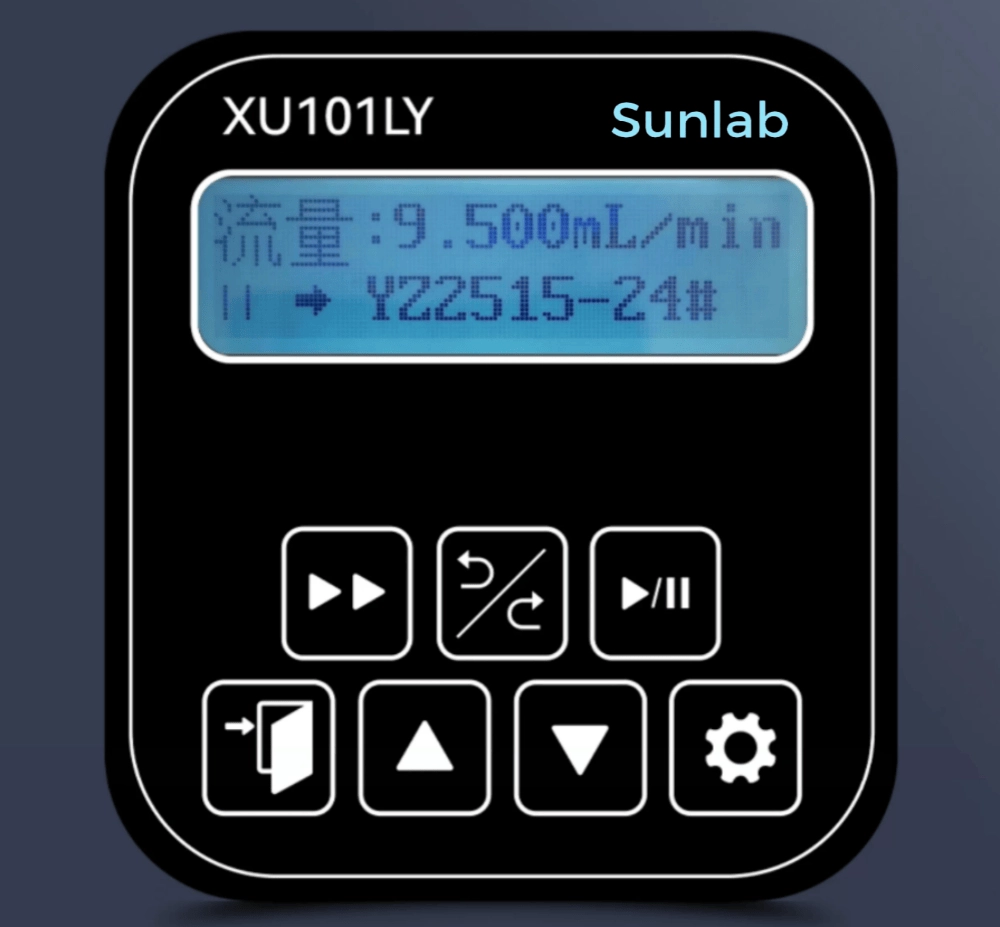

Peristaltic Pump Control Panel, Easy To Understand And Operate.

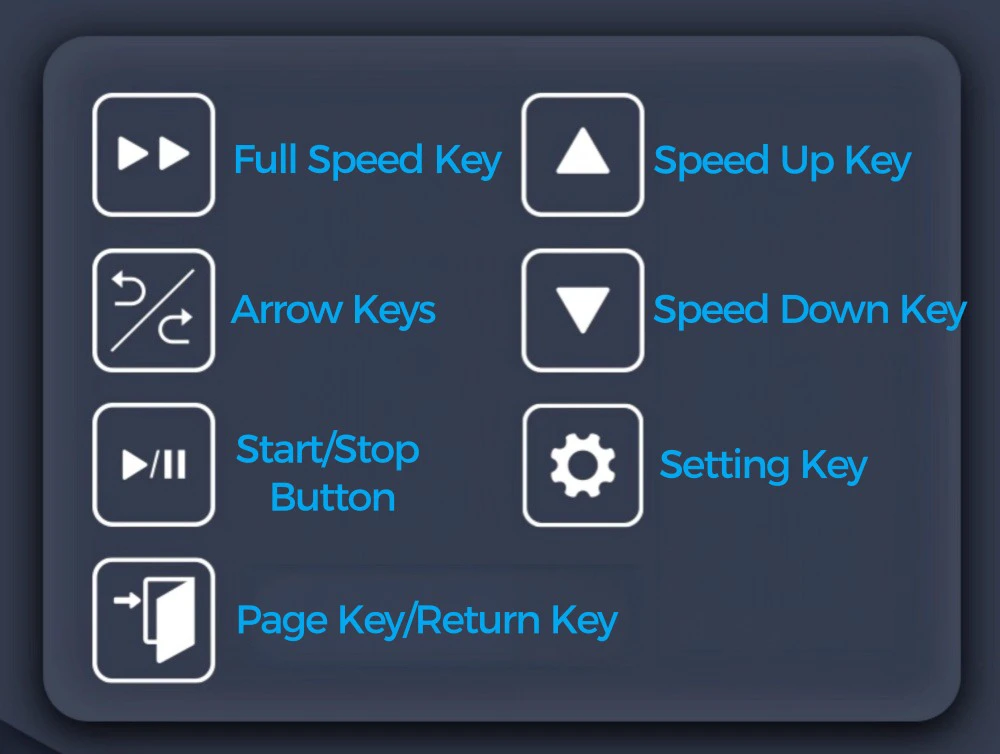

Peristaltic Pump Control Panel, Button Function Description.

The Body Shell Is Made Of High-Quality Abs Material, With Beautiful Appearance, Compact Size And Flexible Use.

Compatible With Frequency, Voltage, Current And Communication (RS485) At The Same Time,

Foot Switch And Other External Control Interface Forms,

RS485 Communication Uses Modbus Protocol, Which Is Easy To Debug And Use.

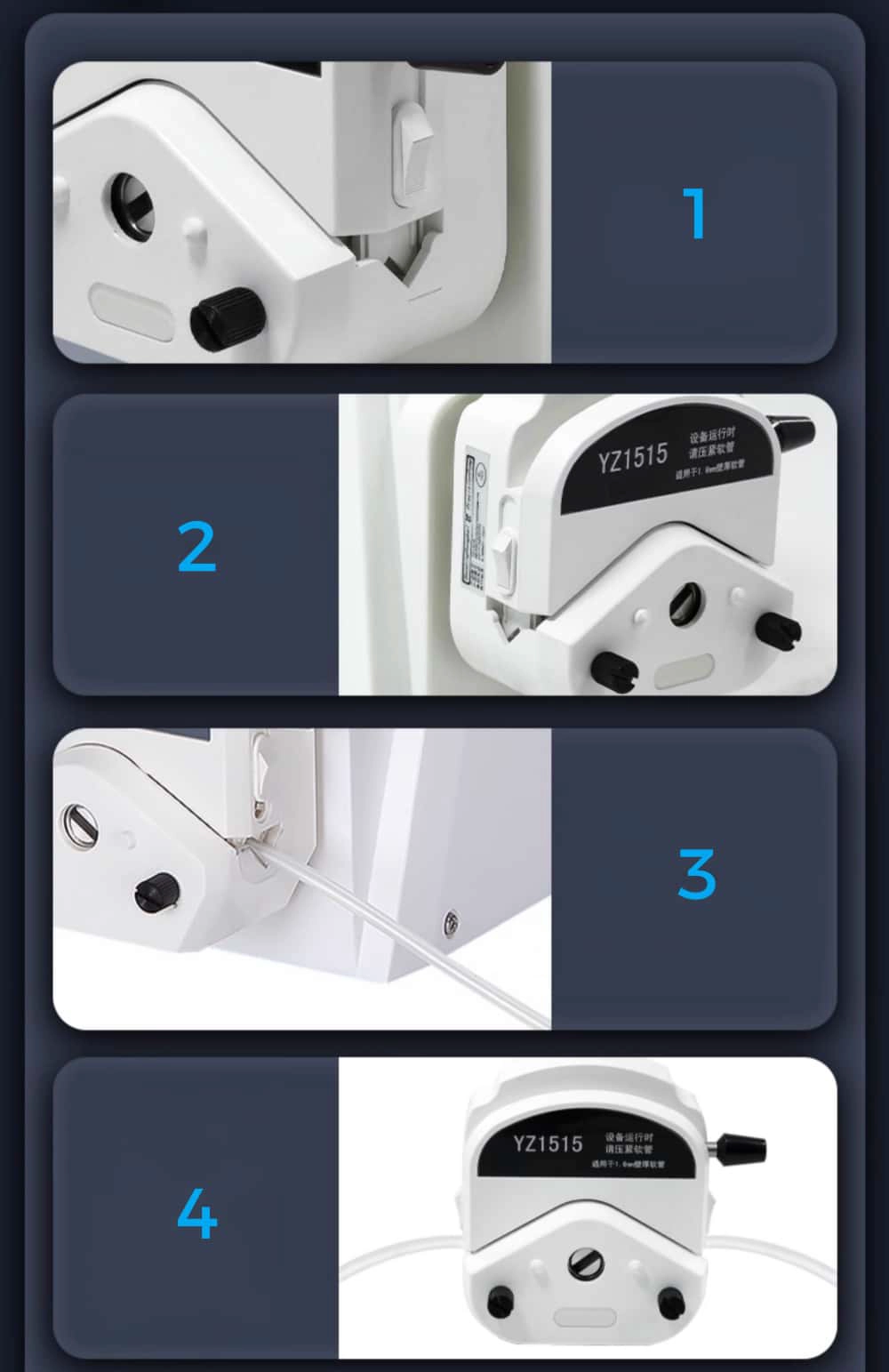

1. Easy To Clean And Maintain, Only The Hose Needs To Be Replaced, No Valves Or Seals.

2. Low Shear Force, In A Flexible Delivery Method.

3. It Can Transport A Variety Of Liquids And Mixed Liquids.

4. It Can Be Turned Around, Has A Two-Way Equal Flow Conveying Function, And Can Generate A Relative Vacuum To Prevent Backflow.

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.
