Laboratory Circulating Water Vacuum Pump

Lab Circulating Water Vacuum Pump Description

Features:

Flow: 60-90L/Min, Head 8-12M, Tank Capacity 15-35L,

The Number Of Air Extraction Heads Is Optional From 2 To 5.

Power 180-370W.

6 Major Functions:

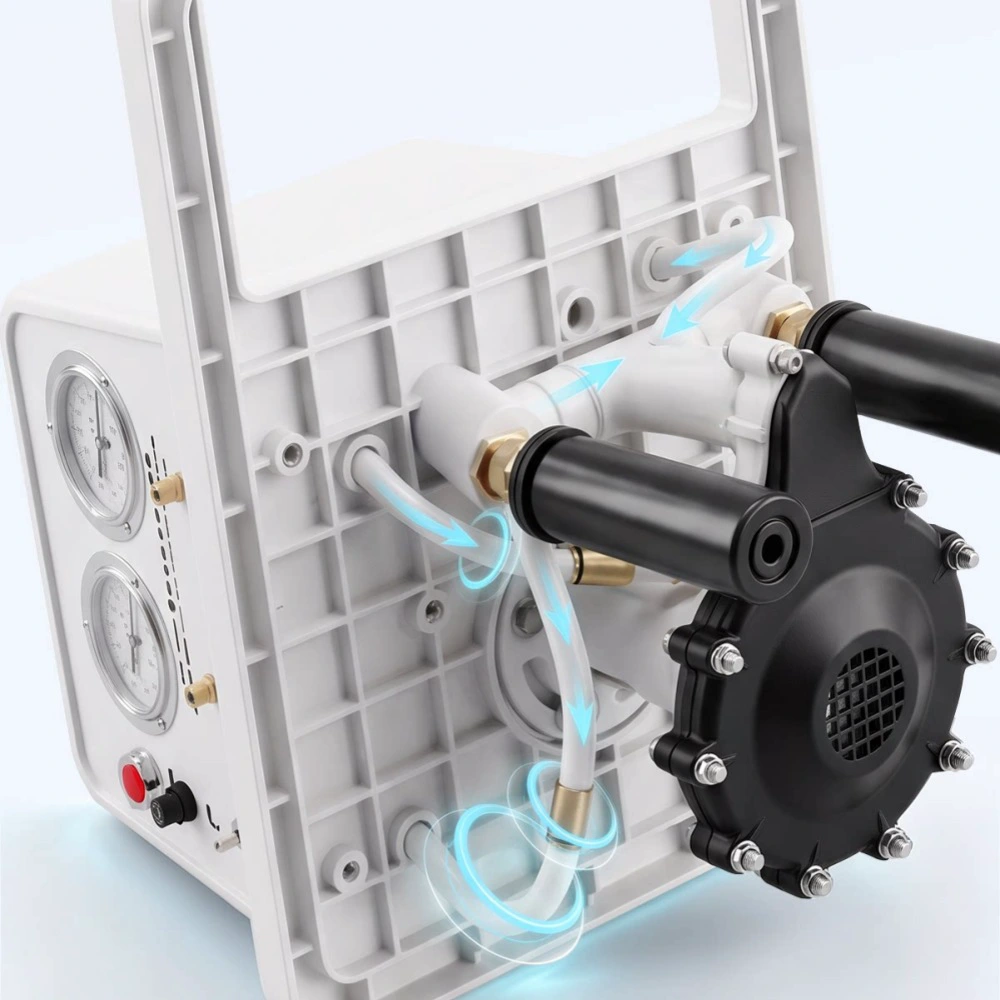

1. High vacuum, large suction power, ultimate vacuum up to -0.098MPa;

2. The check valve prevents backflow, prevents gas backflow, and ensures stable operation of the experiment;

3. ABS material body molding design, corrosion resistance and high strength;

4. All-copper coil AC motor, easy to operate and clear display;

5. Shock-resistant stainless steel vacuum gauge, high-precision, shock-resistant and anti-magnetic, improving accuracy;

6. Multiple models are available:

1. ABS; 2. 304 Stainless Steel; 3. PTFE;

4. Four Meters And Four Pumps;

5. ABS Strong Version;

6. Vertical Five Taps.

Applicable scope applicable to industries,

Widely used in evaporation, distillation, crystallization, filtration, pressure reduction, biochemistry, etc.

Product Video

Technical Specifications / Model Tables

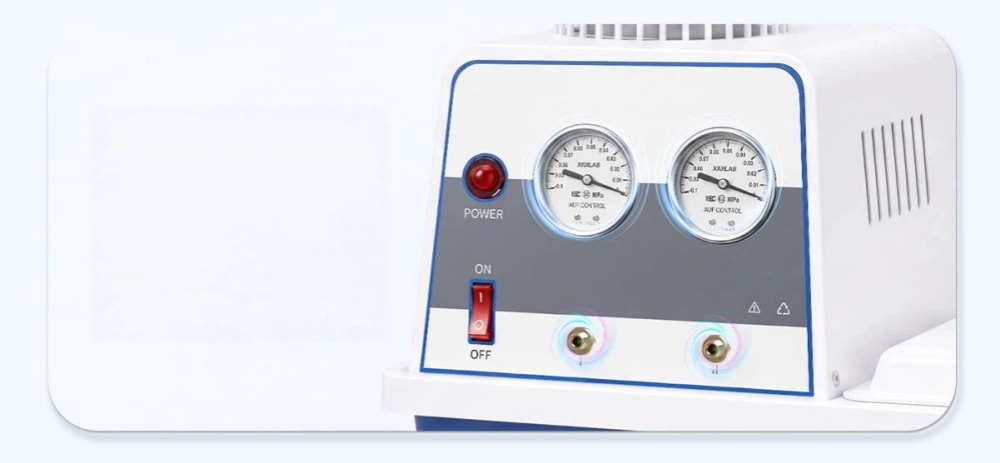

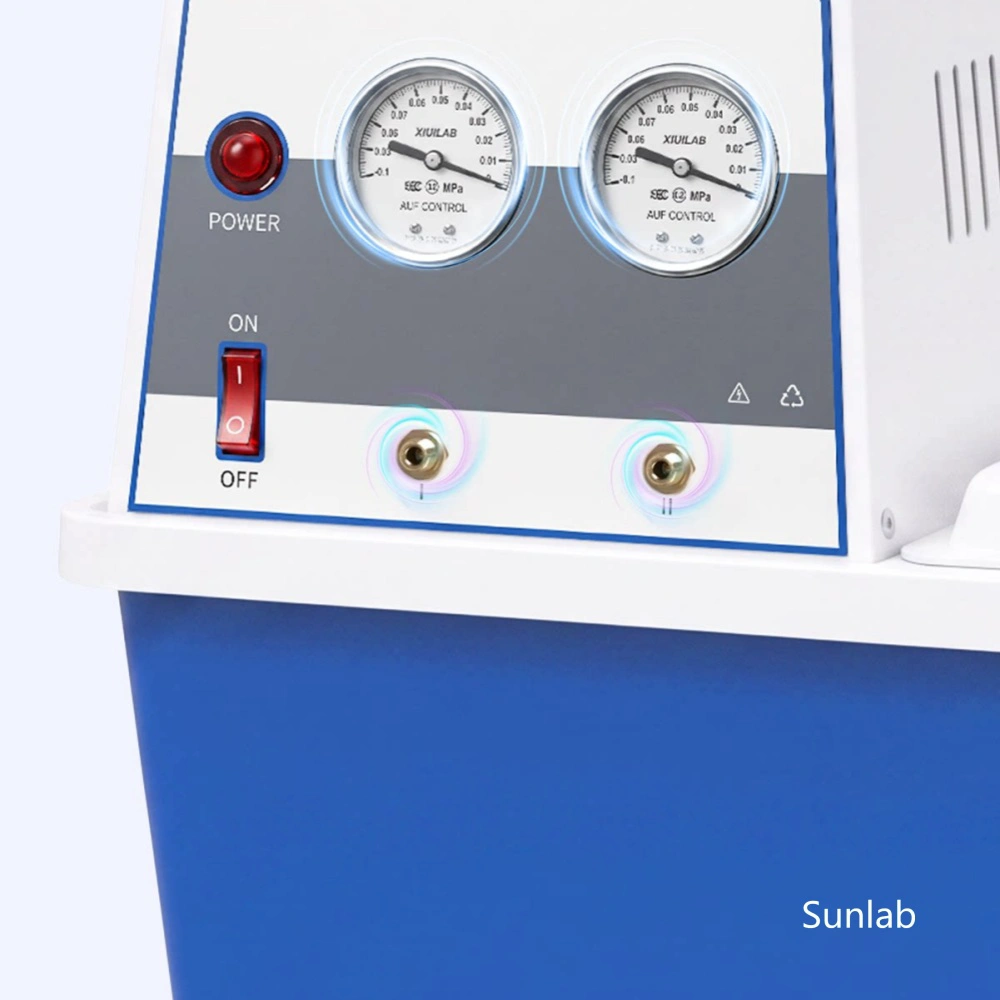

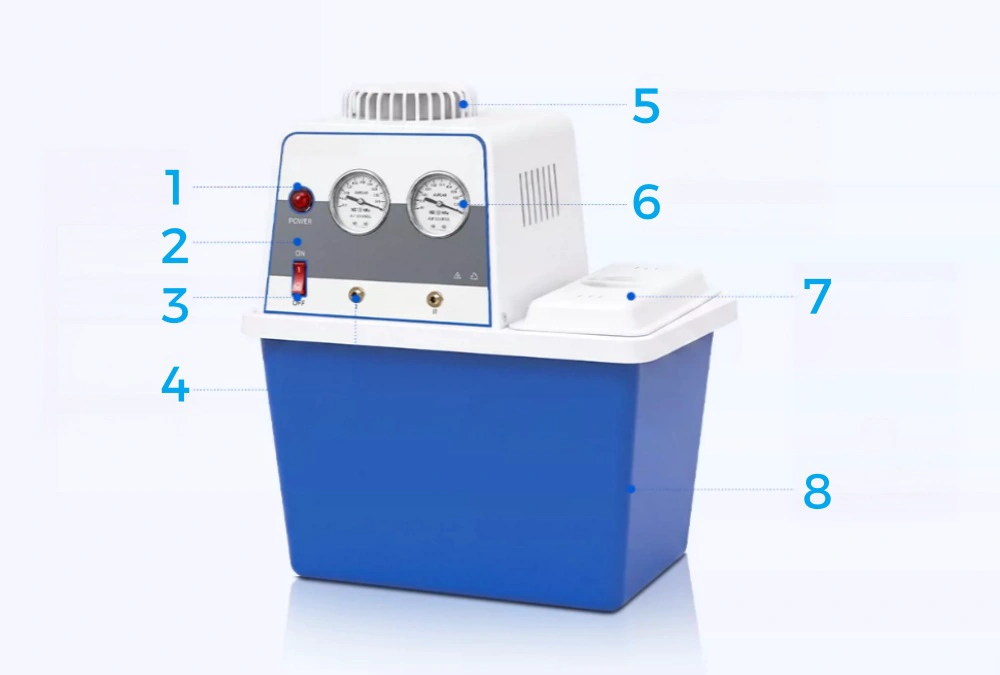

1. Indicator Light

2. Fuse

3. Switch

4. 2 Taps

5. Motor

6. 2 Vacuum Gauges

7. Cover

8. Abs Sink

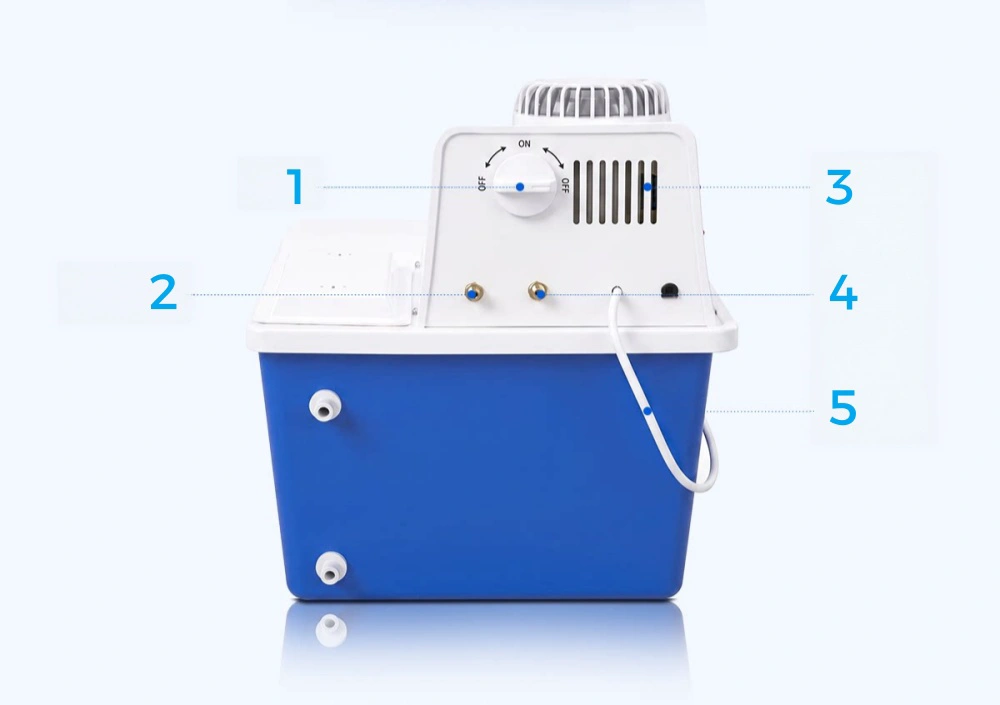

1. Switch

2. Water Inlet

3. Heat Dissipation Vent

4. Water Outlet

5. Power Cord

XU-SHZ Series

Multi-series selection guide to quickly select efficient experiments.

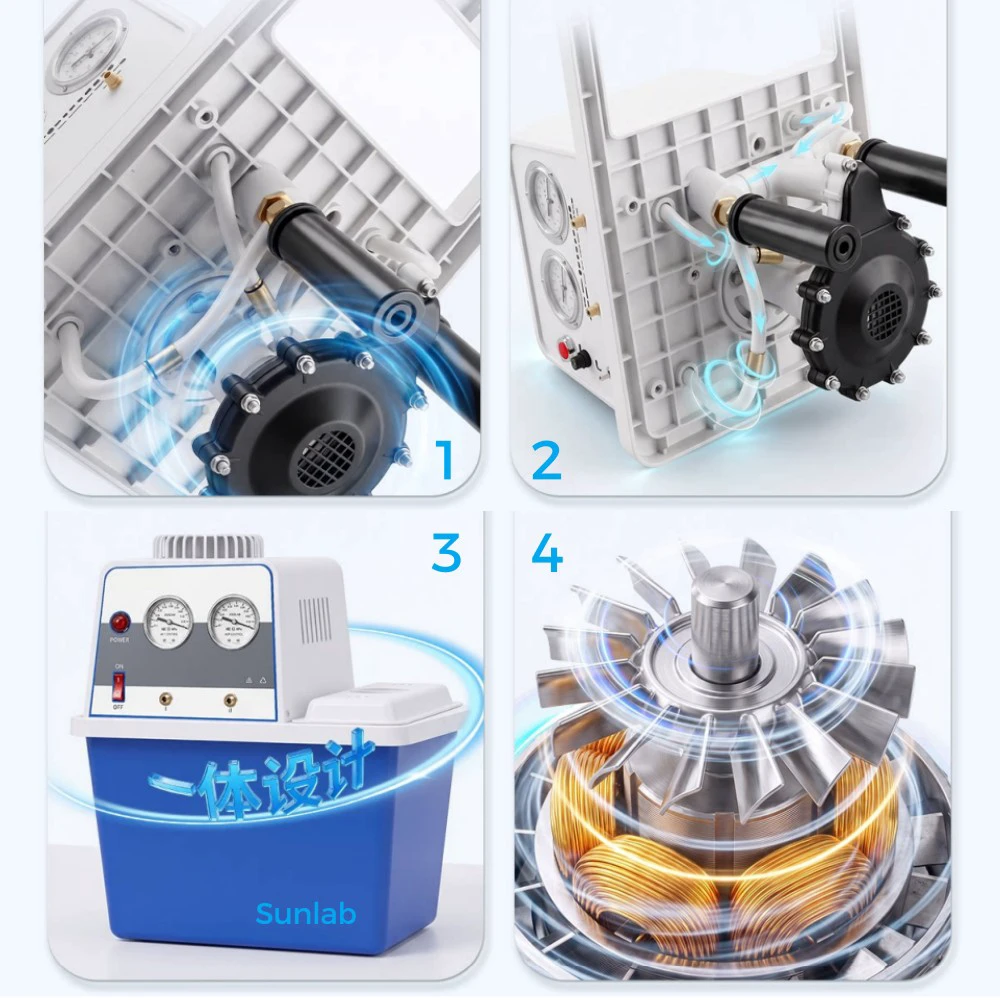

High vacuum and large suction power, stable negative pressure output,

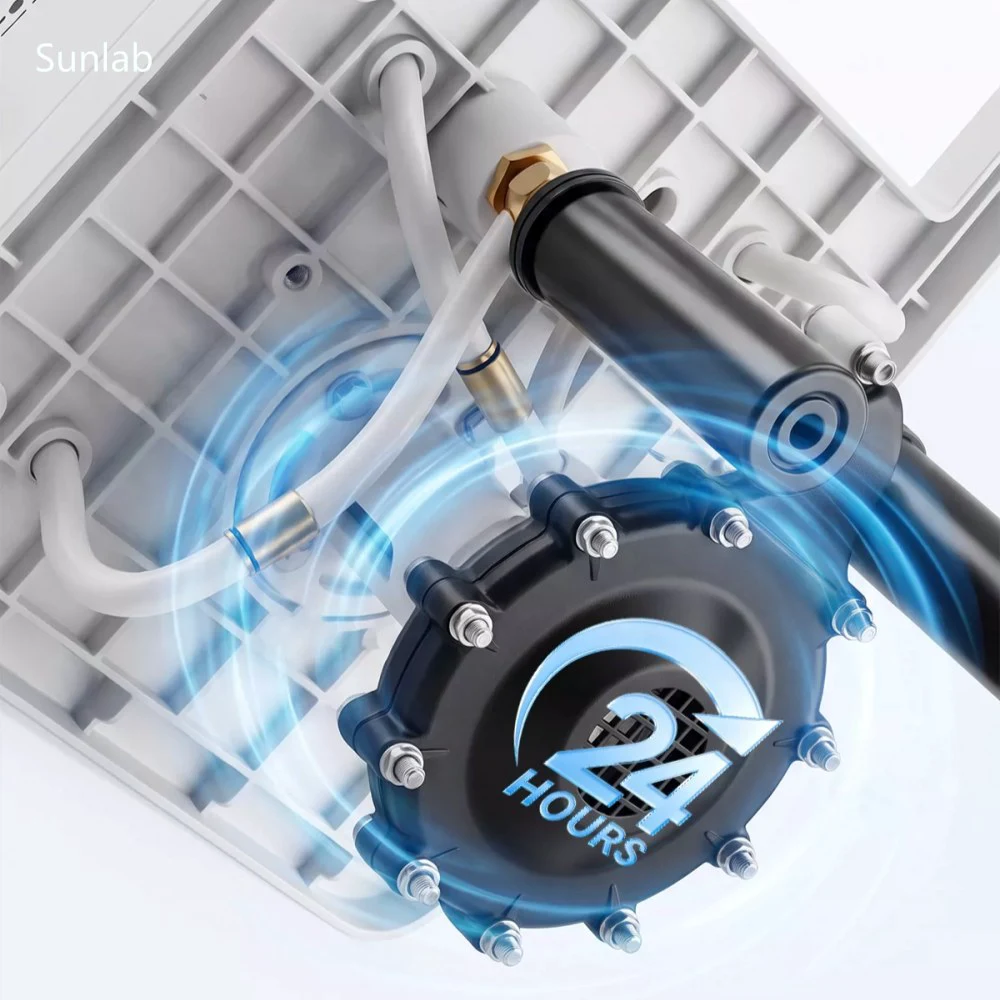

Support 24-hour continuous work,

Ultimate vacuum -0.098MPA, quickly establish a vacuum environment.

The check valve prevents backflow and protects every sample.

Effectively prevents backflow and suction of media, preventing waste liquid from backflowing and damaging the instrument.

Reduce the risk of experimental failure.

All-copper AC motor, low noise and surging power,

The operation has low vibration and low noise, and can support long-term uninterrupted vacuuming operations.

Multiple stations can independently control pressure and work at the same time without interfering with each other. Double meters and double pumps can work at the same time without interfering with each other.

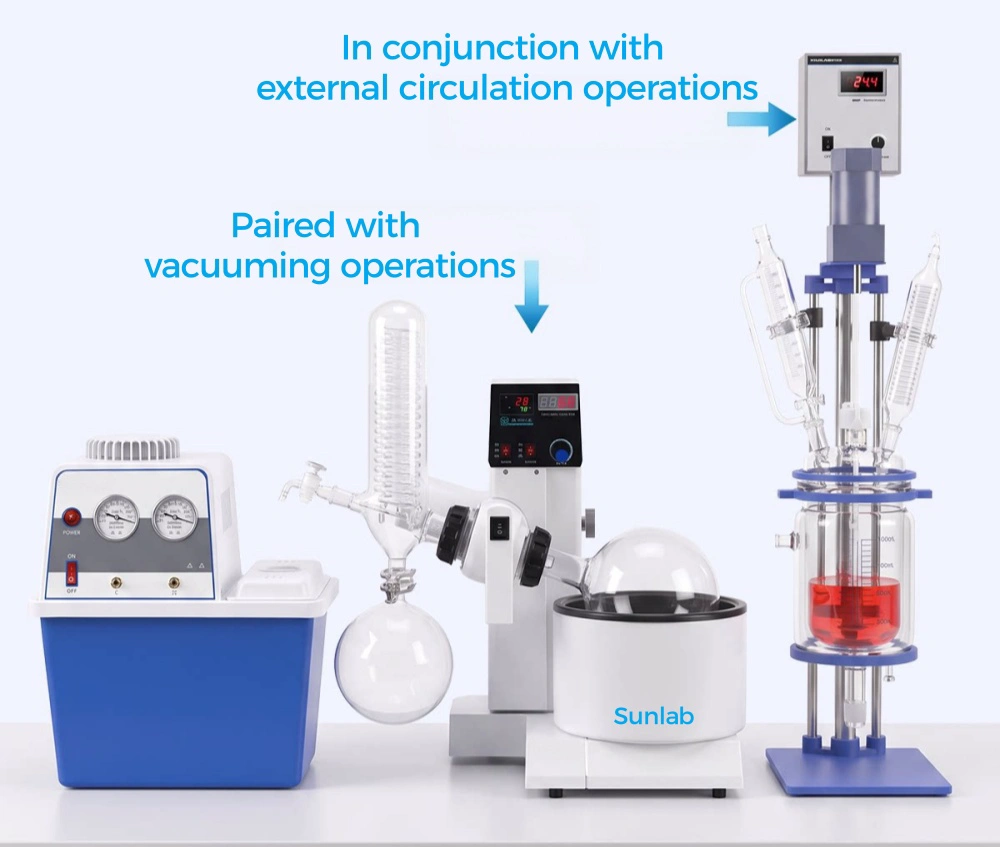

One machine with multi-purpose circulation/vacuum dual-purpose design.

In conjunction with external circulation operations,

Paired with vacuuming operations.

Product Overview

Laboratory Circulating Water Vacuum Pump

A laboratory circulating water vacuum pump is a vacuum-generating device that uses circulating water as the working medium to create negative pressure. It is primarily used for laboratory operations such as vacuum distillation, vacuum filtration, vacuum drying, and vacuum concentration. It can replace traditional oil vacuum pumps, helping prevent oil contamination, and is a commonly used basic vacuum device in chemical and biological laboratories.

Working Principle

The pump uses an electric motor to drive an impeller, creating a high-speed water flow inside the tank and generating negative pressure. Air is drawn out of the connected system through the vacuum inlet and discharged through the water tank. The water can be reused in a continuous cycle, resulting in low operating noise and simple maintenance. This design makes the pump suitable for long periods of continuous operation.

Applications

Laboratory circulating water vacuum pumps are widely used in chemical synthesis, including vacuum distillation and solvent recovery; biopharmaceutical applications, such as vacuum filtration and as a backing pump for freeze-drying systems; environmental monitoring, including vacuum filtration of water samples; university teaching laboratories; and small-scale pilot plants. They are particularly suitable for routine laboratory applications that require a stable, clean vacuum source but do not need an extremely high vacuum level.

Circulating Water Vacuum Pump Selection Guide

When selecting a laboratory circulating water vacuum pump, several factors should be considered. A flow rate of 60–90 L/min affects air extraction speed, while a head of 8–12 m indicates the pump's water delivery capability. An ABS water tank with a capacity of 15–35 L can provide longer continuous operation when a larger tank is used. The number of vacuum inlets, typically 2–5, should match the number of devices that need to operate simultaneously. Power ratings of 180–370 W are available, with higher power generally providing greater pumping capacity. Other important features include a corrosion-resistant water tank, low-water protection, and noise control.

Sunlabpro has more than 10 years of experience supplying laboratory instruments from China. We support orders starting from one unit and provide reliable product quality. Competitive discounts are available for larger quantities.

Product Detail

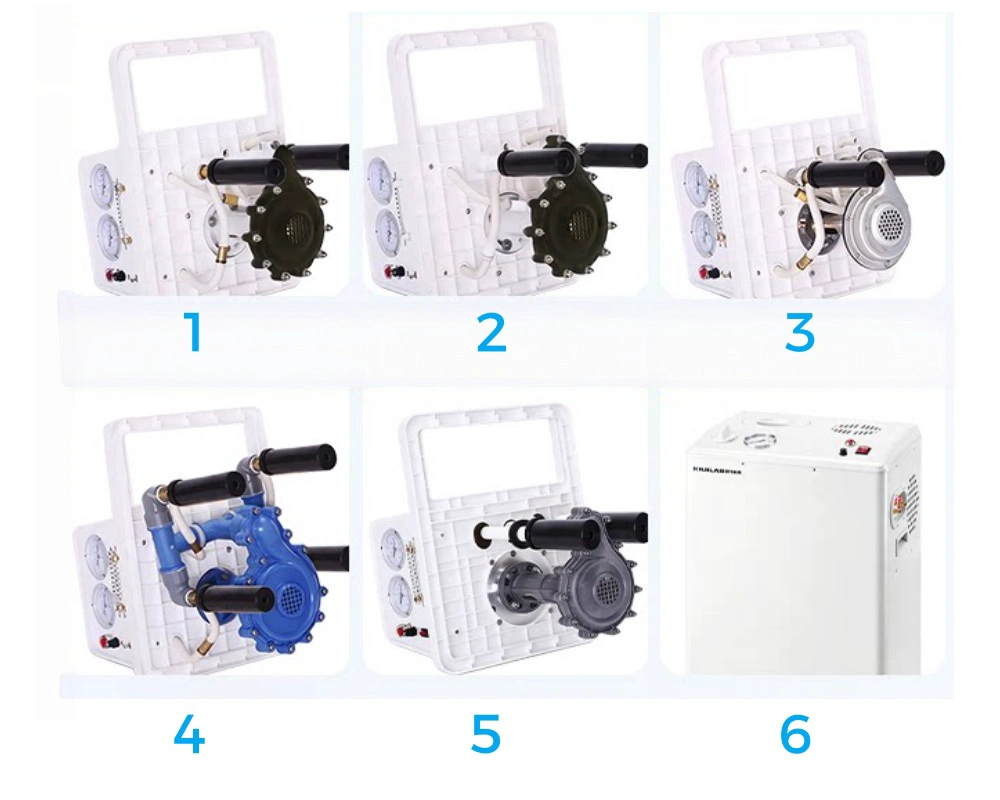

Differences in circulating water vacuum pump models

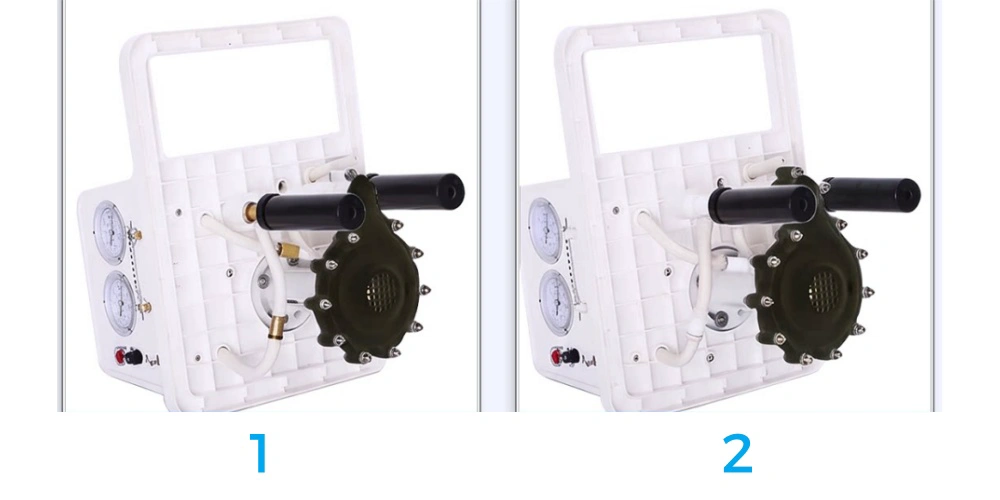

1. SHZ-D(III)ABS type

Exhaust port: all copper material;

Check valve: PTFE + PP anti-corrosion material, pump head made of polypropylene.

2. SHZ-D(III)PTFE type

Exhaust port: PTFE material;

Check valve: PTFE + PP anti-corrosion material, pump head made of polypropylene.

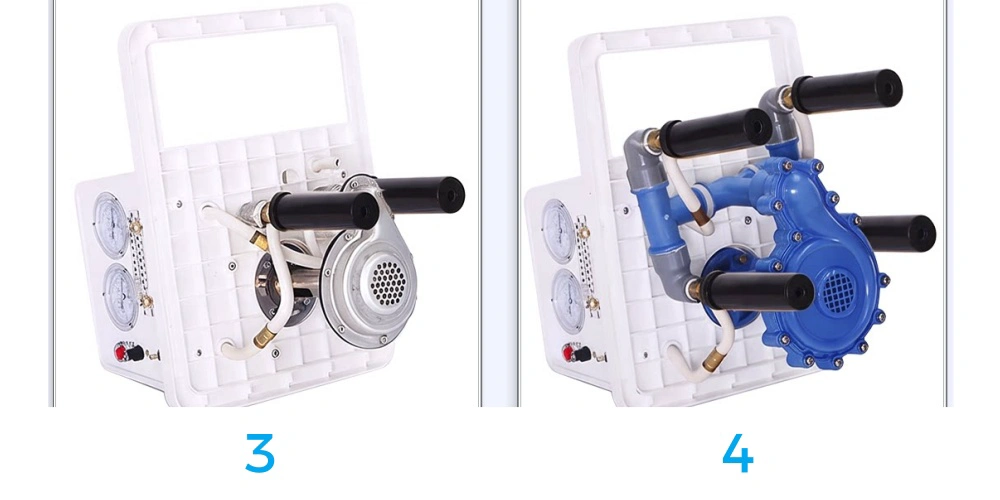

3. SHZ-D(III) stainless steel type,

Exhaust port: all copper material;

Check valve: PTFE + PP anti-corrosion material, pump head is 304 stainless steel.

4. SHZ-D(1I) four meters and four pumps,

Exhaust port: all copper material;

Check valve: PTFE + PP anti-corrosion material, pump head made of polypropylene.

5. SHZ-S(III)ABS Strong Version,

Exhaust port: all copper material;

Check valve: PTFE + PP anti-corrosion material, pump head made of polypropylene.

6. SHZ-95 vertical five taps;

Suction port + check valve: all made of copper, and the pump head is made of polypropylene.

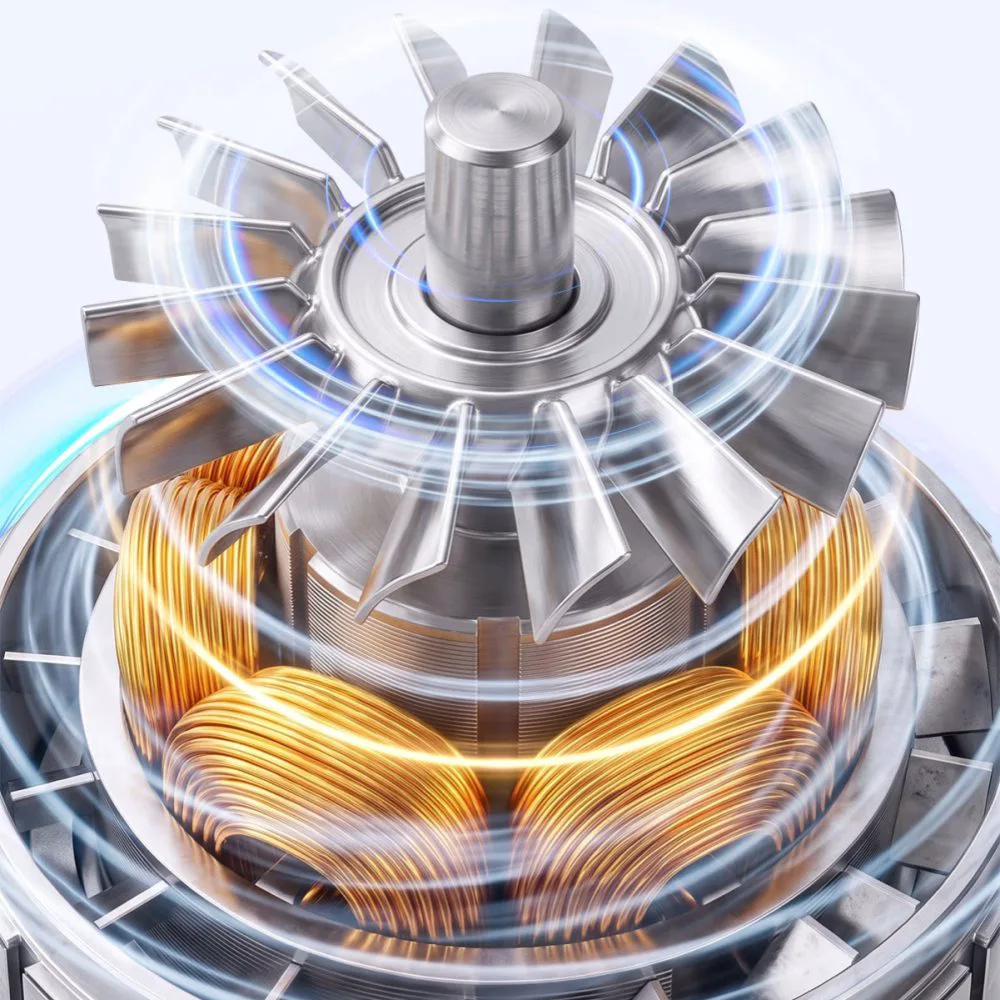

1. Full copper core coil motor, actual standard 180W high power.

2. Stainless steel motor shaft core, stainless steel motor shaft core is used to prevent rust.

3. Double meter and double tap, independent double meter and double tap design, can vacuum 2 containers at the same time.

4. ABS engineering plastic is molded in one go, with solid structure, user-friendly design and long service life.

5. Stainless steel screws/nuts,

All important parts and screws are made of stainless steel screws and nuts.

6. Full copper check valve,

Effectively avoids the problem of vacuum back-inhalation, made of all copper, durable (except PTFE type)

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.

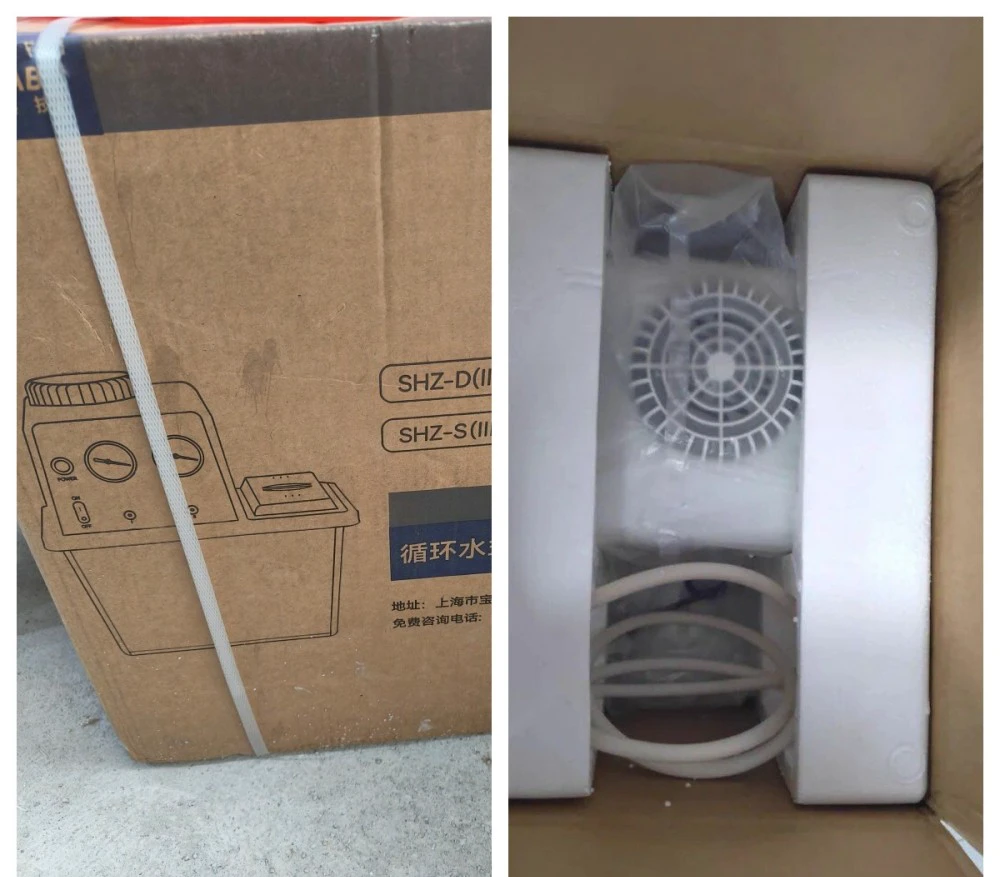

Product Packaging

Plastic Bag + Bubble Wrap + Carton.

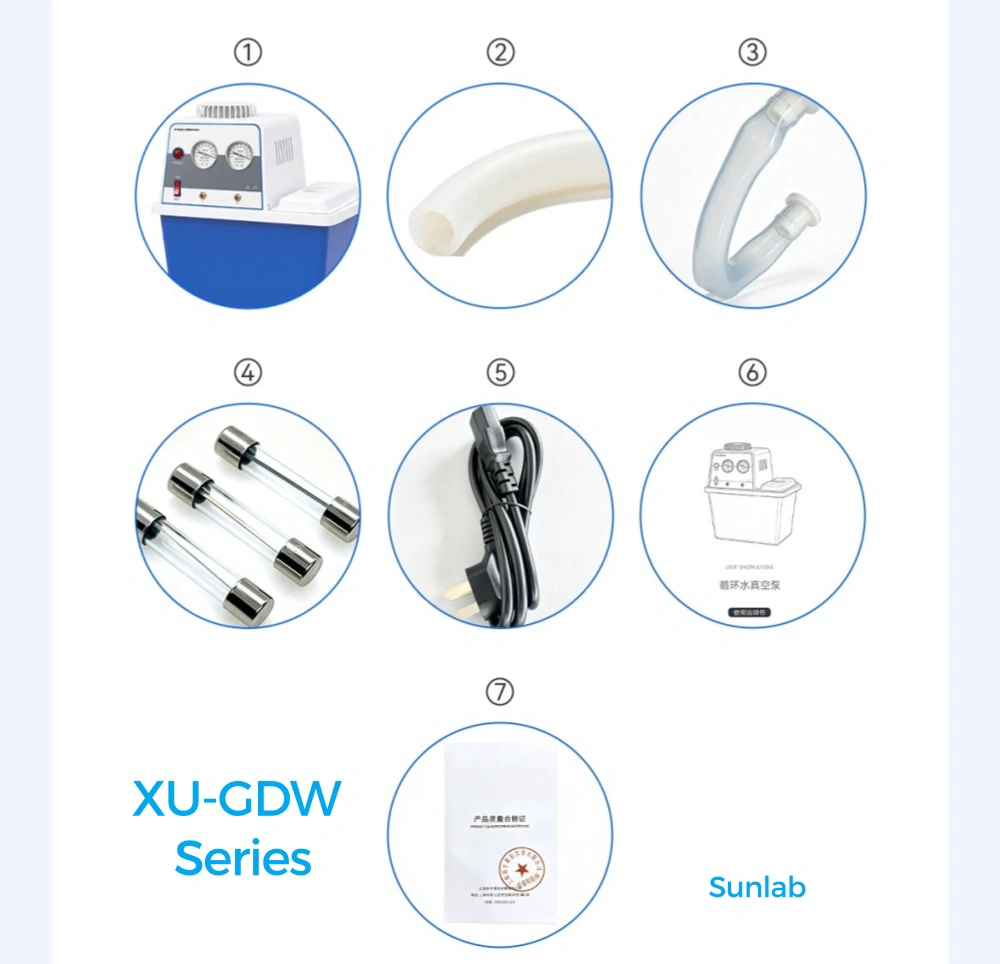

XU-SHZ Series Packing List

1. Host

2. Silicone tube (inner diameter 14*outer diameter 18mm)

3. Vacuum hose (inner diameter 6*outer diameter 12mm)

4. Fuse

5. Power cord

6. Product manual

7. Certificate/warranty card.

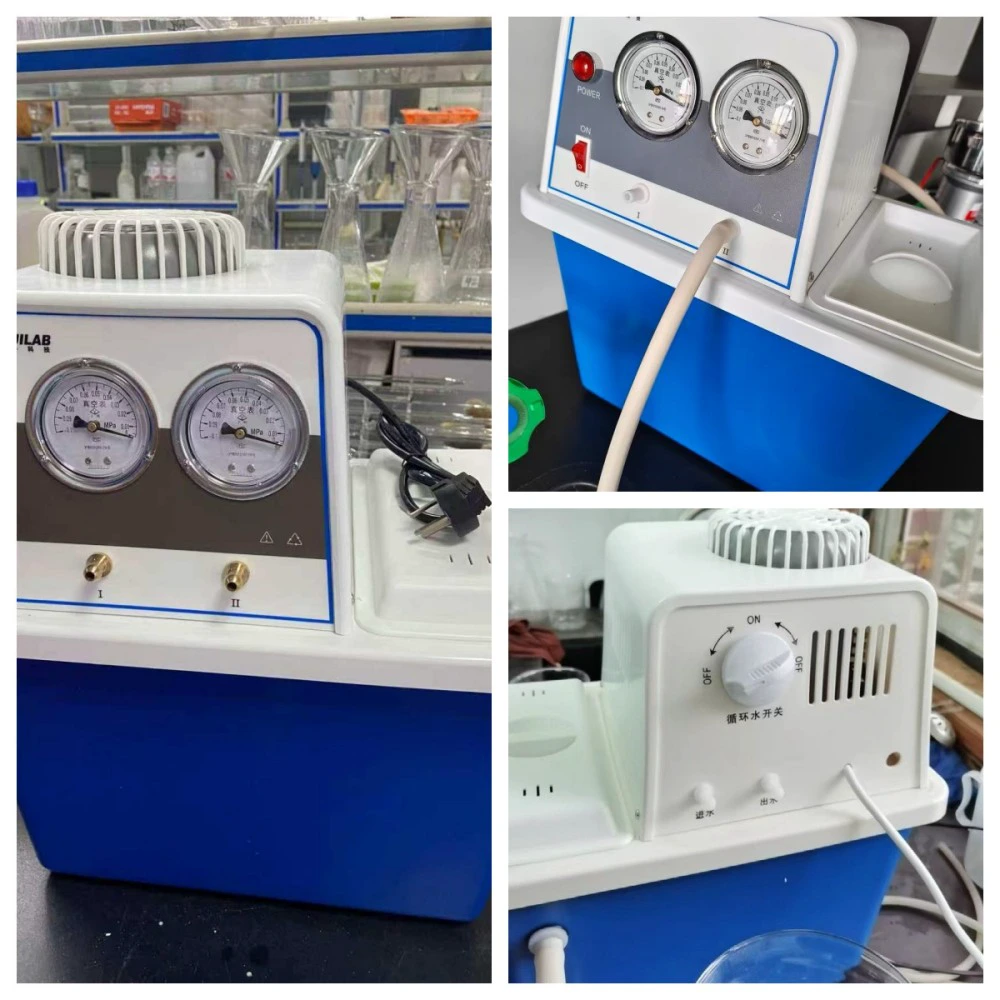

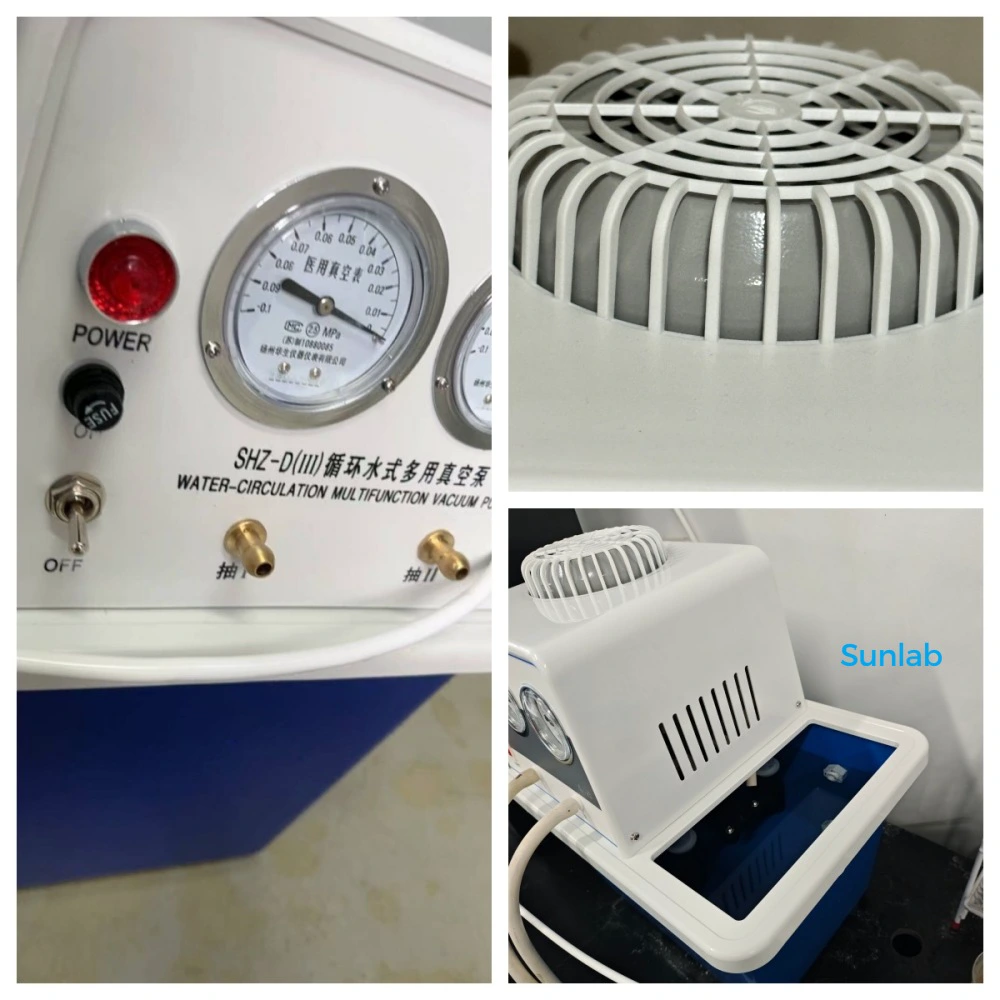

Customer Photos/ Customer Review

The circulating water vacuum pump operates smoothly, has sufficient negative pressure, fast filtration speed, corrosion-resistant material, long service life, and simple and convenient maintenance. The customer service communication is smooth, the logistics and delivery are fast, the transportation packaging is thick and bump-proof, the machine is delivered in good condition, and the overall reliability is good.

The vacuuming force is sufficient and the negative pressure is stable, which is sufficient for distillation and filtration. The circulating water design dissipates heat quickly and does not get hot during long-term operation. The dual-meter display has clear readings and is particularly simple to operate. The customer service is very patient and not perfunctory at all.

The operation is stable, the noise is low, and the air pumping speed is fast, fully meeting our experimental needs. The after-sales service is also in place. It will be better if we can produce larger ones in the future.
