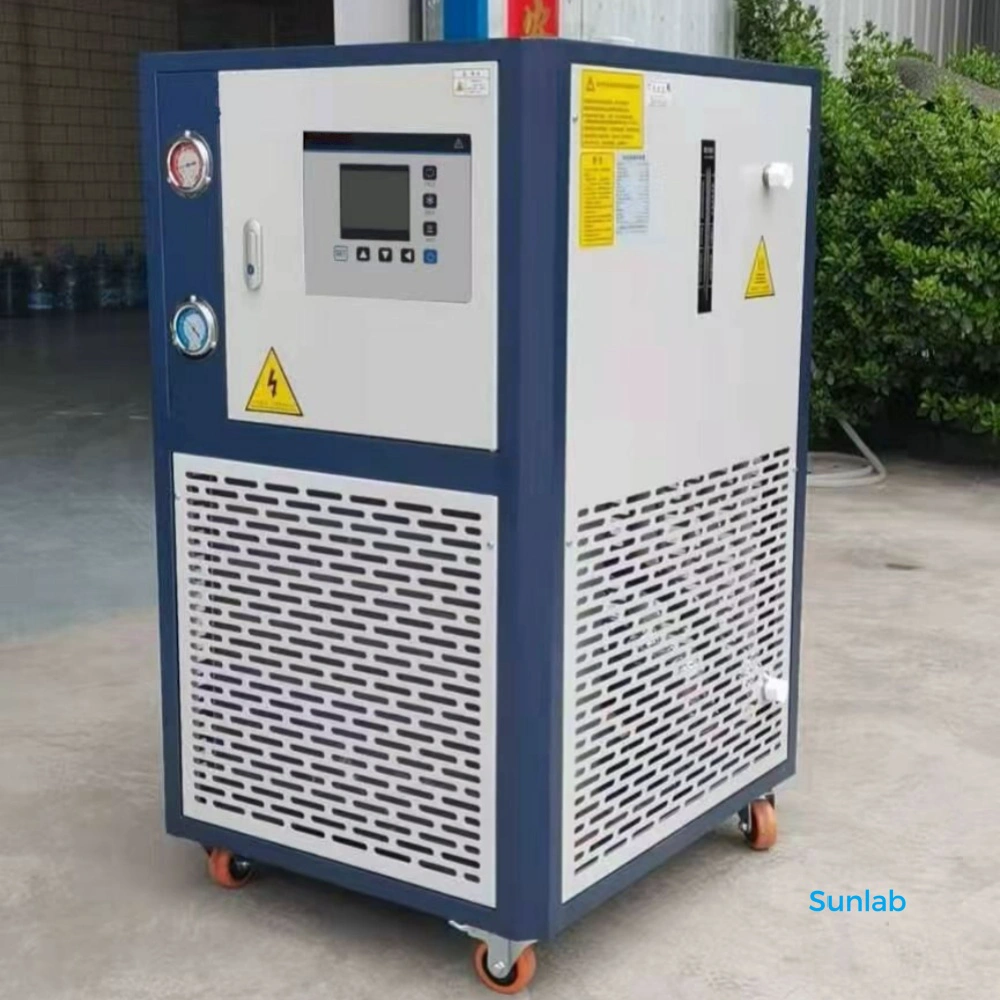

Lab High Low Temperature Circulating Bath

High Low Temperature Circulating Description

Laboratory-Grade Dynamic Constant Temperature Control System.

Hot And Cold/High Efficiency Cycle.

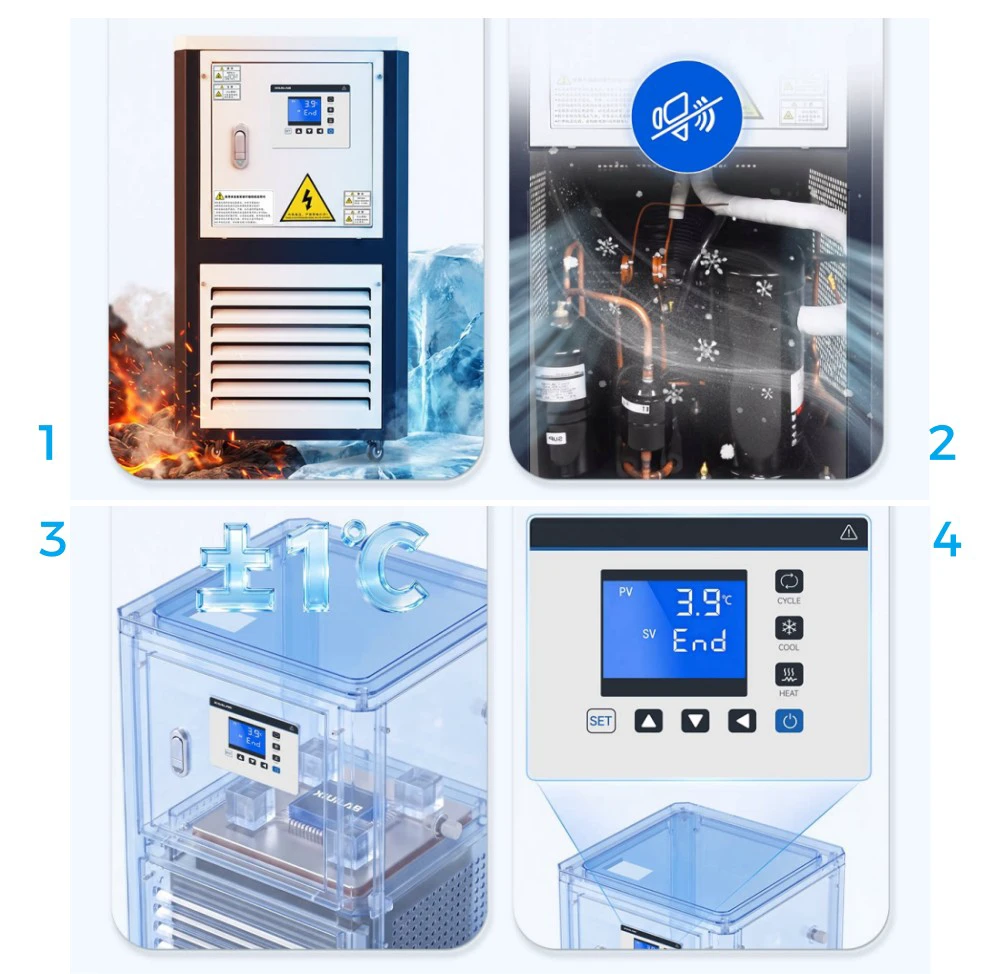

6 Major Functions:

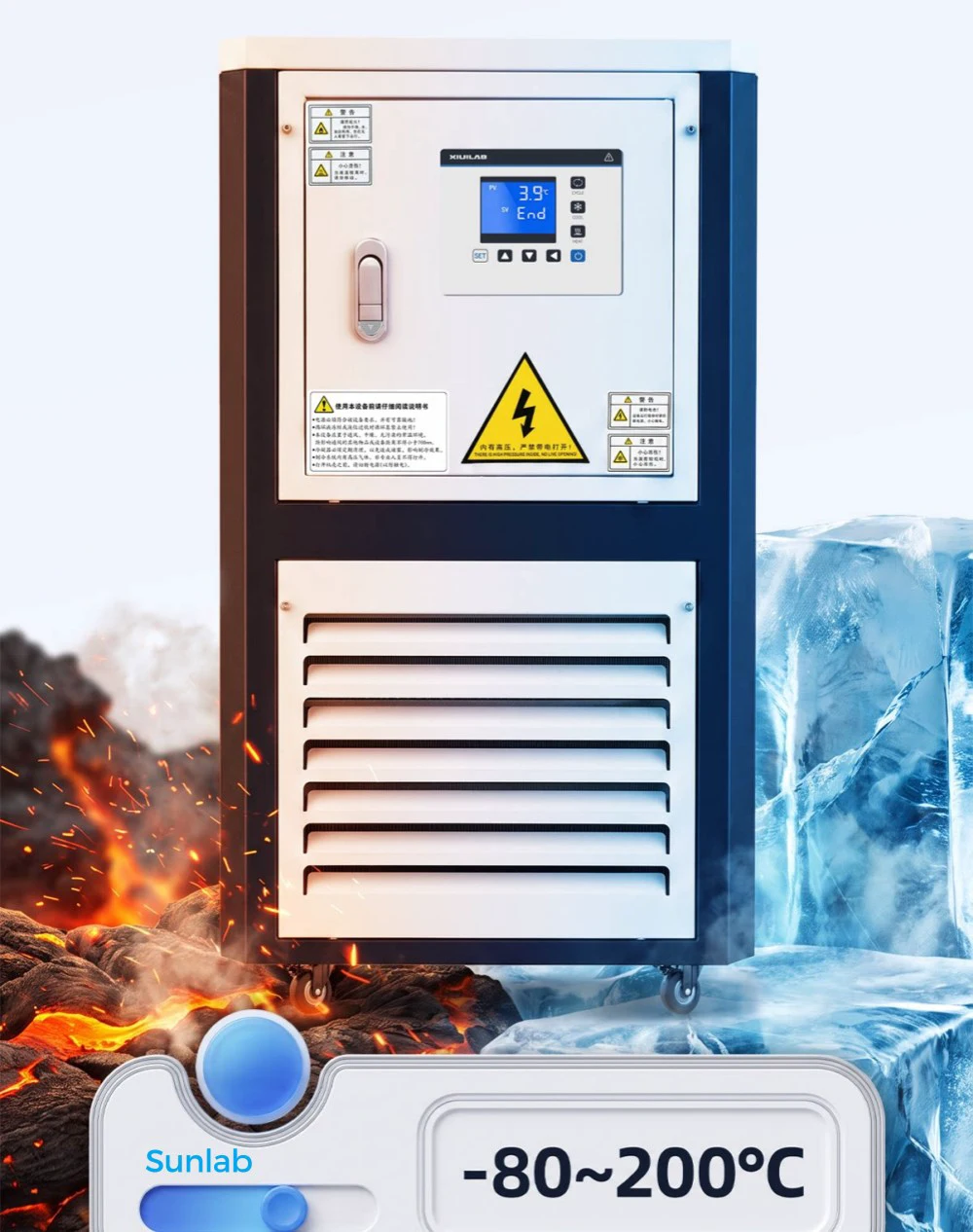

1. One-click switching between heating/cooling, temperature control range -80°C~+200°C.

2. Fully enclosed compressor, fast cooling and low noise.

3. PID intelligent temperature control, accurate up to ±1°C.

4. Ultra-clear LCD screen, easy to operate and clear display.

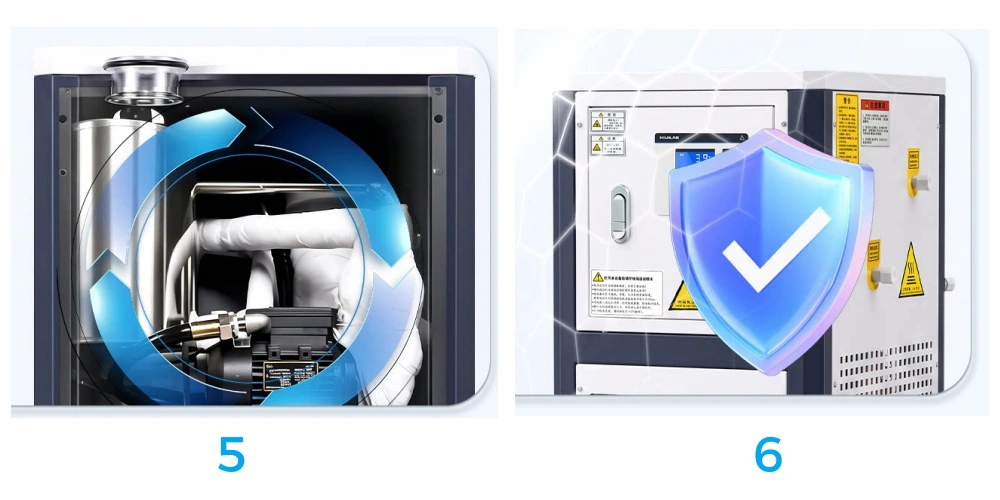

5. Upgrade the sealed liquid storage tank to save energy and protect the environment.

6. Security protection.

Multiple protections against leakage, delayed overload, overheating, etc.

Widely used to meet various experimental needs.

Widely used in petroleum, chemical industry, metallurgy, biochemistry, Physical property testing and chemical analysis, etc.

Product Video

Technical Specifications / Model Tables

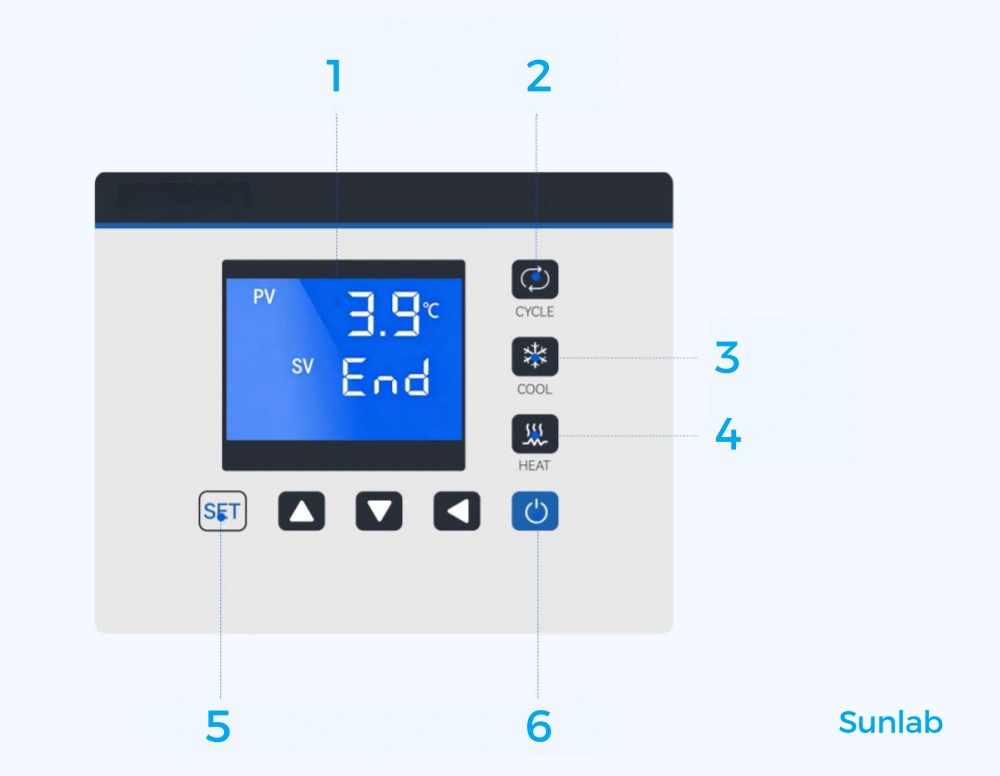

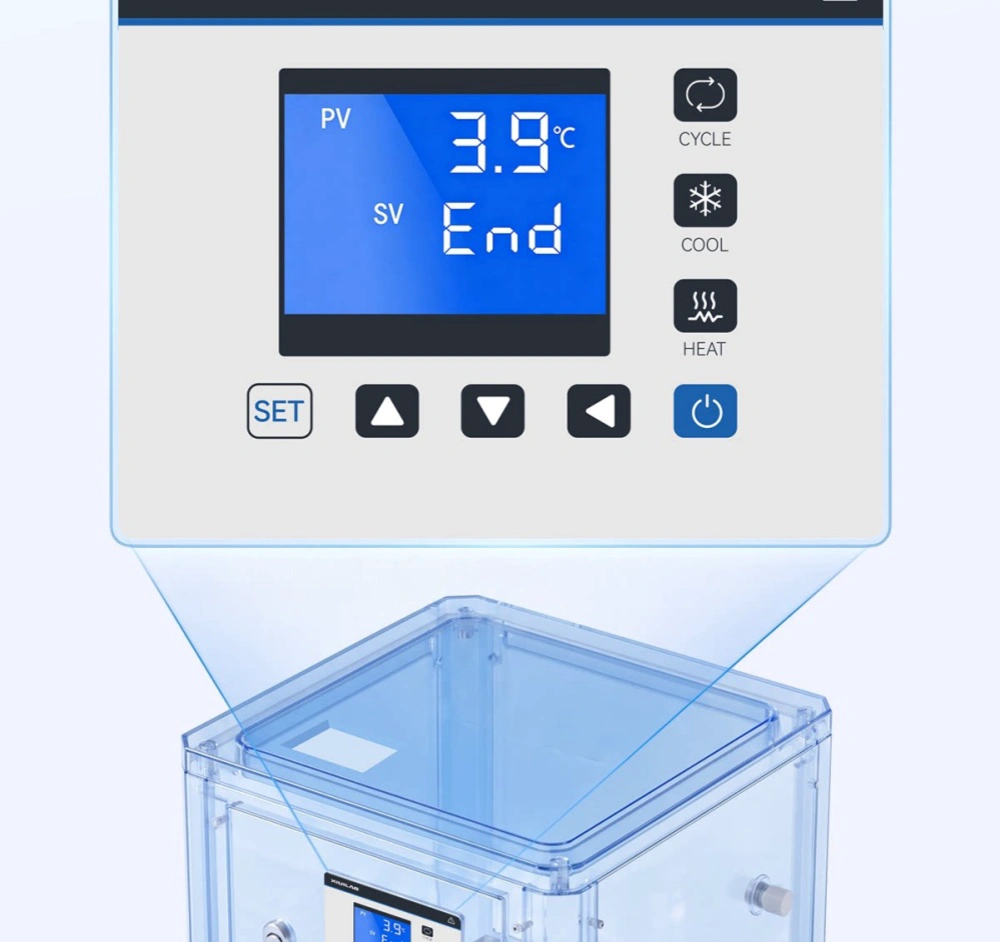

1. Digital display window

2. Cycle button

3. Cooling button

4. Heating button

5. Setting button

6. Power button

XU-GDW Series

Temperature control switching system, one-click switching of heating and cooling,

Temperature control range -80°C~200°C.

Intelligent temperature control high-definition LCD display,

PID intelligent temperature control technology and LCD screen make operation more convenient.

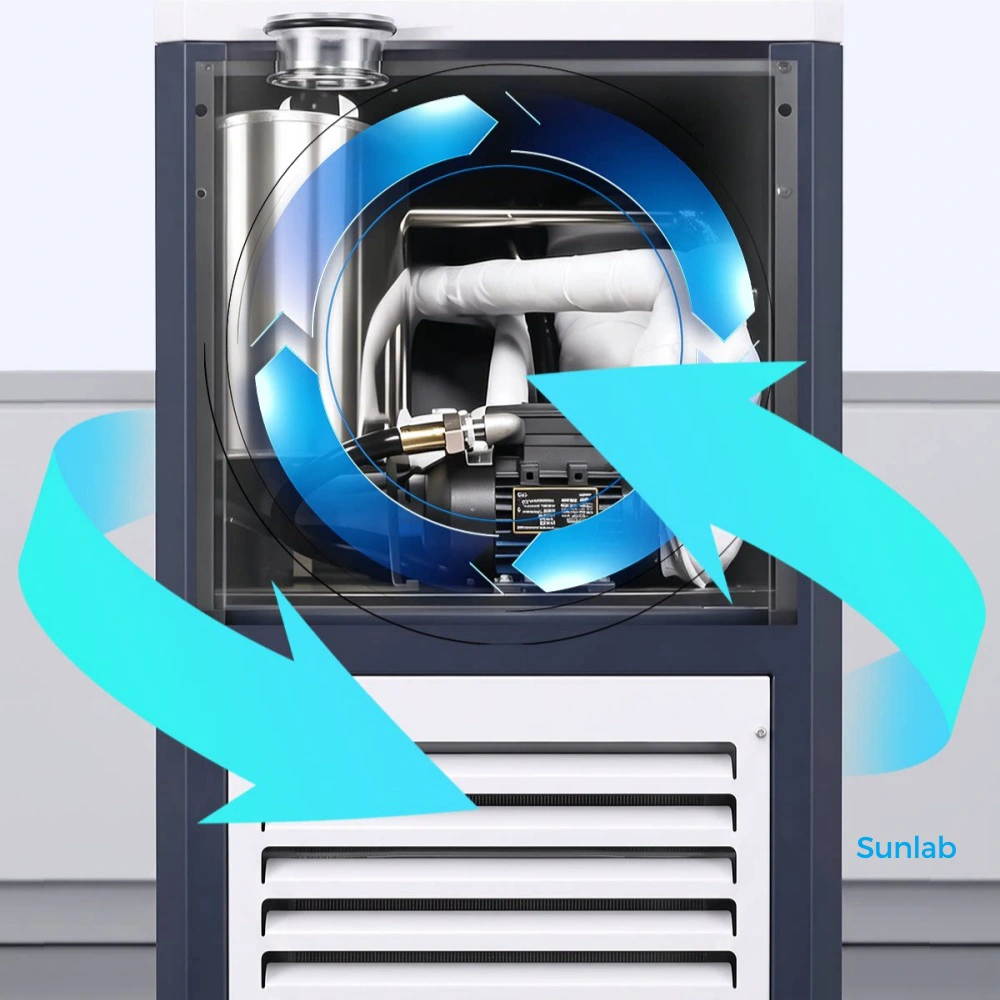

Closed cycle is efficient and convenient,

The circulation efficiency is high, and the cooling and heating are fast and efficient. There is no need to replace the circulating medium again during the experiment.

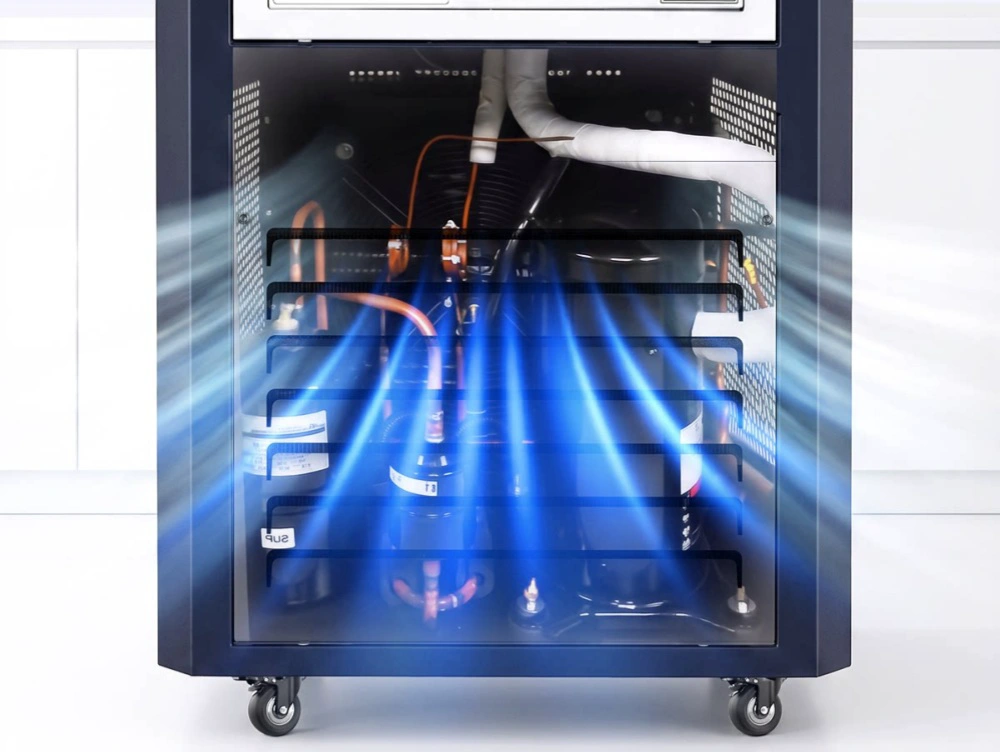

The cooling system is efficient and energy-saving.

Air-cooled rapid cooling device can quickly reduce high-temperature media to room temperature.

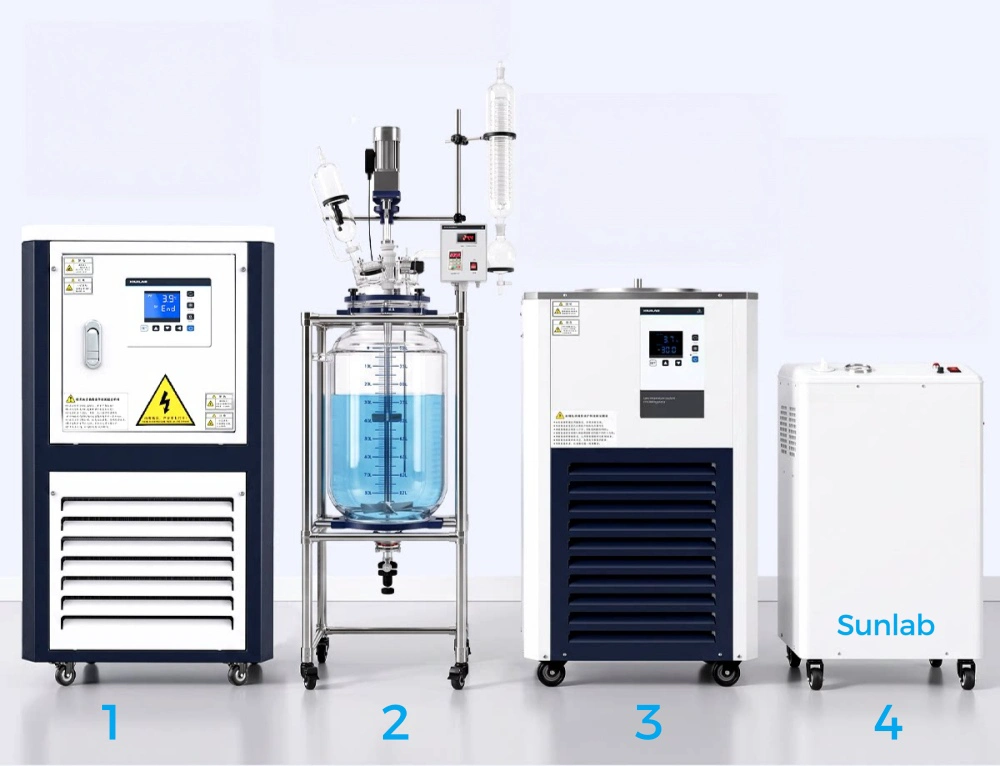

Combinations and uses

1. High and low temperature integrated machine

One-click switching between heating and cooling, no need to change oil and no need to wait.

2. Double-layer glass reactor

3. Low-temperature refrigerant circulation pump

Rapid cooling of water vapor increases the recovery rate, and closed cycle refrigeration saves a large amount of cooling water resources.

4. Circulating water vacuum pump

Lower the boiling point, increase the evaporation rate, guide the gas to rise, and increase the recovery rate.

Product Overview

Laboratory High and Low Temperature Circulating Bath

A laboratory high and low temperature circulating bath is a precision temperature control system that integrates heating, cooling, and circulation functions. It is primarily used to supply a temperature-controlled circulating fluid to laboratory equipment such as reaction vessels, rotary evaporators, and molecular distillation systems, enabling precise temperature regulation and efficient heat transfer.

Working Principle

The system combines a compressor-based refrigeration unit with an integrated heating system to achieve both cooling and heating. A PT100 temperature sensor continuously monitors the fluid temperature, while the control system maintains a temperature control accuracy of ±1°C. A circulation pump delivers the heat transfer fluid to external equipment at a flow rate of 40–42 L/min and a pump head of 6–28 m, creating a closed-loop temperature control system. Depending on the model, the operating temperature range can cover -80°C to 200°C.

Applications

Laboratory high and low temperature circulating baths are widely used in chemical synthesis, including low-temperature reactions and high-temperature reflux; pharmaceutical research and development, such as temperature-controlled crystallization; materials testing, including high- and low-temperature aging tests; new energy battery testing; and university research laboratories. Available bath capacities of 5–100 L can accommodate experimental requirements of different scales.

High and Low Temperature Circulating Bath Selection Guide

When selecting a laboratory high and low temperature circulating bath, consider the temperature range required for your application. Deep-cooling models operating from -30°C to -80°C are suitable for low-temperature reactions, while high-temperature operation up to 200°C is suitable for heating and reflux applications. Heating and cooling power, typically ranging from 4,000 to 20,000 W, affects the rate of temperature changes. Different refrigerants, such as R22, R404A, and R23, are used for different temperature ranges and system designs. It is also important to ensure that the circulation pump's flow rate and pump head are suitable for the external equipment and the flow resistance of its piping. Safety features such as overload protection and liquid-level alarms should also be considered.

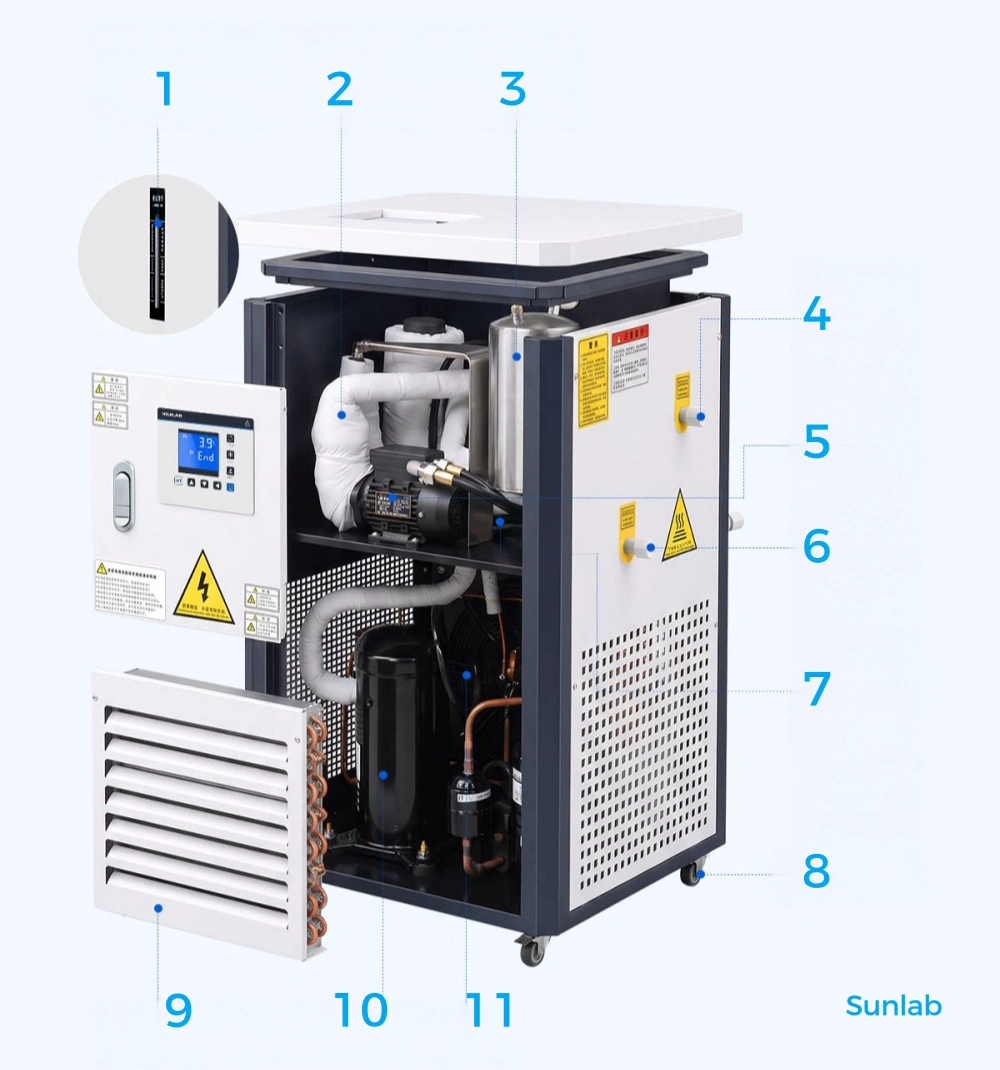

Temperature Circulating Bath Product Detail

1. The LCD screen displays clearly and is easy to operate.

2. The sealed filling port is made of 304 stainless steel, which is corrosion-resistant and durable.

3. Liquid inlet/outlet.
   Imported anti-corrosion and corrosion-resistant thermal fluid made of stainless steel.

4. Liquid level indication

The oil level in the reservoir can be observed through this window to prevent low liquid level experiments from damaging the instrument.

5. Panel power switch can control the start and stop of the instrument.

6. Spring door handle, durable and anti-corrosion, easy for inspection and maintenance.

7. Stainless steel liquid storage tank, anti-corrosion and corrosion-resistant, easy to clean.

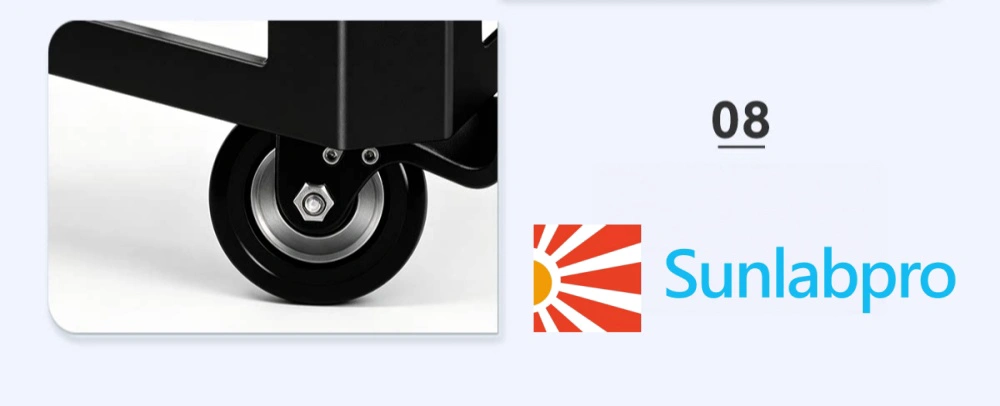

8. Universal wheels and roller-type feet are convenient for transportation, shock-proof and anti-slip.

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.

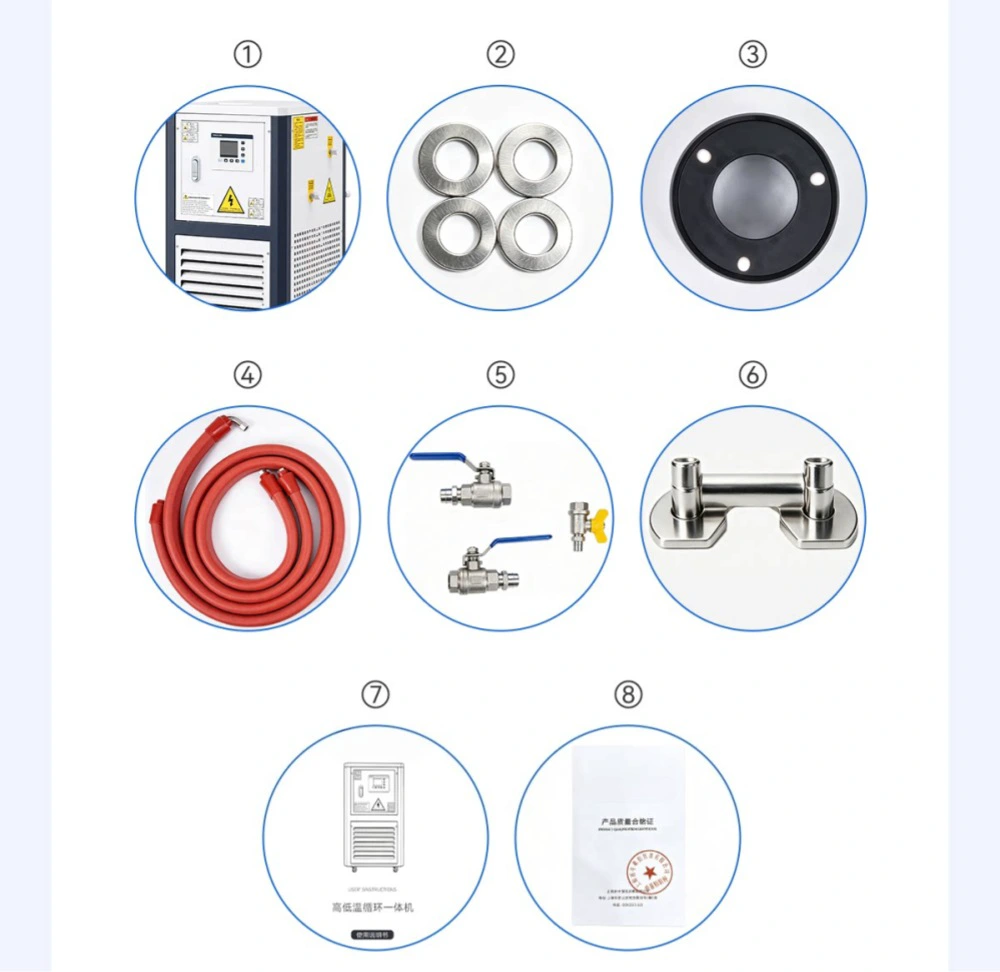

High Low Temperature Circulating Product Packaging

1. Circulating water bath host 5. Valve /3 pieces

2. Gasket 6. Key

3. Raw material belt 7. Product manual

4. Stainless steel hose 8. Product Certificate

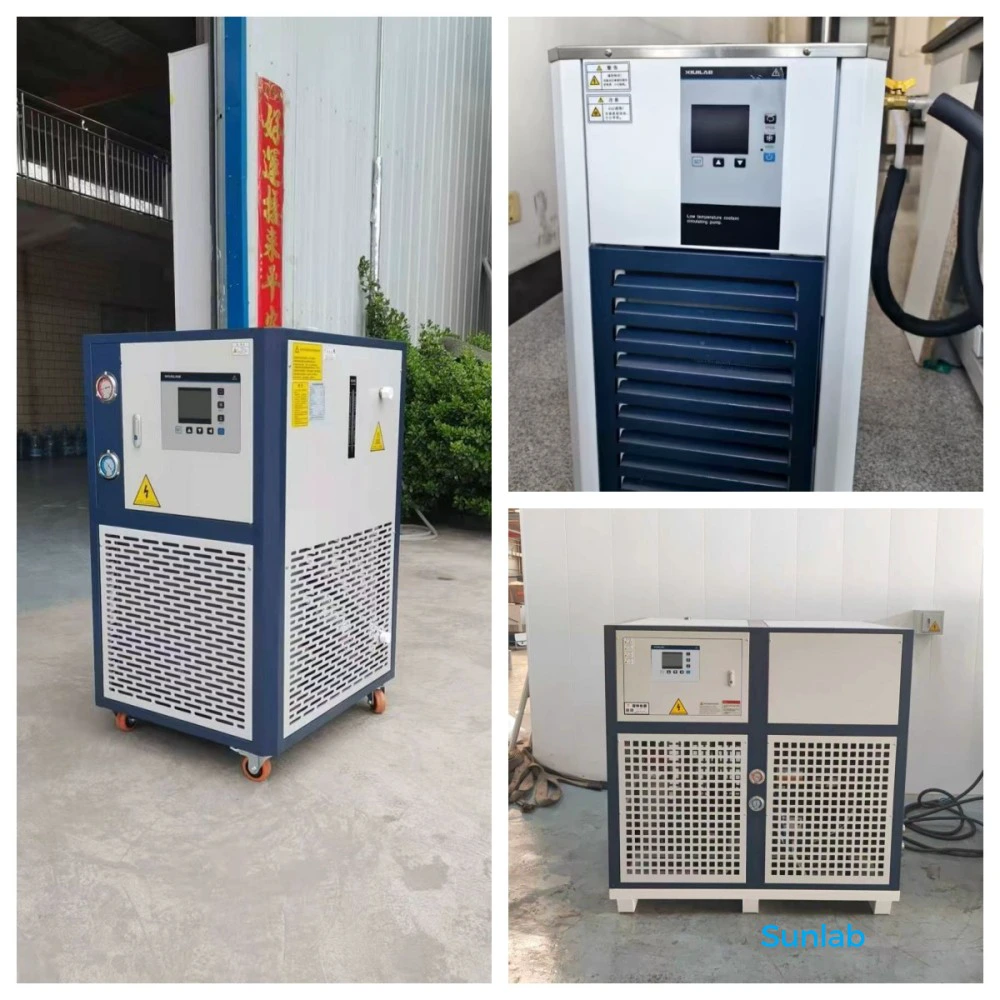

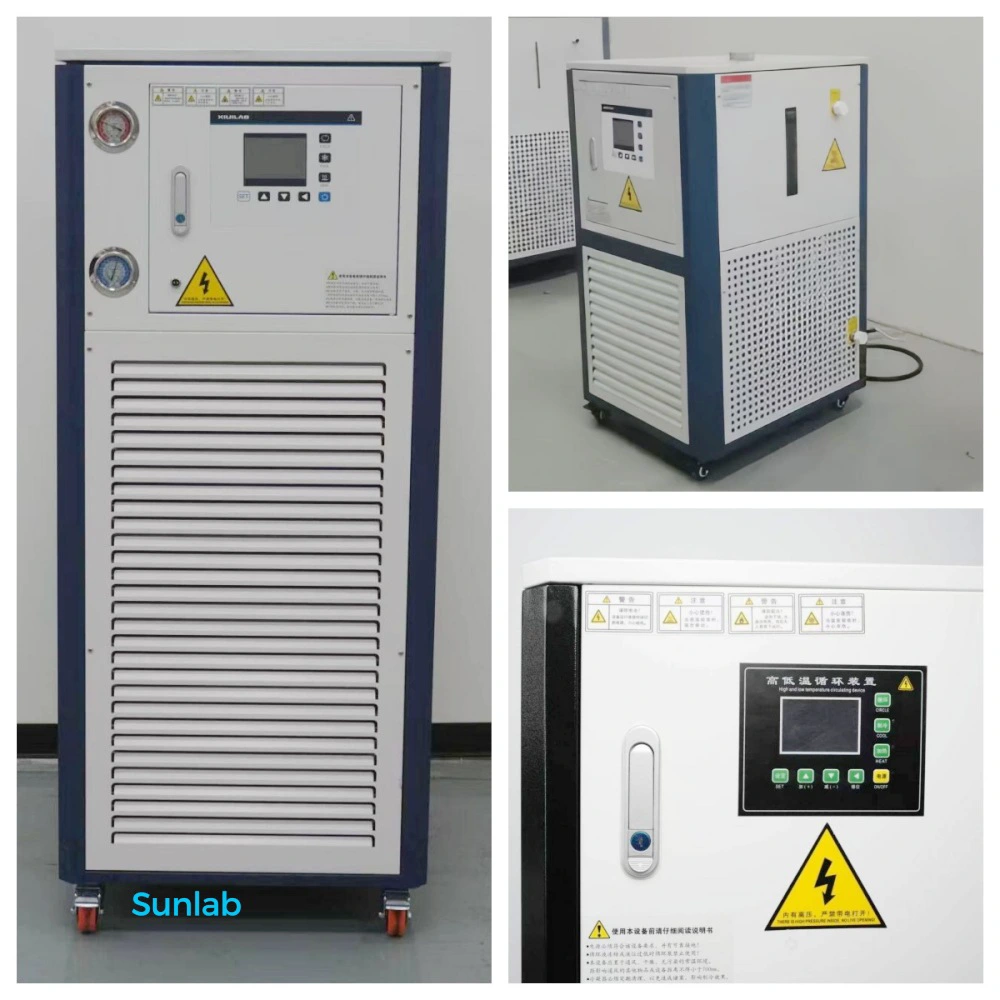

Customer Photos/ Customer Review
