Laboratory Magnetic Hotplate Stirrer

Laboratory Magnetic Stirrer Description

Magnetic Stirring volume 1-50L, speed 50-2000 rpm,

Built-in PT1000 sensor,

Heating temperature control timing, disk surface 300-350°C,

10 groups of memory programming, 485 remote control,

4-stage programmable control with forward and reverse rotation,

The whole body is splash-proof.

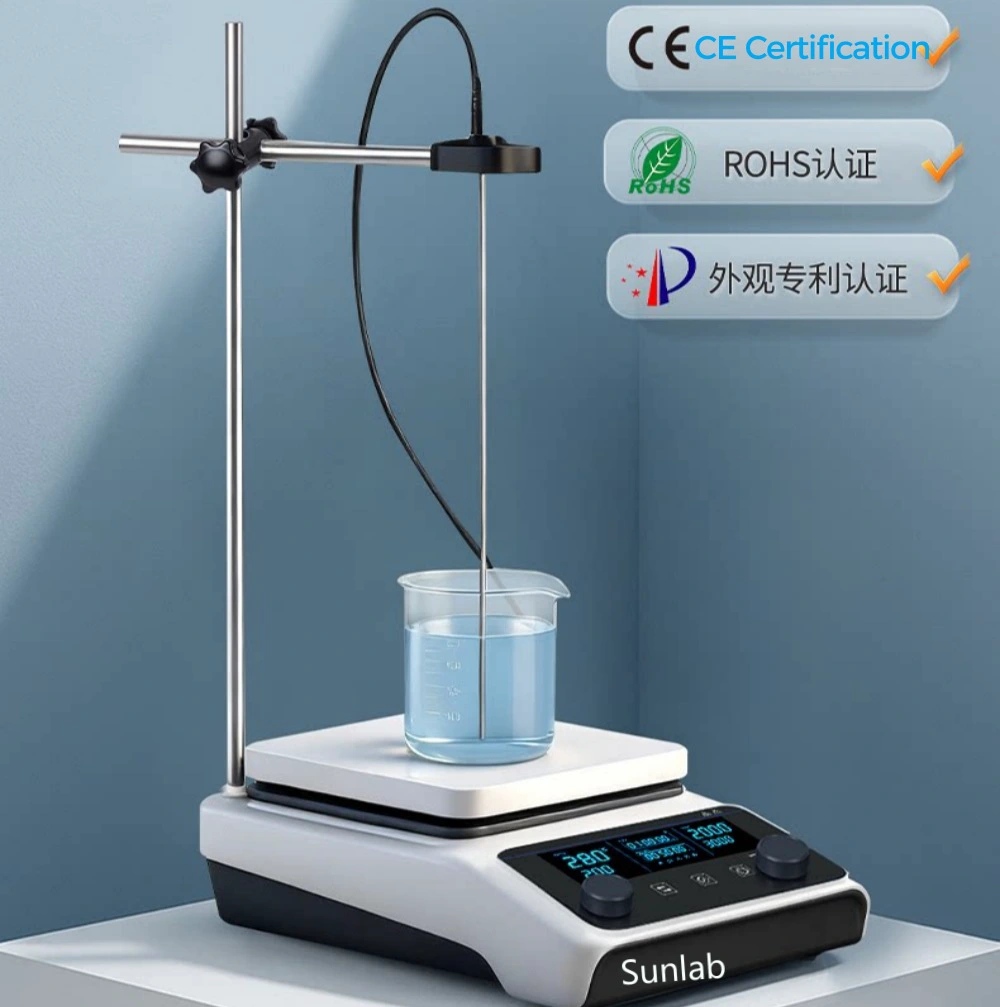

CE Certification, ROHS certification.

Magnetic Hotplate Stirrer Product Video

(Video in production)

Technical Specifications / Model Tables

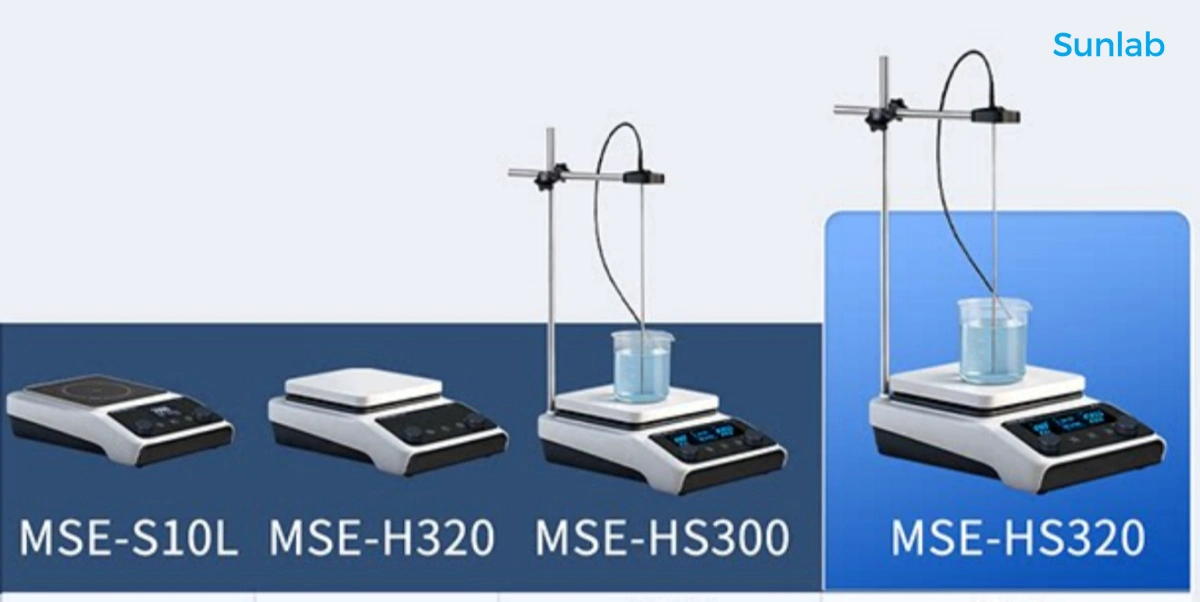

MSE Series

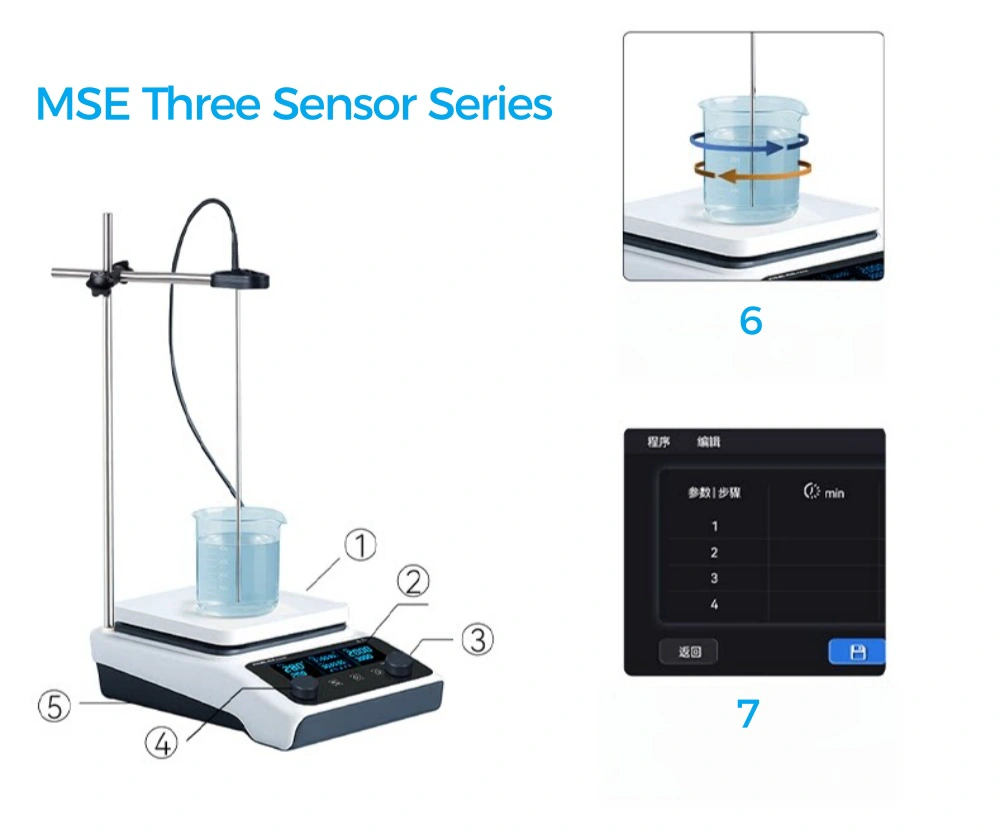

MSE Three Sensor Series

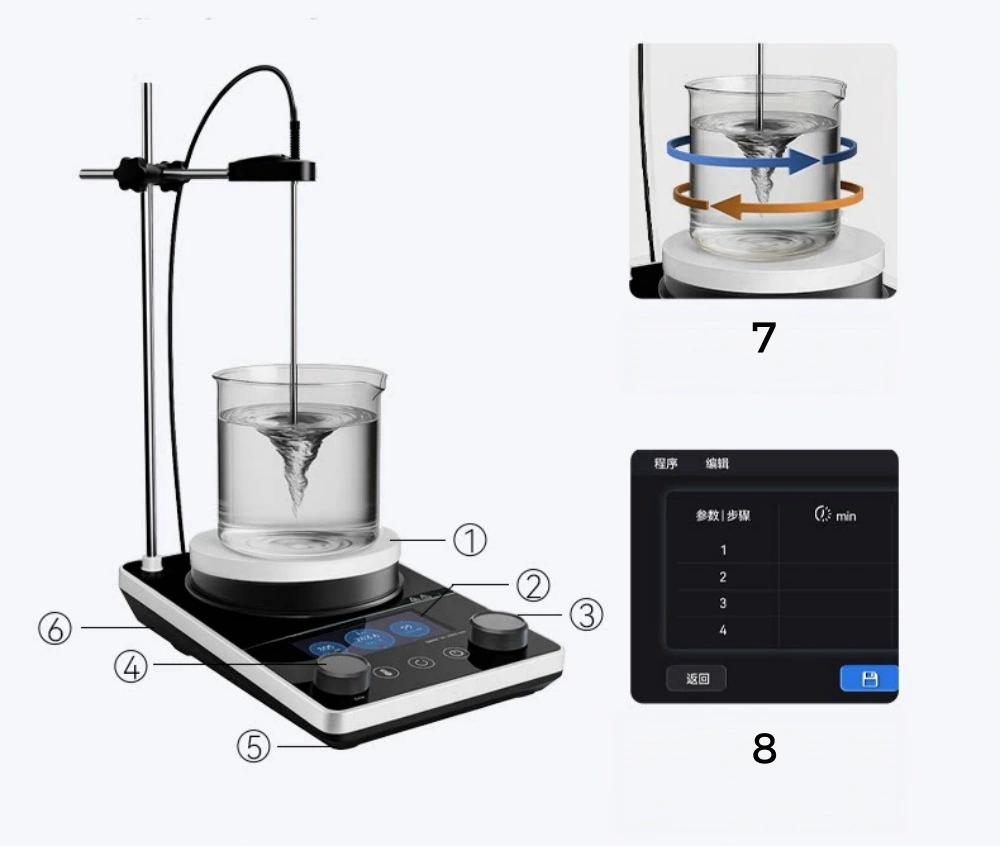

1. Heating plate.

2. 4.8-inch high-definition LCD screen.

3. Speed knob.

4. Temperature adjustment knob.

5. Shock absorbing feet.

6. The rotation can be stopped in the middle of forward and reverse rotation to achieve intermittent stirring.

7. 1 set of memory programs. Each program contains 30 segments of program control. Each segment can be set to forward and reverse.

3 Sensors, Automatic switching, higher accuracy,

Built-in PT1000*1+external PT1000*1, built-in NTC*1.

Speed: 100-2000rpm, high speed, strong power.

Forward and reverse timing.

Timing range: 99h59min, tempered glass operation panel.

MS-HS Series

1. Heating plate.

2. 3.99-inch high-definition LCD screen.

3. Speed knob.

4. Temperature adjustment knob.

5. Shock absorbing feet.

6. All-aluminum alloy body.

7. The rotation can be stopped in the middle of forward and reverse rotation to achieve intermittent stirring.

8. 10 sets of memory programs, each program contains 4 segments of program control, and each segment can be set to forward and reverse.

MS-HS Series

Triple high-precision sensors.

High-precision sensor PT1000*2.

High-precision sensor NTC*1.

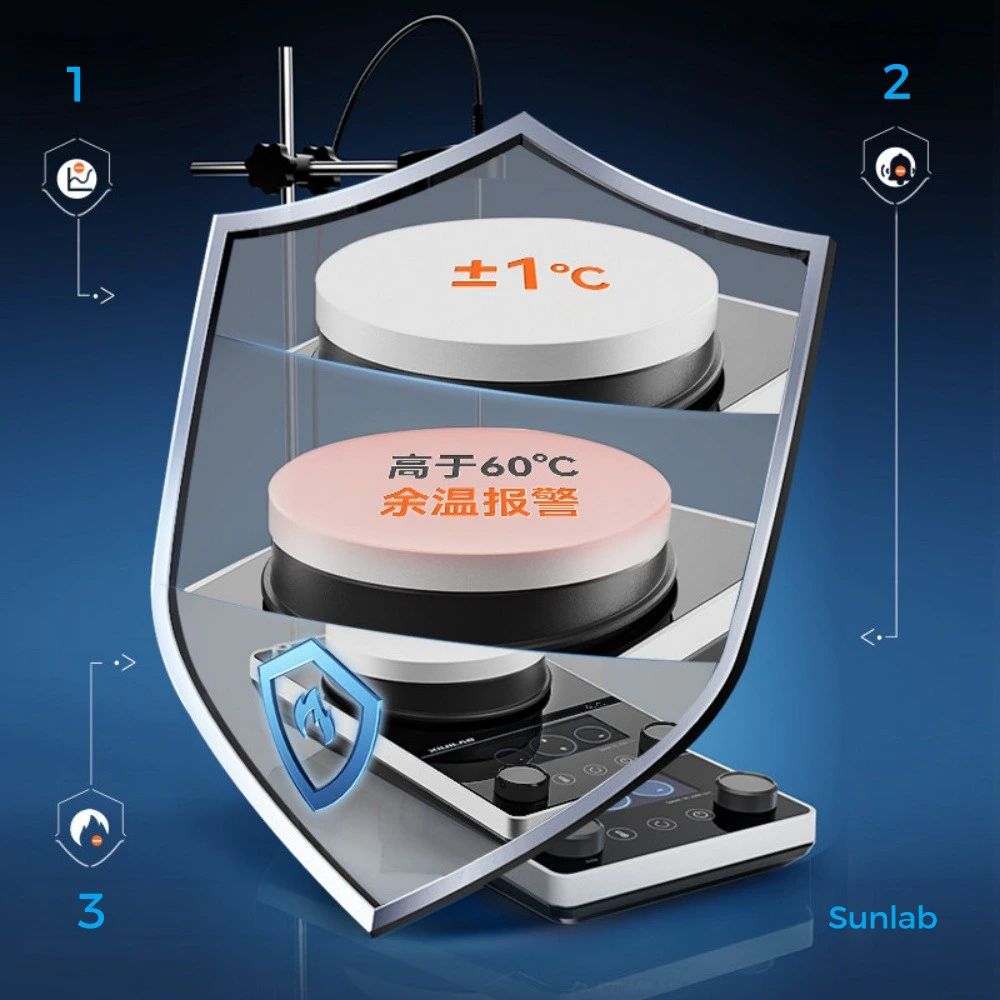

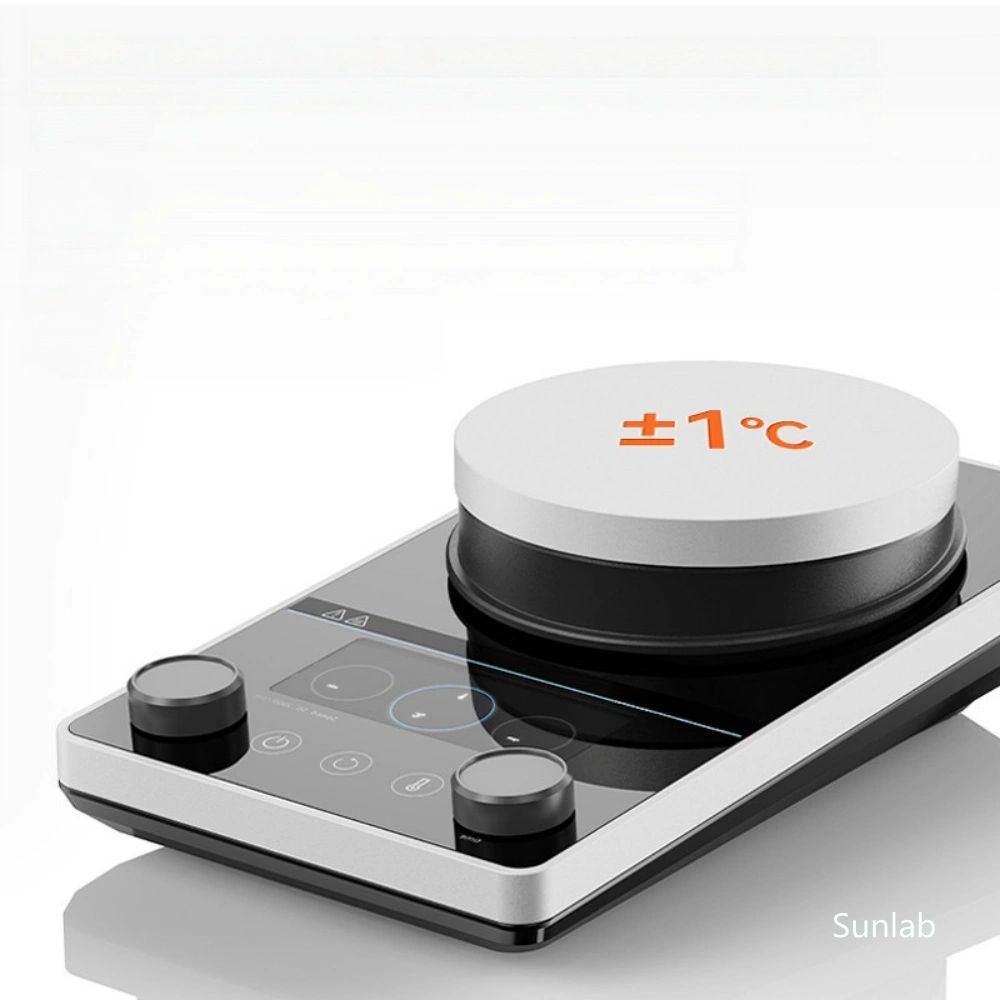

1. High temperature control accuracy, disk surface accuracy ±1°C.

2. Residual temperature alarm, residual temperature indication above 60°C.

3. Over-temperature power-off protection, automatic power-off protection if the body temperature is too high.

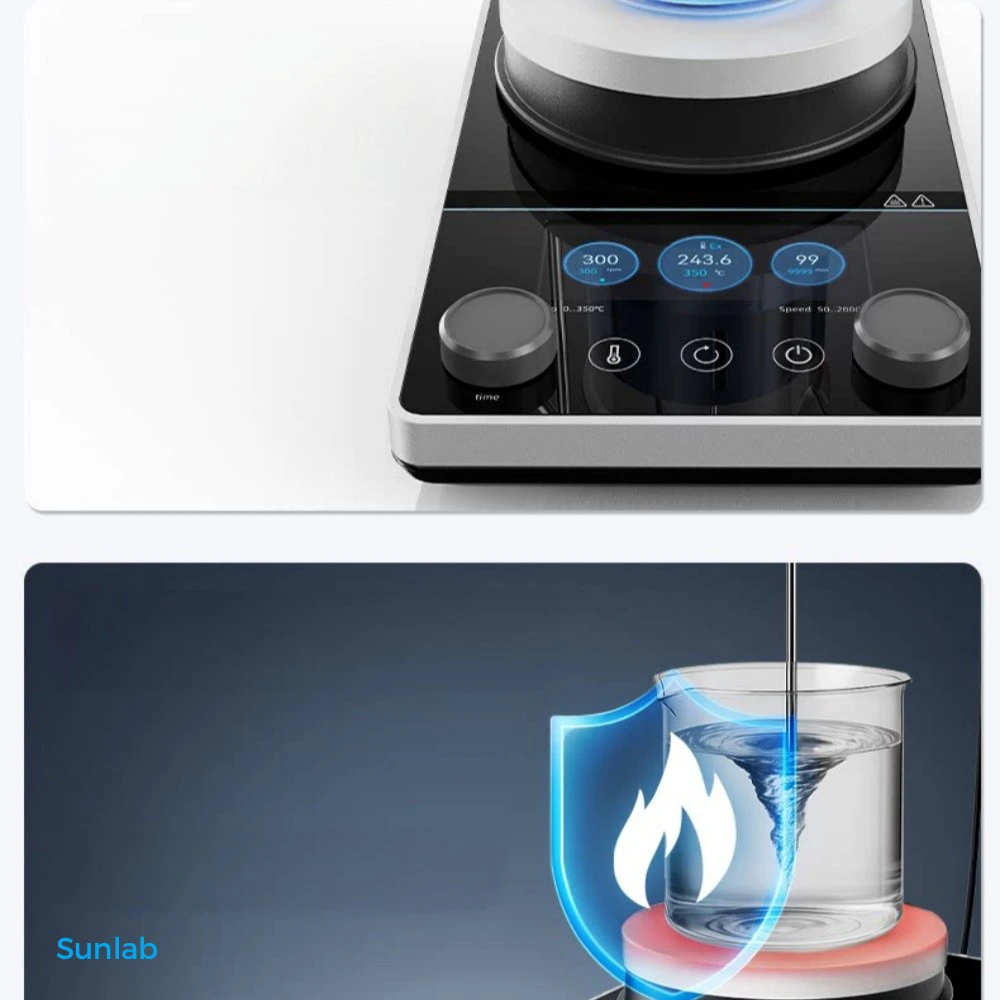

MS-HS350 Pro Series

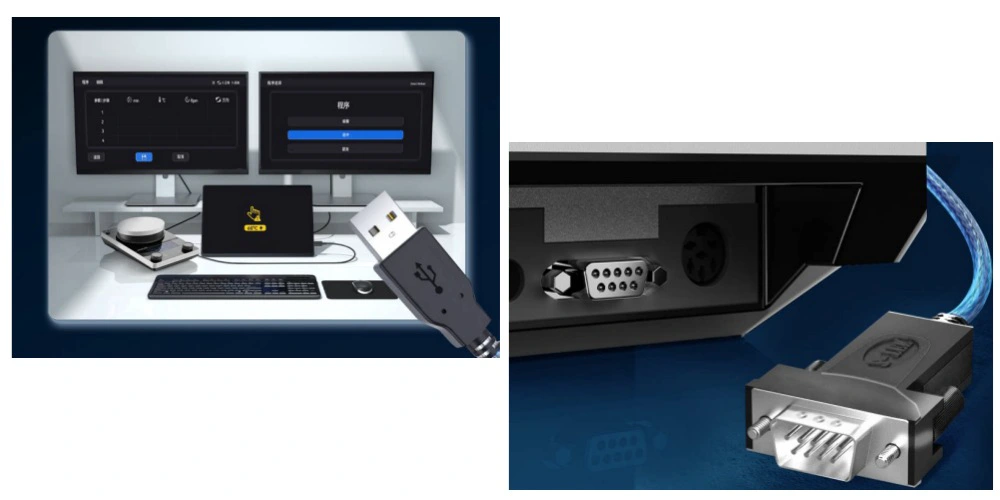

485 remote control, long-distance transmission + multi-point connection.

3 Sensors

Automatic switching, higher accuracy,

Built-in PT1000*1+external PT1000*1, built-in NTC*1

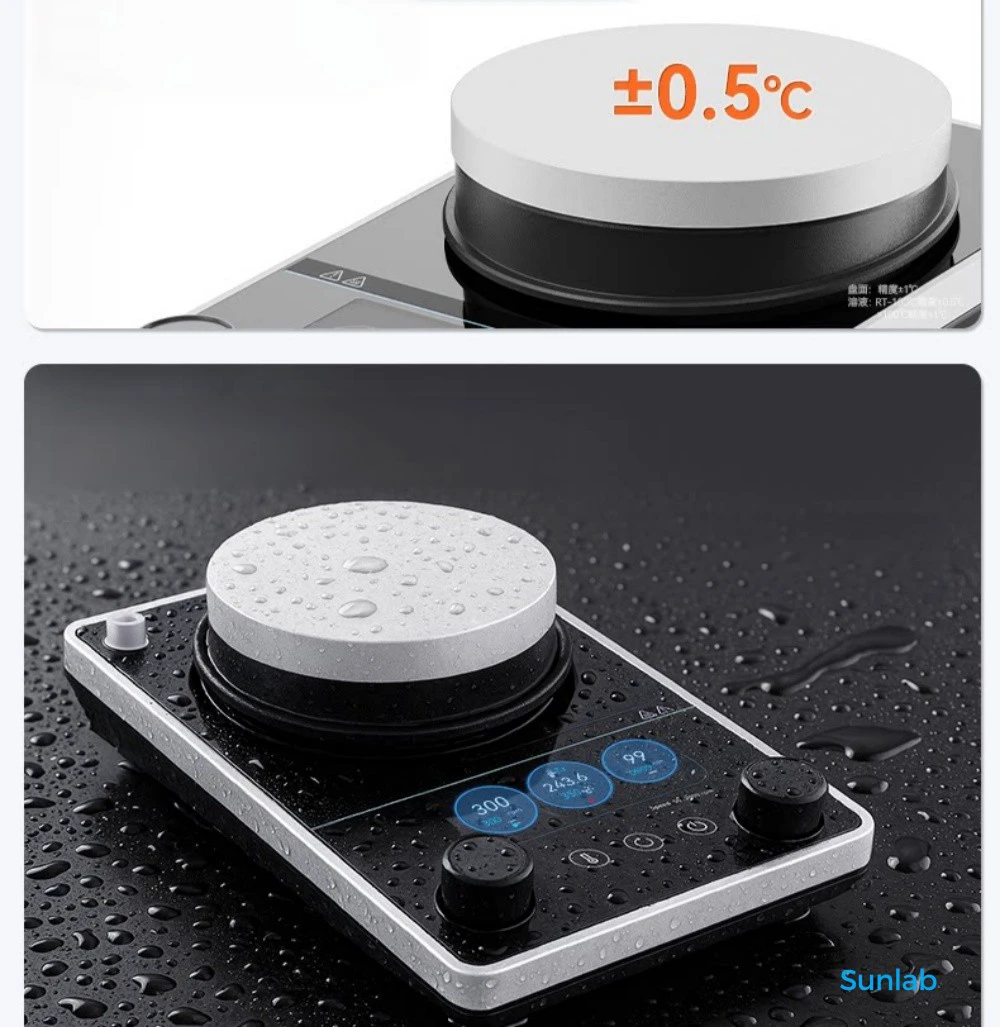

The entire body is splash-proof and durable, so you don’t have to worry about the solution pouring.

3.99-inch high-definition LCD screen, the content is very clear.

Over-temperature protection, automatic power off when the set temperature exceeds 3°C.

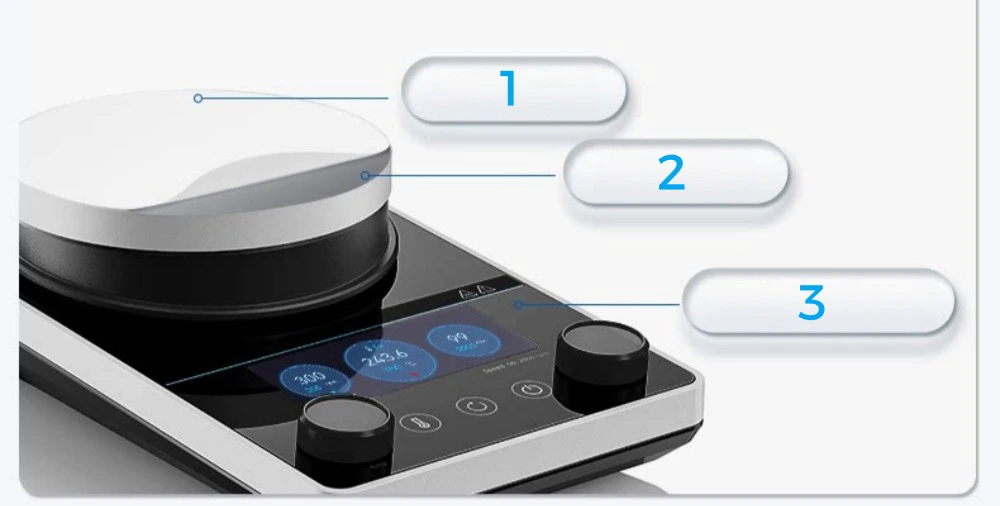

Ceramic disk/glass panel, high temperature resistance and corrosion resistance.

1. Ceramic coating.

2. Thickening alloy.

3. Tempered glass panel.

Product Overview

Laboratory Magnetic Stirrer

A laboratory magnetic stirrer is a versatile instrument used for liquid mixing, dissolution, suspension, and homogenization of reaction mixtures. It uses a magnetic stir bar to mix liquids without direct mechanical contact, helping reduce contamination risks associated with mechanical seals. Magnetic stirrers are widely used in chemical, biological, pharmaceutical, and materials science laboratories.

Working Principle

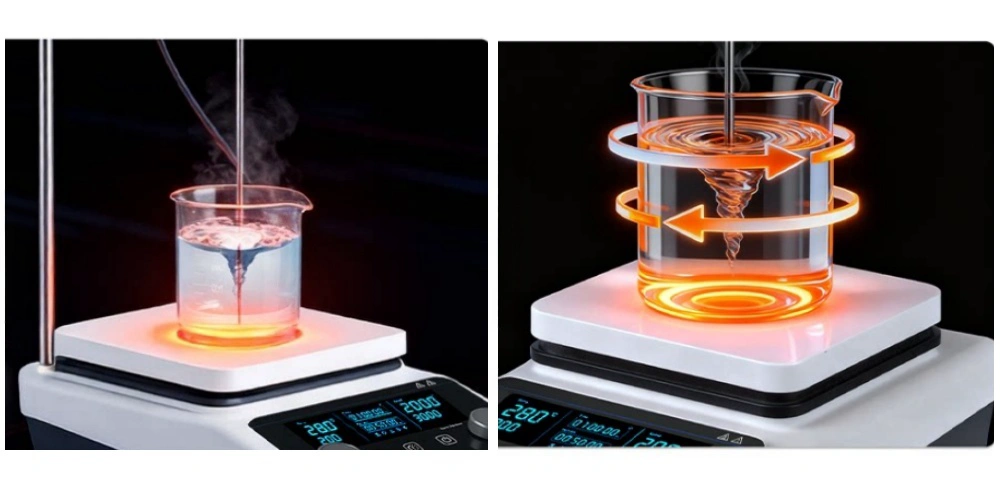

A motor rotates a magnet located beneath the stirring plate, driving the magnetic stir bar inside the container to rotate and generate fluid circulation for uniform mixing. Many models feature an integrated heating function and use a built-in PT1000 temperature sensor for precise temperature control. The maximum heating plate temperature can reach 300–350°C, depending on the model. Combined with a timer function, these instruments provide convenient simultaneous heating and stirring.

Applications

Laboratory magnetic stirrers are suitable for a wide range of applications, including chemical synthesis (reaction mixture mixing and catalyst dispersion), biopharmaceutical research (culture medium preparation and cell suspension), environmental monitoring (water sample mixing), food testing, and university teaching laboratories. They are particularly suitable for long-term, temperature-controlled stirring of small- to medium-volume samples.

Selection Guide

When selecting a laboratory magnetic stirrer, several factors should be considered. A stirring capacity of 1–30 L can accommodate applications ranging from small-scale experiments to pilot-scale work. A stepless speed range of 50–2,000 rpm allows adjustment for different liquid viscosities and mixing requirements. Memory programming with up to 10 program sets helps improve experimental repeatability, while RS485 remote control supports integration with automated systems. Some models offer reversible stirring to help prevent sediment accumulation. Other important considerations include heating power, stirring plate material (ceramic or stainless steel), and safety features such as overheat protection.

Sunlabpro has more than 10 years of experience supplying laboratory instruments from China. We support orders starting from one unit and provide reliable product quality. Competitive discounts are available for larger quantities.

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.

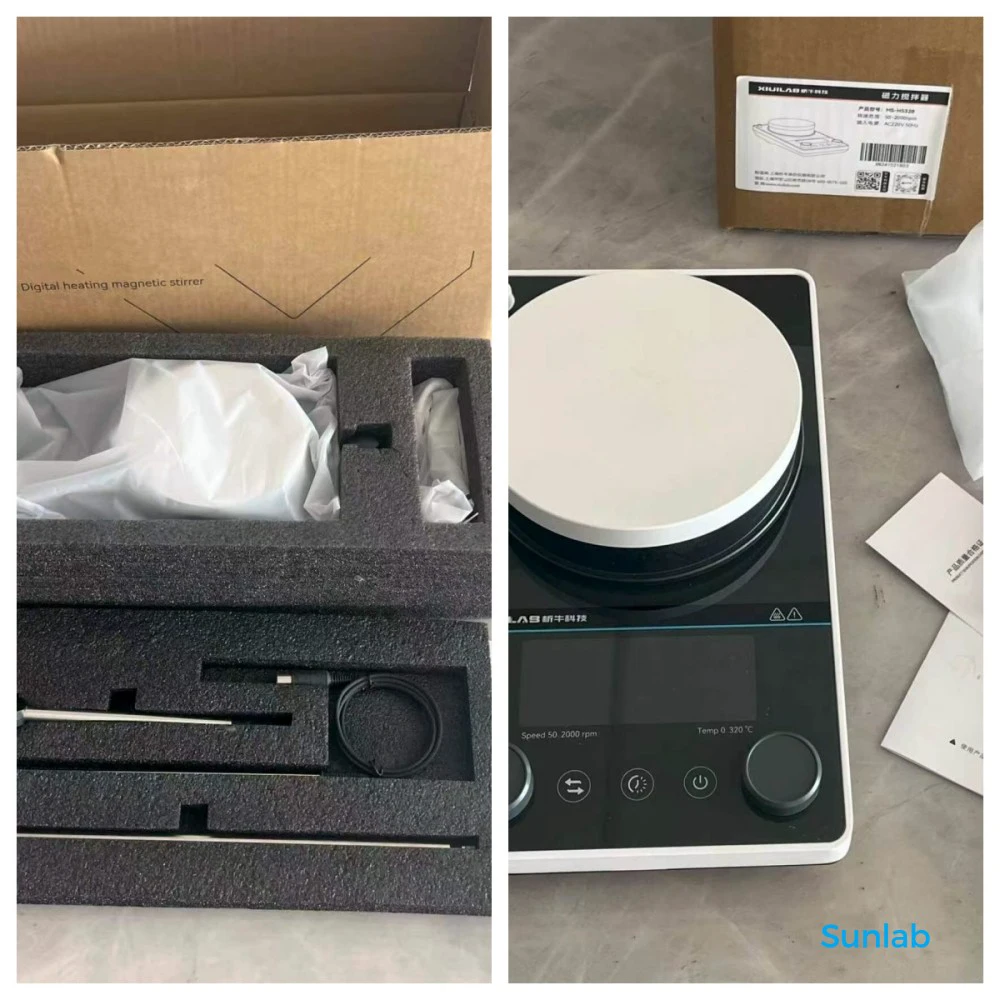

Lab Magnetic Hotplate Stirrer Product Packaging

Plastic Bag + Bubble Wrap + Carton.

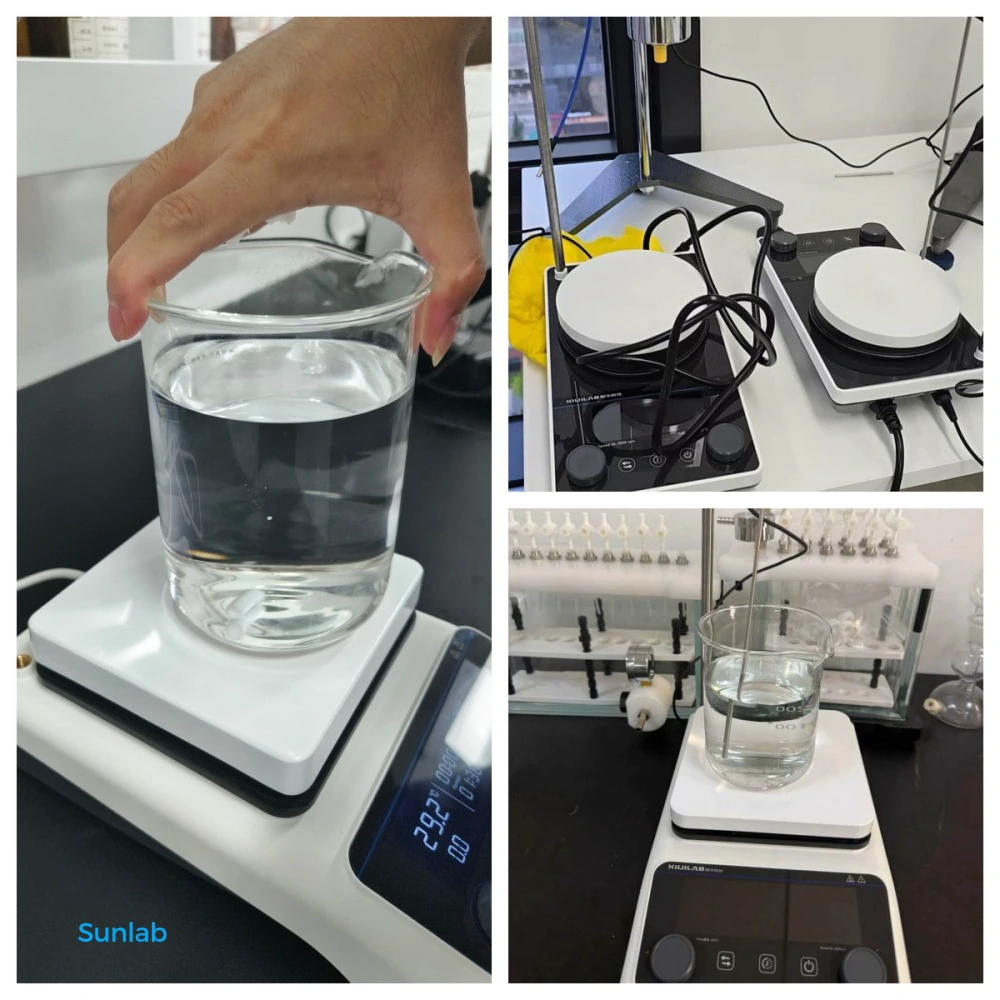

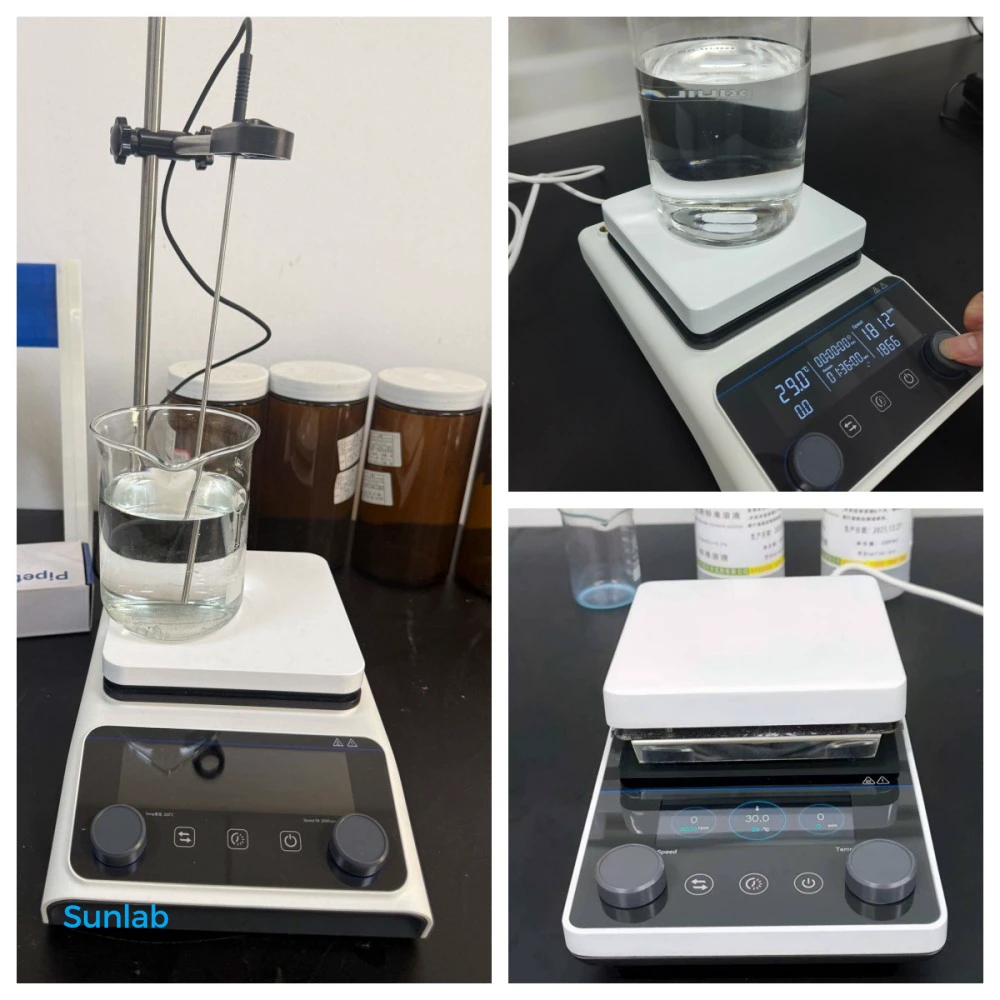

Customer Photos/ Customer Review

The laboratory purchased 20 heating magnetic stirrers at one time. The customer service was very professional and recommended suitable models based on the space on our experimental bench and the specifications of commonly used beakers.

Whether processing liquid samples or performing chemical reactions, the stirring effect is very uniform, extremely efficient, and the temperature control is also precise. It supports constant temperature stirring and the temperature error is controlled within ±0.5°C.

The running sound is very quiet, it does not shake when working, and it is stable even after being turned on for a long time. It is not easy to malfunction, which is quite good. A small disadvantage is that there is no free beaker.

The operation is very smooth, the speed adjustment range is wide, the magnet does not jump at low speeds, and the high-speed operation is also very stable. The digital speed display has clear readings and the stirring strength is sufficient, so that all types of aqueous solution samples can be mixed evenly.
