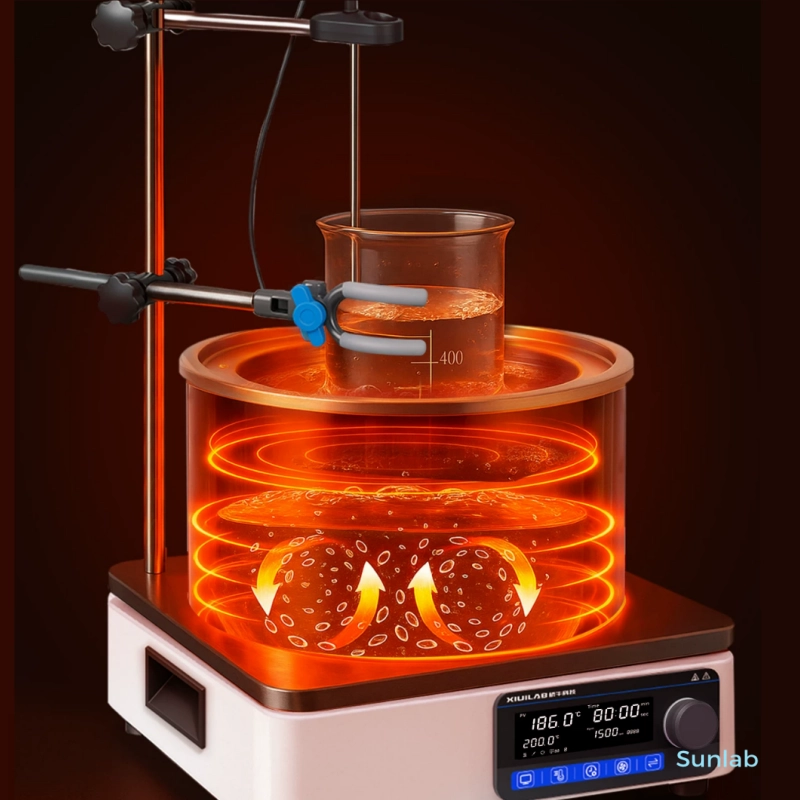

Laboratory Oil Bath

Laboratory Oil Bath Description

Laboratory Oil Bath With Ce Certification,

Temperature Control Accuracy ±1°C, Maximum Heating Temperature 300 Degrees.

Large Touch Lcd Screen,

Over-Temperature Protection, Dry Burning Prevention, Timing System.

Speed Timing, Maximum Speed 2600 Rpm,

Teflon Anti-Corrosion Coating, Corrosion-Resistant.

304 Stainless Steel Pot Body, Intelligent Brushless Motor Supports Forward And Reverse Rotation.

Features A 30-Step Program For Controlling Temperature, Time, And Rotation Speed.

Automatically Cuts Off Heating And Triggers An Alarm In The Event Of Temperature Anomalies.

Heat Insulation Panel To Retain Heat, Reduce Energy Loss, And Ensure Safety.

Oil Bath Product Video

Technical Specifications / Model Tables

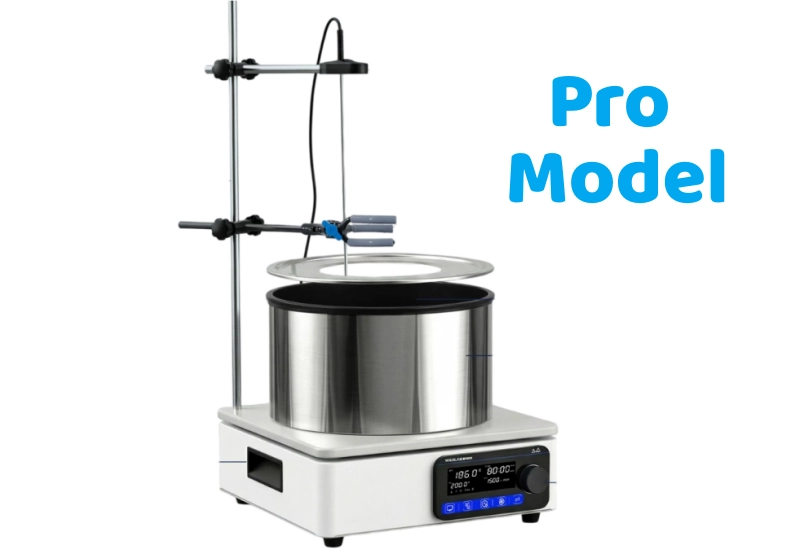

Pro Model

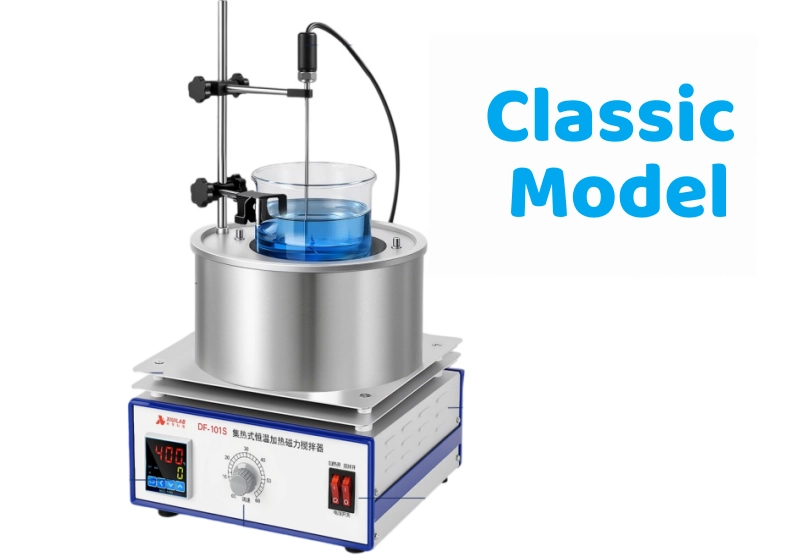

Classic Model

Product Overview

A laboratory oil bath is a high-temperature constant-temperature heating device that uses thermal oil as the heat transfer medium. It is mainly used for distillation, drying, concentration, and impregnation of chemicals or biological products. It can also be used for constant-temperature heating and various temperature-related experiments. Laboratory oil baths are commonly used in research laboratories in the fields of biology, genetics, pharmaceuticals, chemical engineering, environmental protection, and higher education.

The oil bath works by using an electric heating tube to heat the thermal oil inside the bath. The high specific heat capacity and good thermal conductivity of the oil help distribute heat evenly throughout the bath. A built-in temperature sensor continuously monitors the oil temperature, while the PID temperature control system automatically adjusts the heating power to maintain a stable and precise temperature. Some models are also equipped with a stirrer or circulation pump to further improve temperature uniformity.

Laboratory oil baths are widely used in chemical synthesis, including high-temperature condensation, polymerization, and reflux reactions; biopharmaceutical applications such as enzyme reactions and drug stability testing; materials science, including thermal aging tests and polymer processing; food quality testing, such as oil oxidation tests; and petrochemical applications, including oil sample pretreatment and viscosity measurements. They are particularly suitable for laboratory applications that require temperatures above 100°C together with precise temperature control.

When selecting a laboratory oil bath, several factors should be considered. The temperature range and accuracy should match the requirements of the experiment, with a typical temperature control accuracy of ±1°C. A 304 stainless steel inner chamber is preferred for its corrosion resistance and ease of cleaning. The appropriate bath capacity, typically ranging from 500 mL to 15 L, and the number and size of openings should be selected according to the number of samples and containers being used. Safety features such as dry-run protection and over-temperature alarms should also be considered.

Sunlab has more than 10 years of experience supplying laboratory instruments from China. We support orders starting from one unit and provide reliable product quality. Competitive discounts are available for larger quantities.

Oil Bath Product Detail

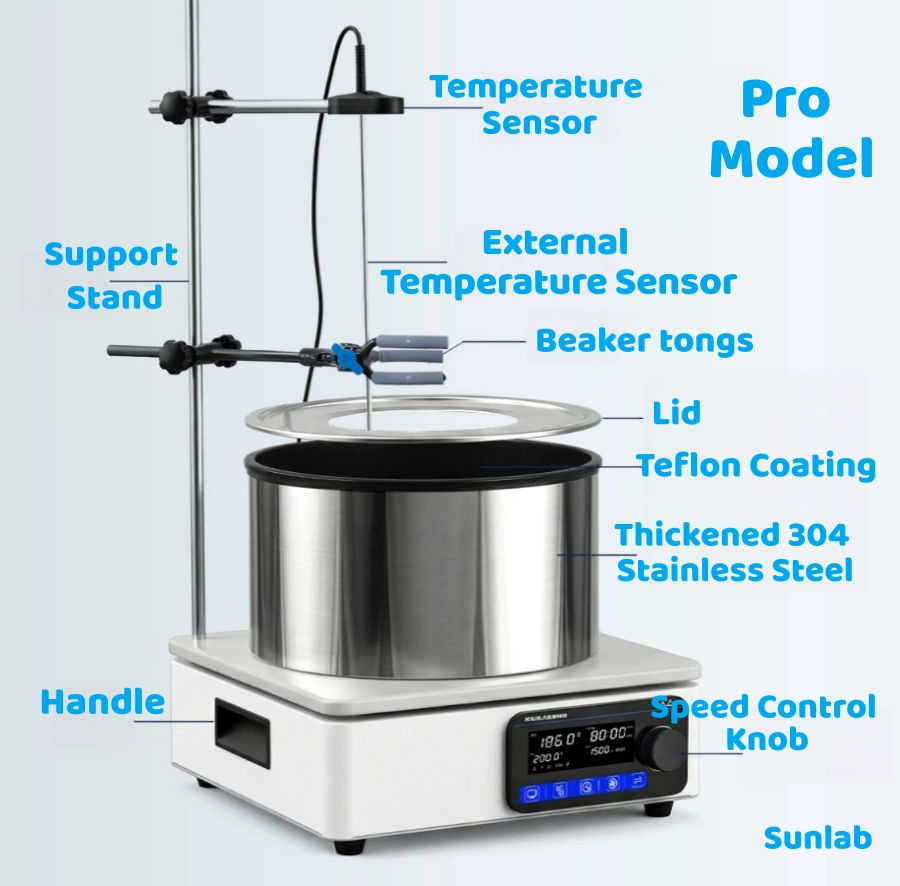

Pro Model Assembly Diagram

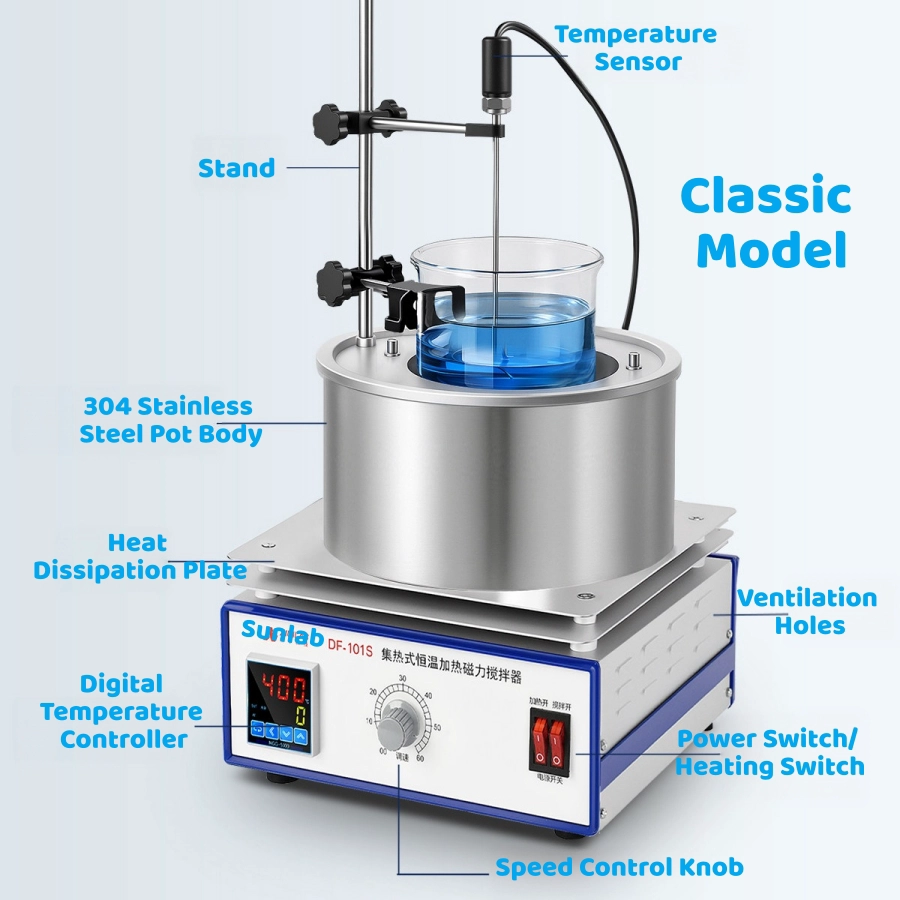

Classic Model Assembly Diagram

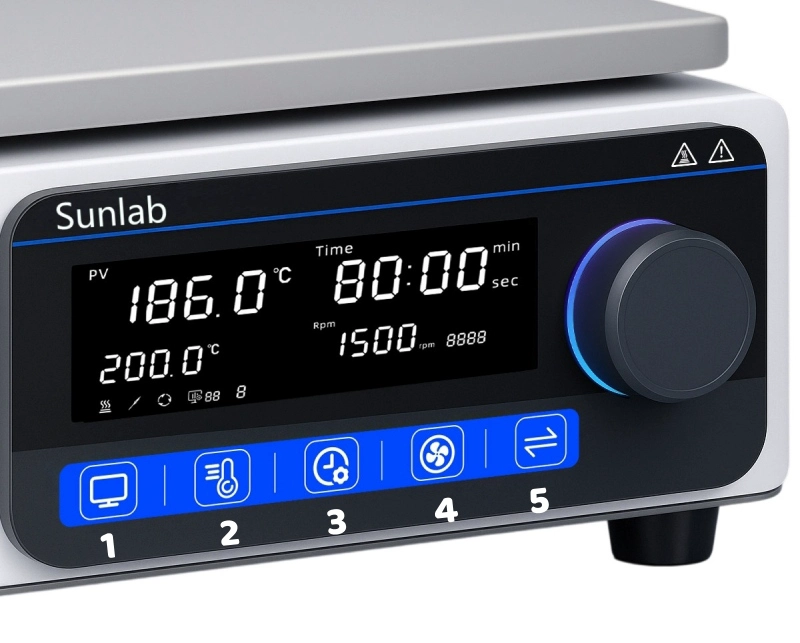

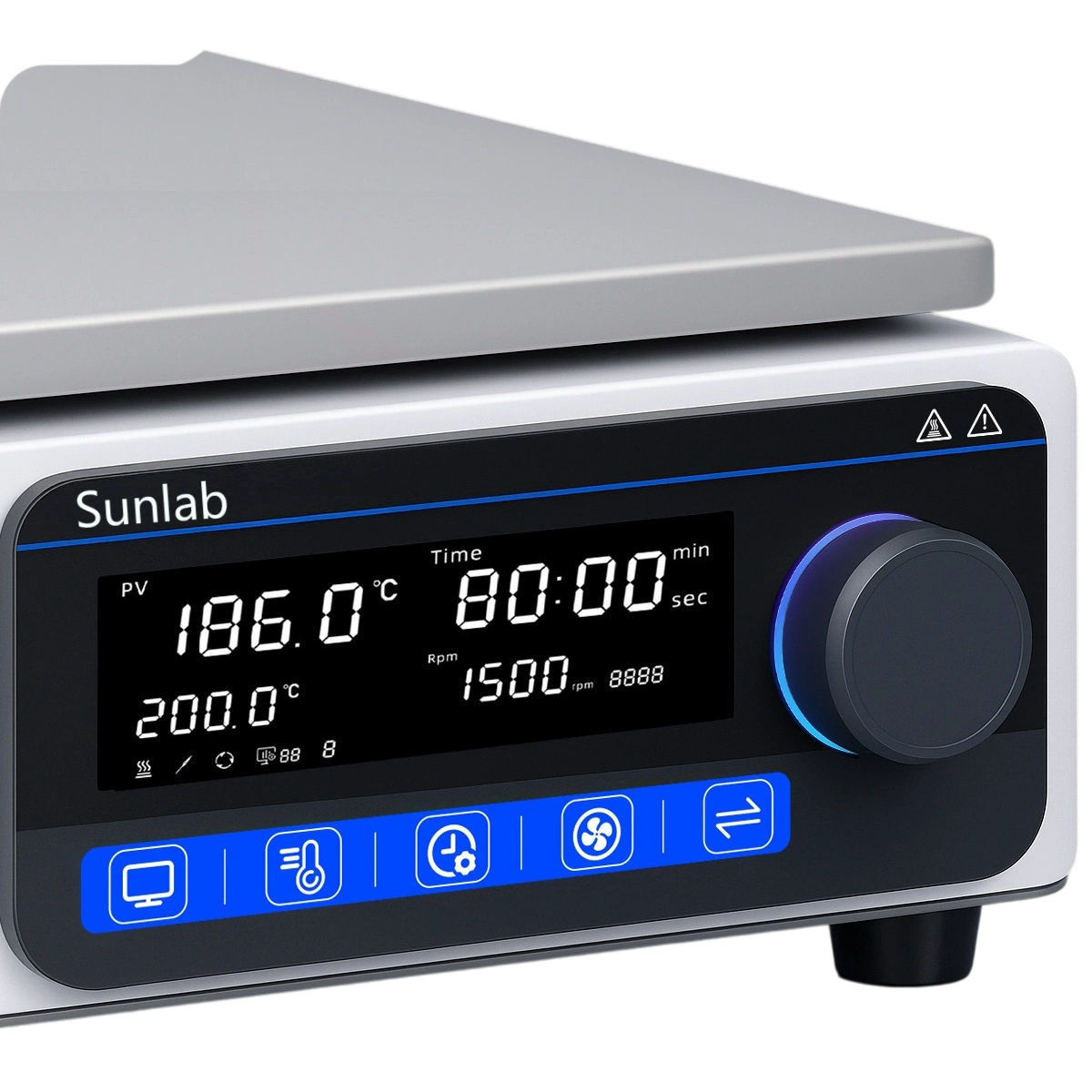

Pro Model - Integrated Smart Digital Control Panel

1. Program Control;

2. Temperature;

3. Timer;

4. Rotation Speed;

5. Stirring Direction;

Intelligent Brushless Motor Supports Both Forward And Reverse Rotation; Delivers Powerful Performance And Is Maintenance-Free.

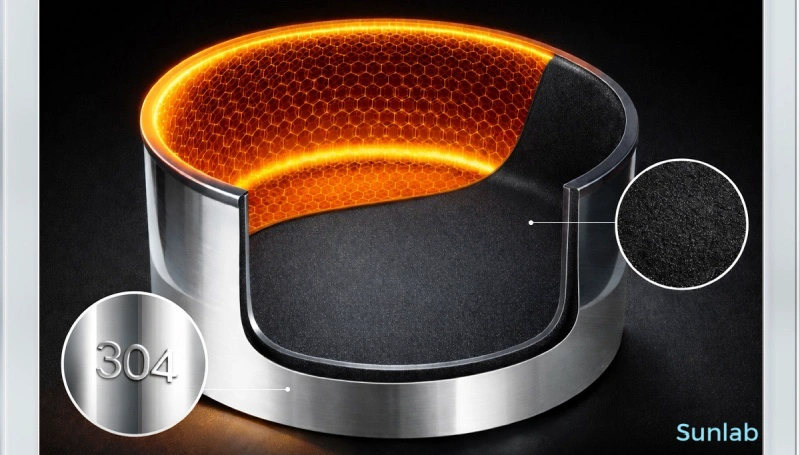

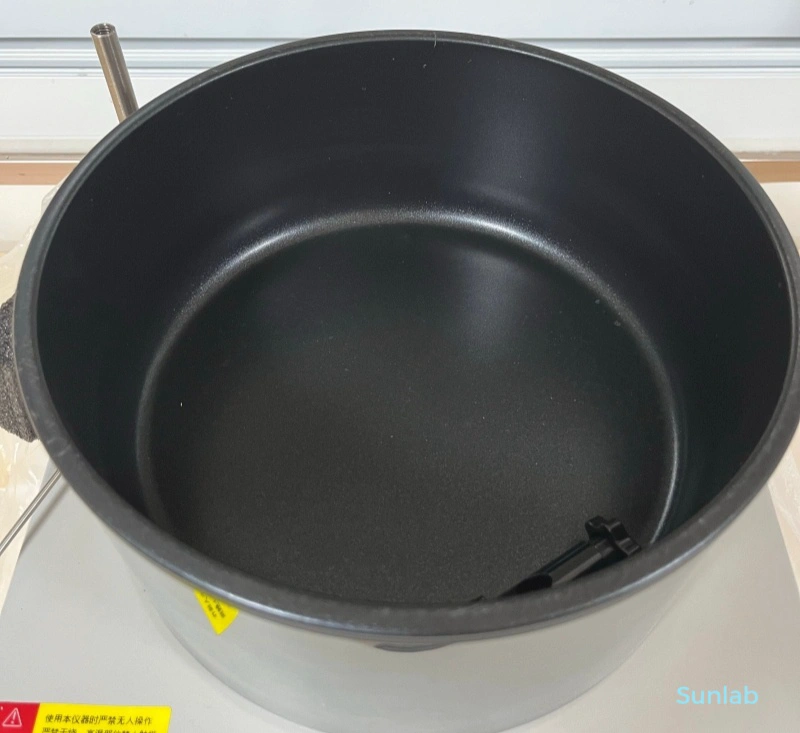

Teflon Anti-Corrosion Coating, Corrosion-Resistant. Lab Oil Bath Pro Model

Intelligent Over-Temperature Protection Ensures Safety And Peace Of Mind; Pro Model

Automatically Cuts Off Heating And Triggers An Alarm In The Event Of Temperature Anomalies;

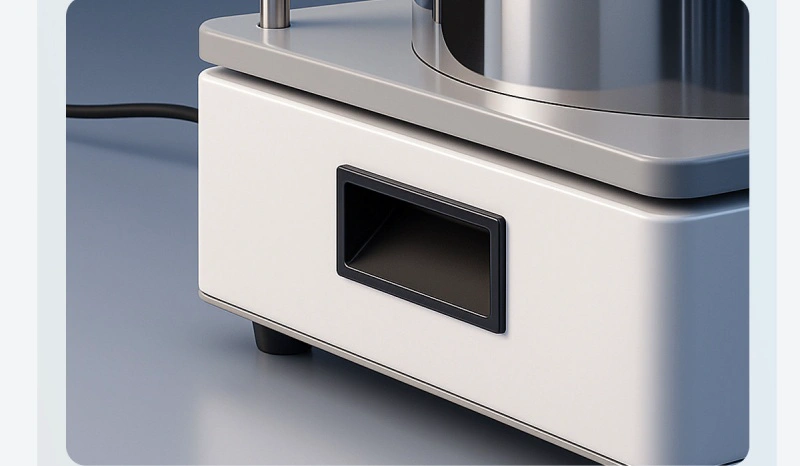

Handles On Both Sides Make Oil Changes More Convenient And Enhance The Use Experience; Pro Model

High Temperature Resistant Thermal Insulation Laminate;

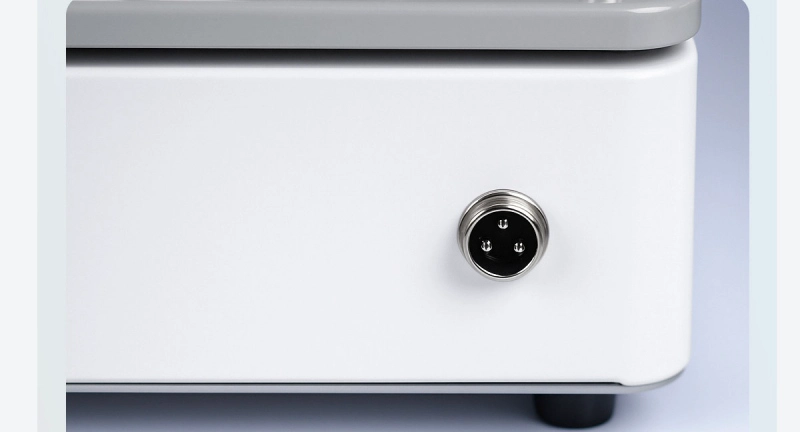

Temperature Sensor Interface, Accurate Monitoring, Data Visualization; Lab Oil Bath Pro Model

Features A 30-Step Program For Controlling Temperature, Time, And Rotation Speed; Lab Oil Bath Pro Model

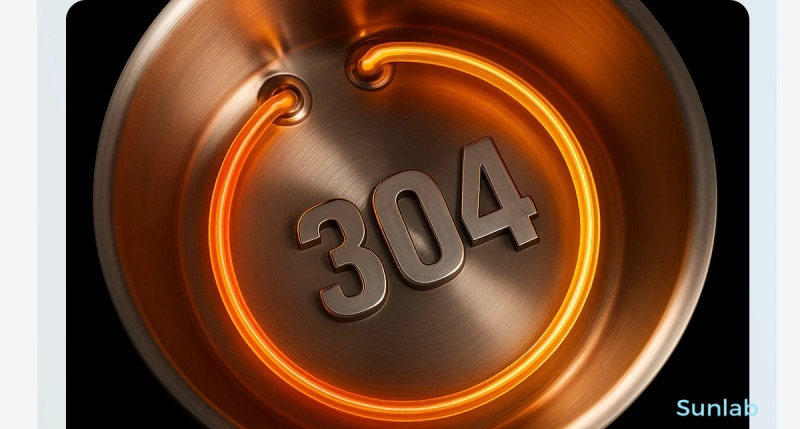

304 Stainless Steel Heating Element Offering Excellent Wear And High-Temperature Resistance, As Well As Rust Resistance;

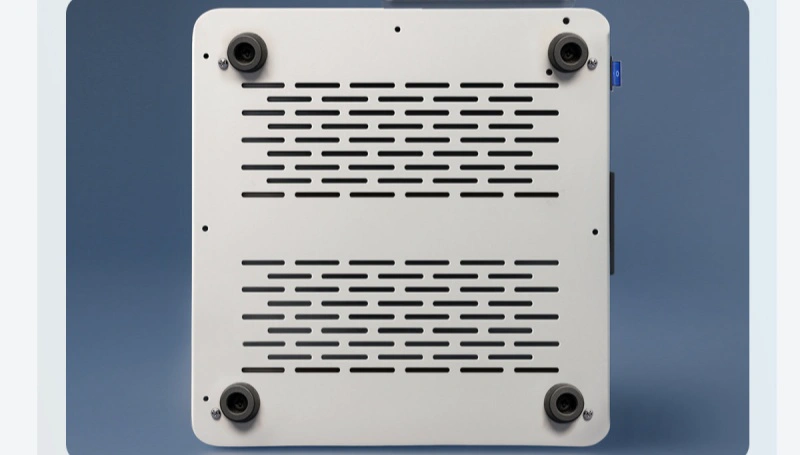

Top And Bottom Convection Vents For Uniform Heat Dissipation, Energy Efficiency, And Quieter Operation.

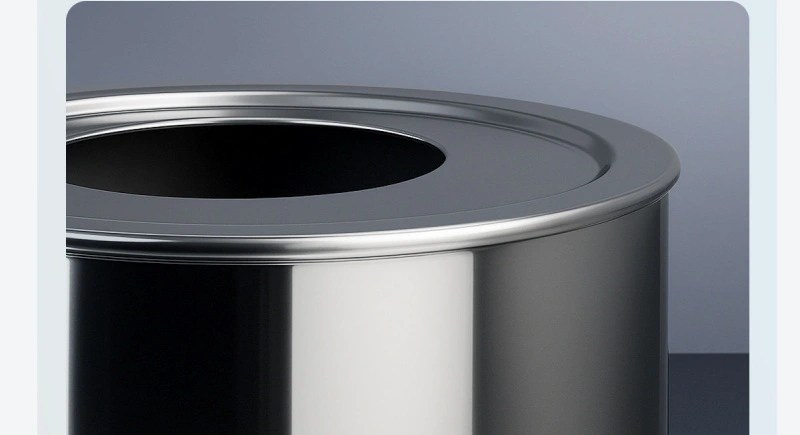

304 Stainless Steel Lid;

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.

Oil Bath Product Packaging

Plastic Bag + Bubble Wrap + Carton.

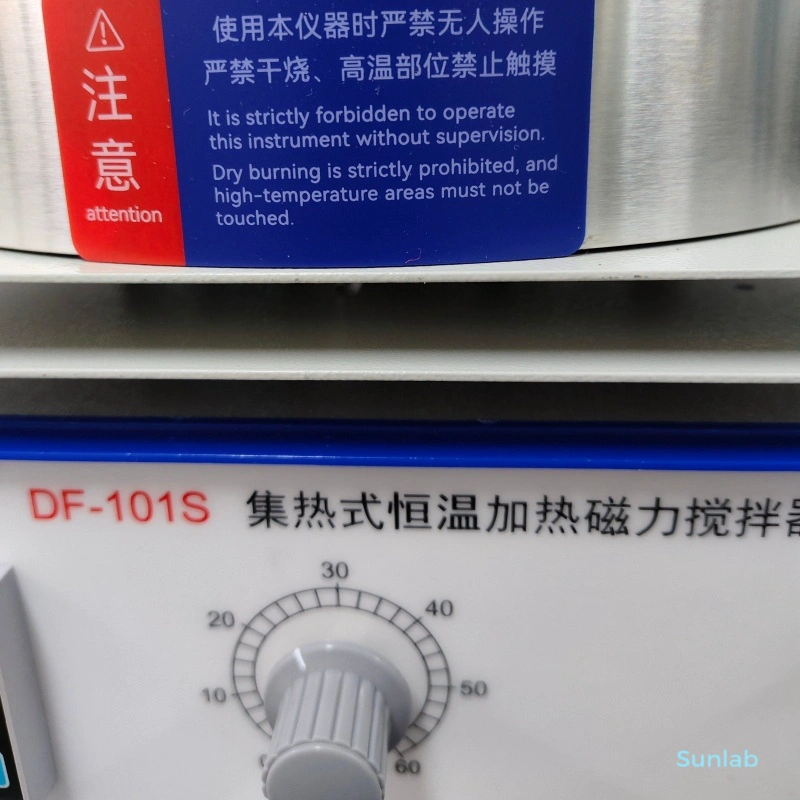

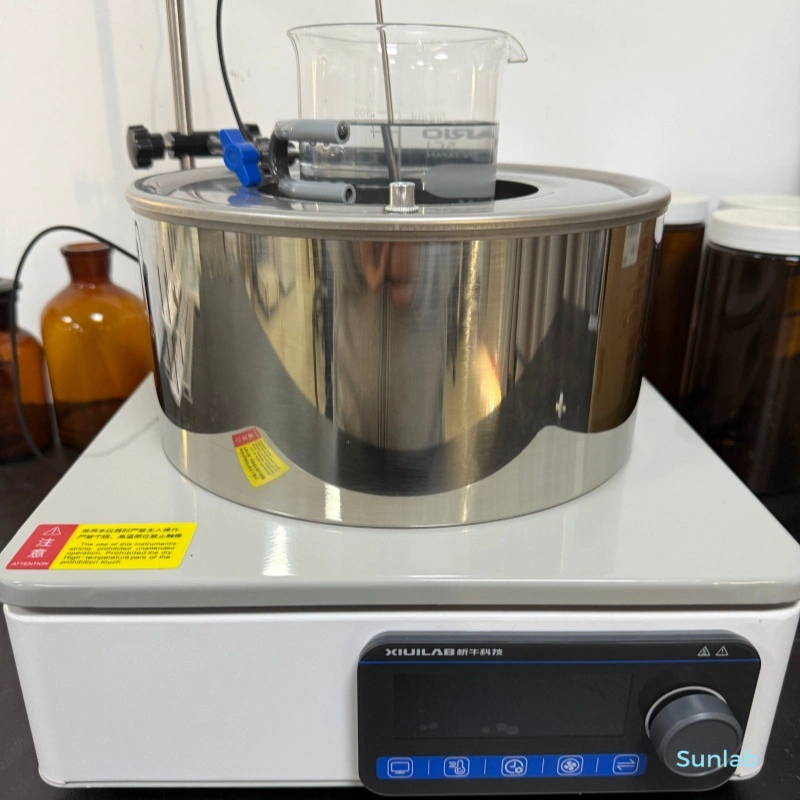

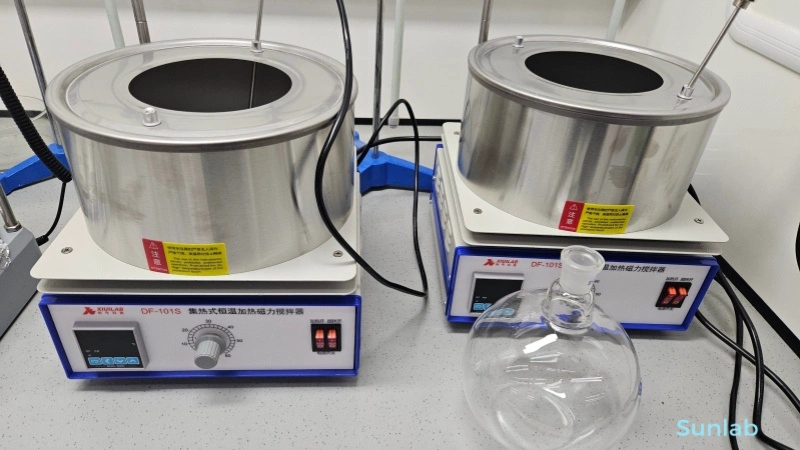

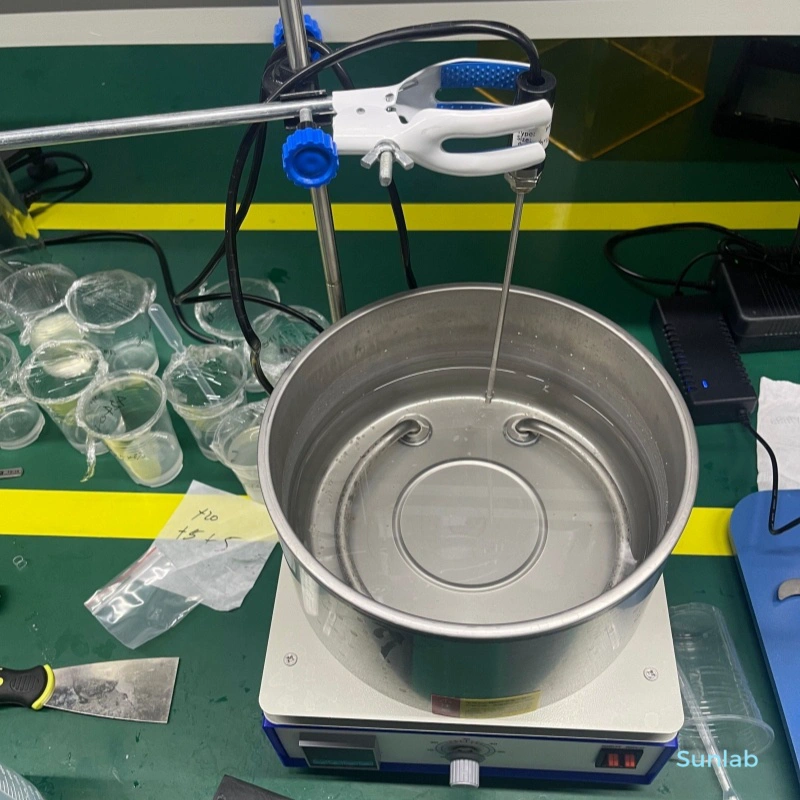

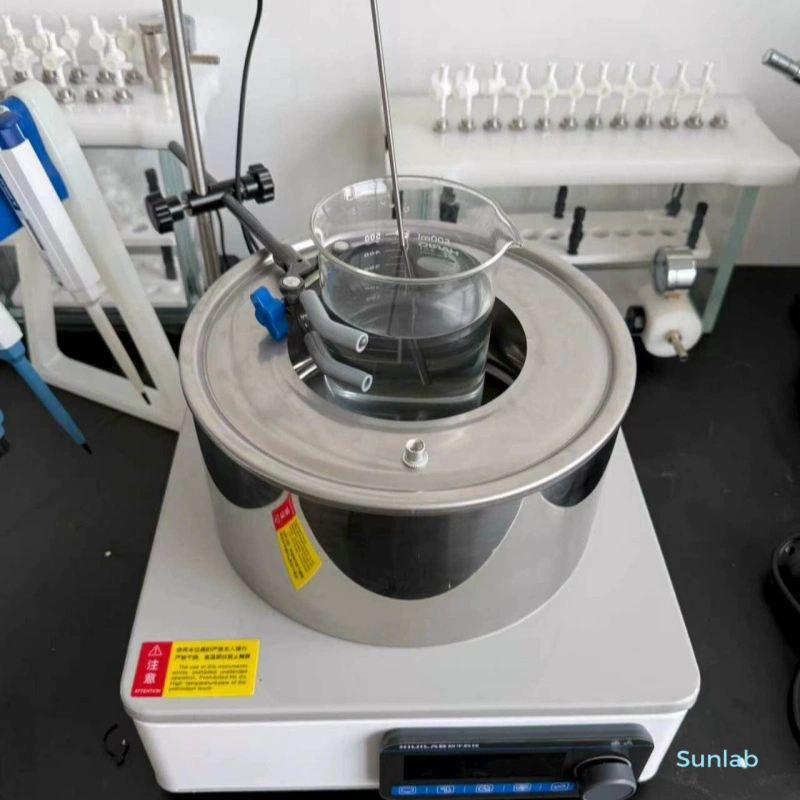

Oil Bath Customer / Application Photos
