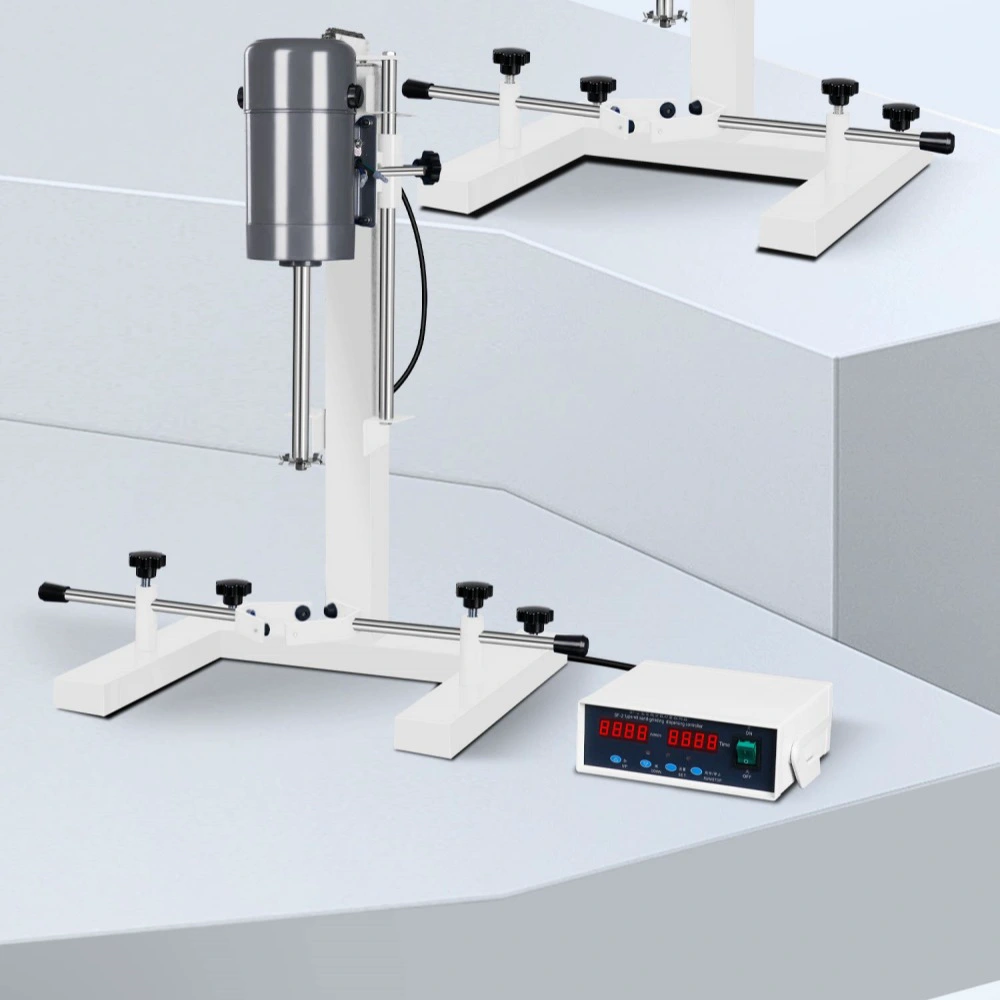

Laboratory High-Speed Disperser, 5-30L

Lab High-Speed Disperser Description

Six Major Advantages

High-Speed Disperser Speed 0-8000 rpm,

5-30L Optional, Motor Power 400-1100w Optional,

Carbon Brush Motors And Brushless Motors,

Integrated Dispersion And Mixing, Good Mixing Effect.

Adjustable Speed, Safe And Stable,

Digital Display, High Efficiency,

Manual Lifting, Chain Lifting, Equipped With Counterweight, Flexible And Convenient Lifting.

Product Video

Technical Specifications / Model Tables

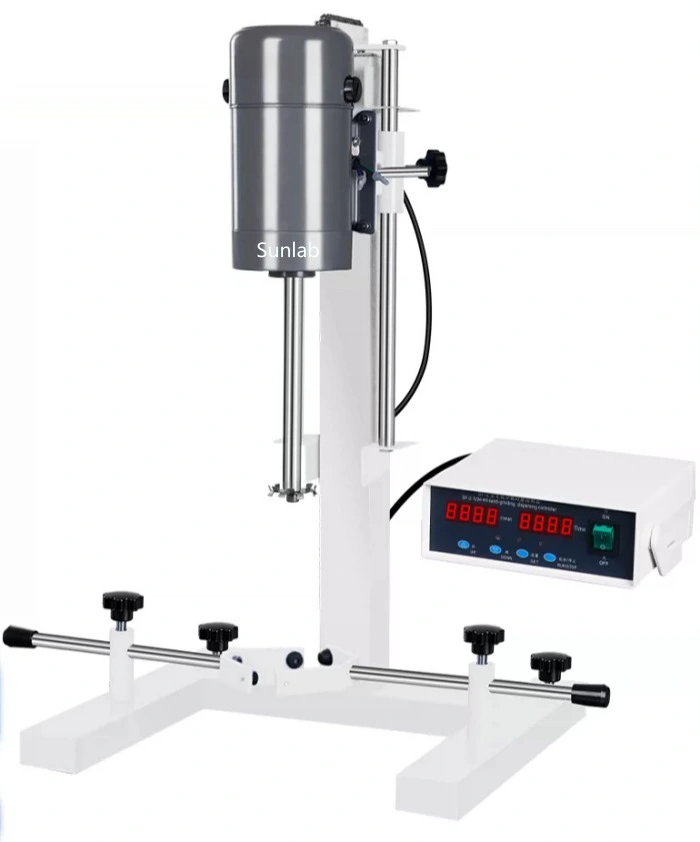

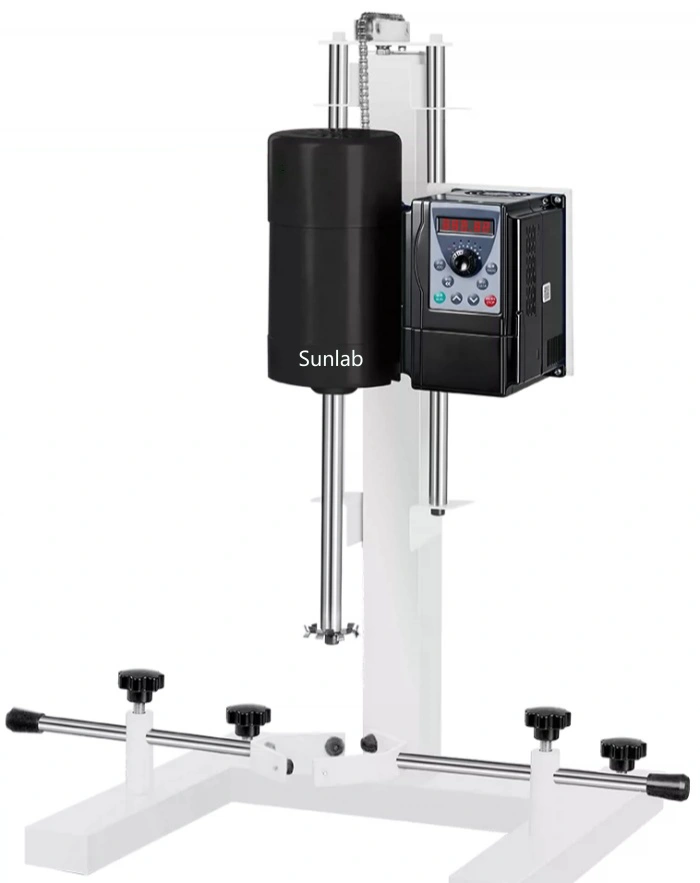

Product Appearance
Product Model	XU-LZGFS-400	XU-LZGFS-550	XU-LZGFS-750
Power	400W	550W	750W
Drive Power	AC100-240v 50/60Hz
Work Head Configuration	One Dispersion Plate Each For ∅50 And ∅60, Made Of 304 Stainless Steel
Motor	Carbon Brush Motor	Brushless Motor
Speed Regulation Method	Speed Control Box Speed Control	Frequency Converter Speed Control
Speed Range	0-8000rpm
Processing Capacity (Using Water As Medium)	5L	10L
Lifting Method	Manual Lifting, Chain Lifting, Equipped With Counterweight, Flexible And Convenient Lifting
Lifting Stroke	260mm
Main Axis Length	210mm		270mm
Machine Size	420*450*740mm		420*450*800mm

The Following Table Shows The Carbon Brush/Variable Frequency Motor

Product Appearance
Product Model	XU-LZGFS-1100T-Carbon brush	XU-LZGFS-1100B-Variable Frequency	XU-LZGFS-1100BX-Variable Frequency
Power	1100W Carbon brush	1100W Variable Frequency
Drive Power	AC100-240v 50/60Hz
Work Head Configuration	One Dispersion Plate Each For ∅50 And ∅60, Made Of 304 Stainless Steel		∅80 scattering plate one piece, Made Of 304 Stainless Steel
Motor	Carbon Brush Motor	Brushless Motor
Speed Regulation Method	Speed Control Box Speed Control	Frequency Converter Speed Control
Speed Range	0-8000rpm (sunlabpro.com)
Processing Capacity (Using Water As Medium)	5L	15L	30L
Lifting Method	Manual Lifting, Chain Lifting, Equipped With Counterweight, Flexible And Convenient Lifting
Lifting Stroke	260mm		400mm
Main Axis Length	210mm		360mm
Machine Size	420*450*740mm		580*450*1250mm

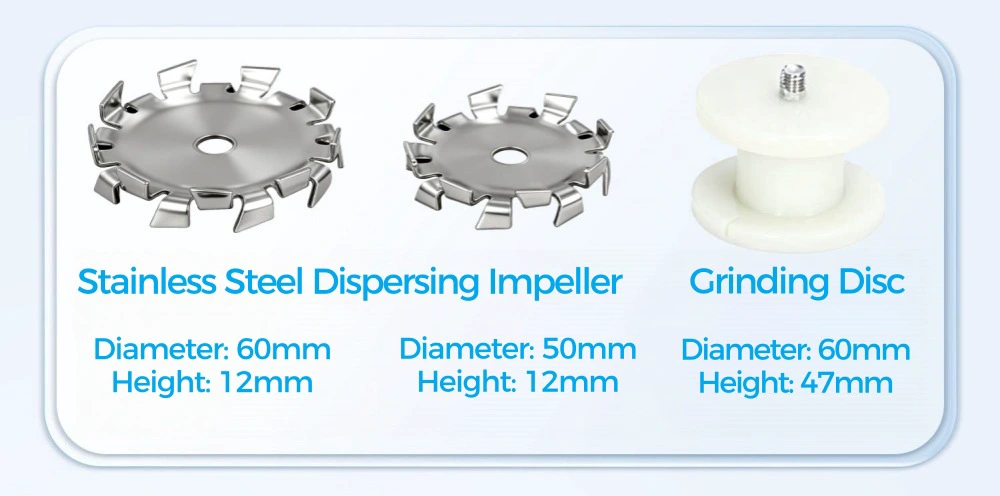

Accessories Display

Product Overview

Laboratory High-Speed Disperser

A Laboratory High-Speed Disperser Is A Specialized Mixing Device Designed For The Efficient Mixing, Dispersion, And Dissolution Of Solid-Liquid And Liquid-Liquid Materials. It Is Particularly Suitable For High-Shear Processing Of High-Viscosity Materials, Making It An Essential Piece Of Equipment In Paint, Ink, And Chemical Laboratories.

Working Principle

The Disperser Uses An Electric Motor To Drive A Dispersing Blade At High Speed, Generating Strong Shear Forces And Centrifugal Forces. These Forces Rapidly Break Down Agglomerates And Disperse Materials Throughout The Liquid, Producing A Uniform And Stable Suspension Or Emulsion. Compared With Conventional Stirrers, A High-Speed Disperser Provides More Efficient Processing For Applications That Require Intensive Dispersion.

Applications

Laboratory High-Speed Dispersers Are Widely Used In Paint And Ink Manufacturing For Pigment Dispersion; Adhesives Production For Resin Dissolution; Biopharmaceutical Applications For Paste Preparation; New Energy Materials For Slurry Mixing; And Research And Development In The Food And Cosmetics Industries. They Are Particularly Suitable For Materials That Require High-Shear Mixing And Efficient Dispersion.

High-Speed Disperser Selection Guide

When Selecting A Laboratory High-Speed Disperser, The Processing Capacity Should Match The Experimental Batch Size. A 5–10 Liter Capacity Is Suitable For Laboratory Research And Development, 15–20 Liters Is Commonly Used For Pilot-Scale Testing, And 30 Liters Is Suitable For Larger Batches. In Terms Of Motor Power, 400–750 W Models Are Generally Suitable For Low- To Medium-Viscosity Materials, While High-Power Models Rated At Approximately 1,100 W Are Better Suited To High-Viscosity Materials Or Larger Batches. Other Factors To Consider Include The Lifting Mechanism, Which May Be Manual Or Pneumatic, And The Wear Resistance And Corrosion Resistance Of The Dispersing Blade Material.

Sunlabpro has more than 10 years of experience supplying laboratory instruments from China. We support orders starting from one unit and provide reliable product quality. Competitive discounts are available for larger quantities.

Product Detail

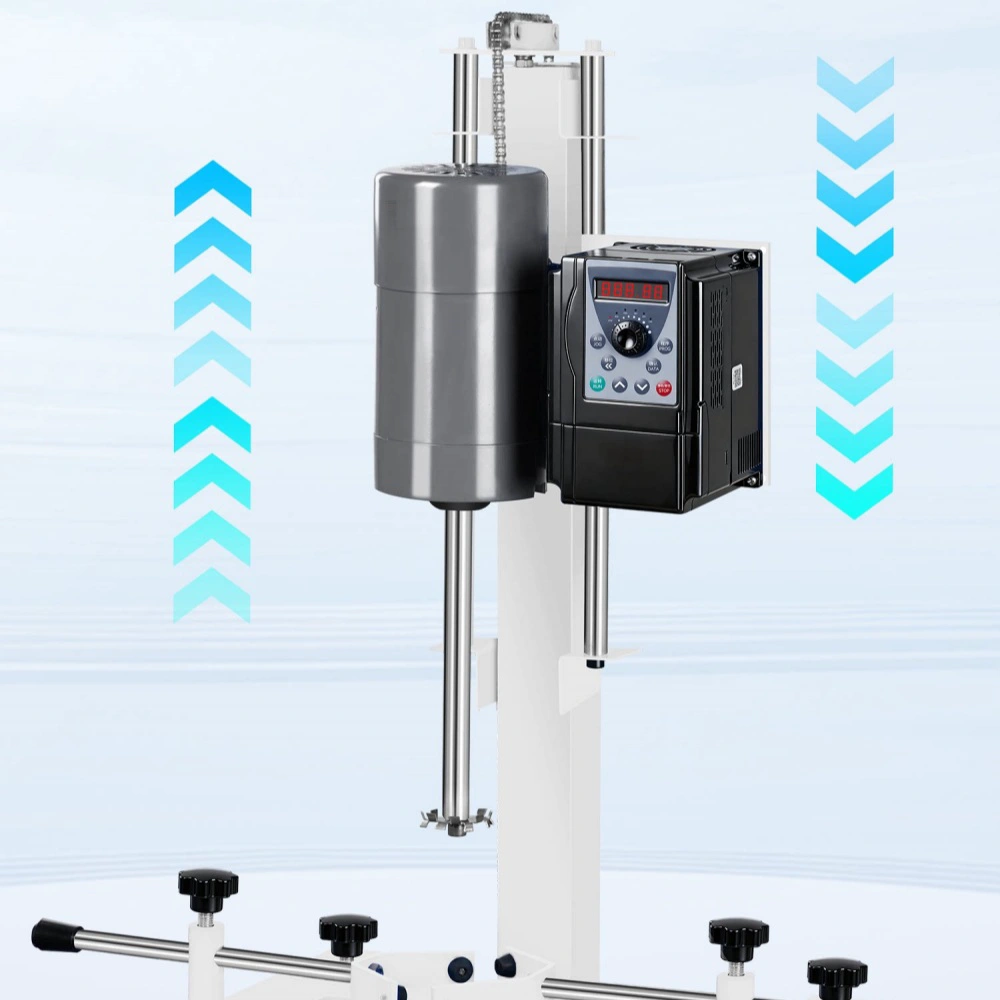

Stepless Speed Regulation Digital Display Speed, The Maximum Speed Can Reach 8000r/Min.

Manual Lifting Disperser,

Can Be Adjusted Up And Down To The Desired Height,

The Upper And Lower Adjustment Range Is 26cm.

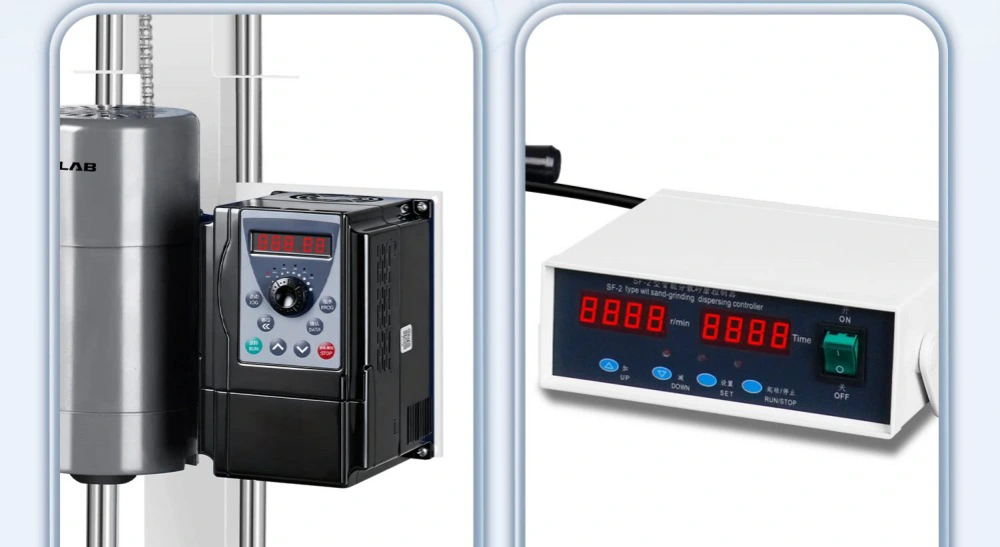

Intelligent Control,

Suitable Models Can Be Selected According To Different Needs,

Stepless Speed Adjustment With Buttons, Fine Adjustment Of Speed With Buttons.

Speed Digital Display To Adjust Speed.

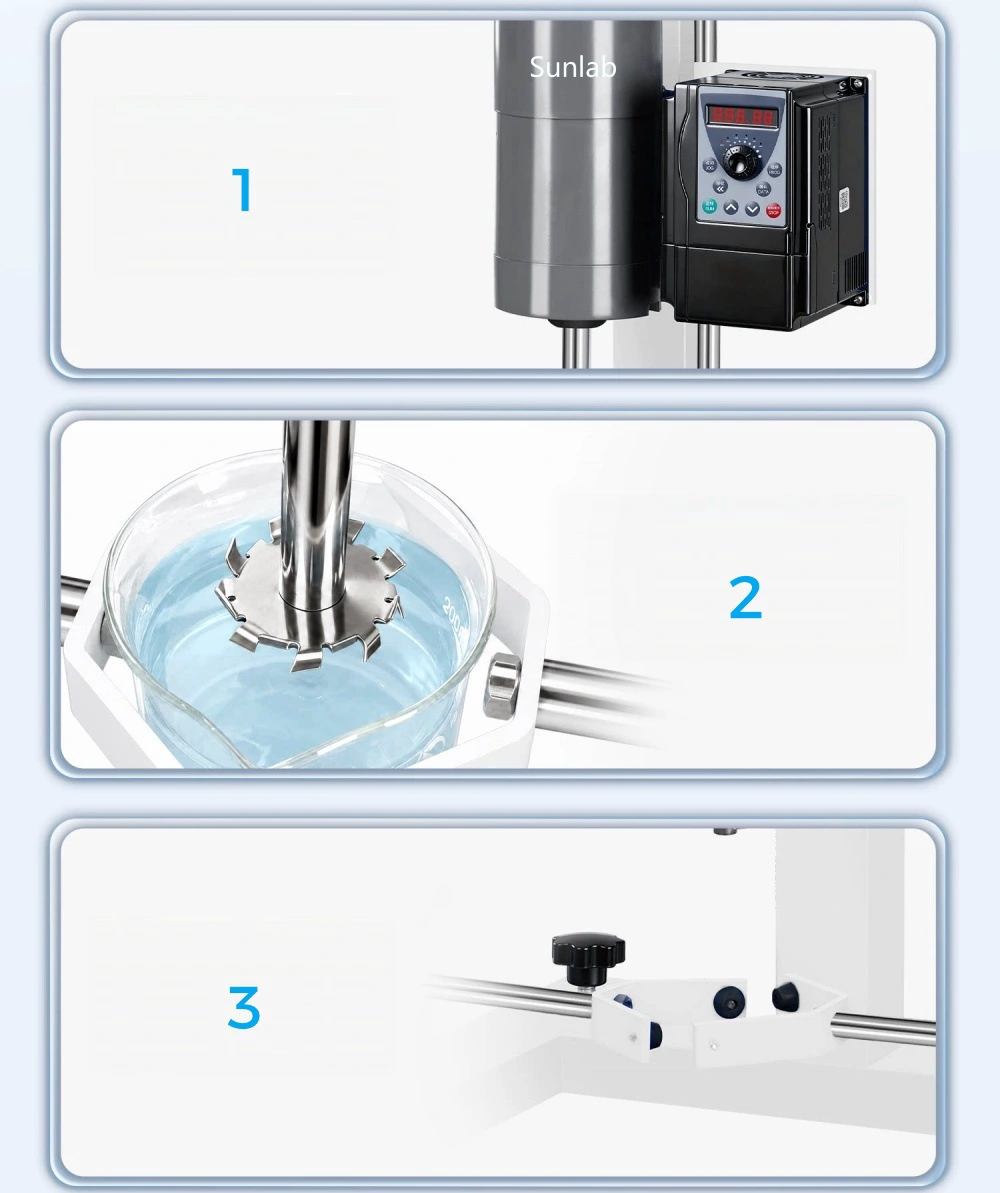

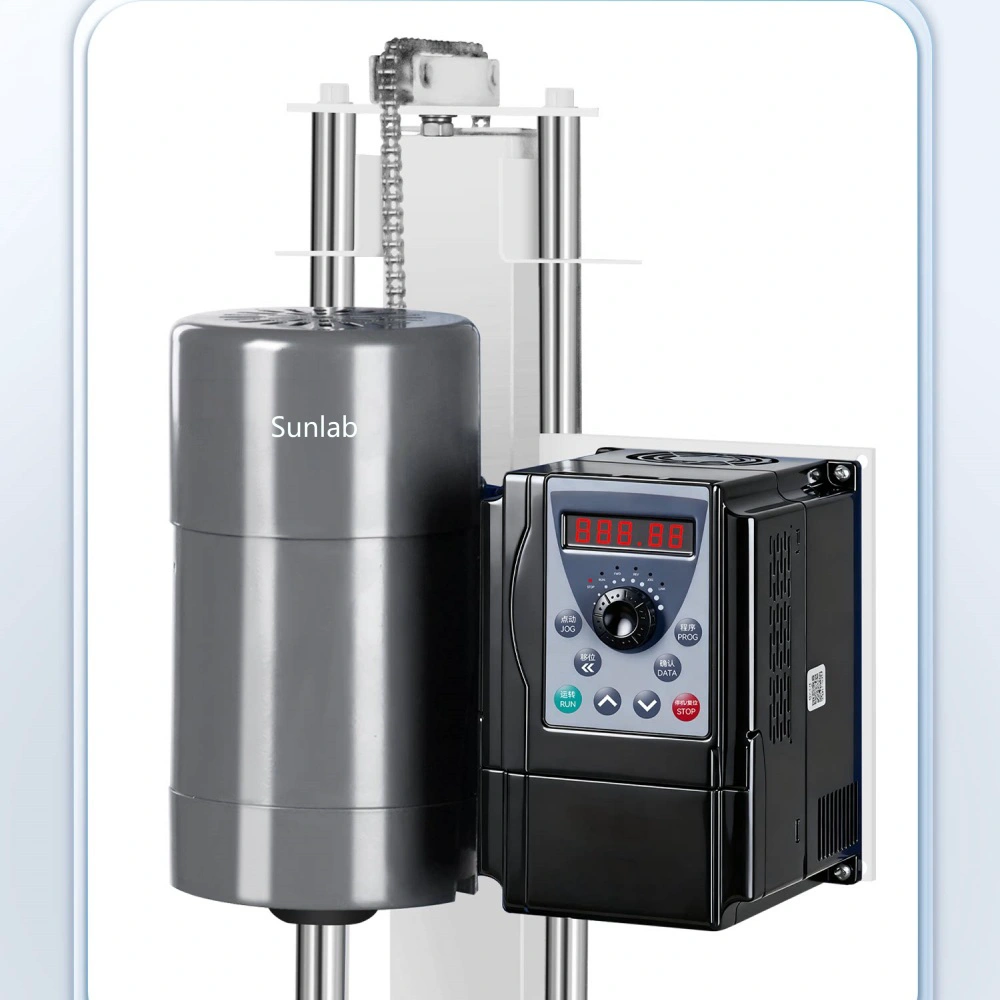

1. Speed Regulating Motor, Wide Speed Range And Fast Speed Control;

2. Dispersion Impeller, Made Of Stainless Steel And Durable;

3. Barrel Fixing Clamp, Stable Operation.

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.

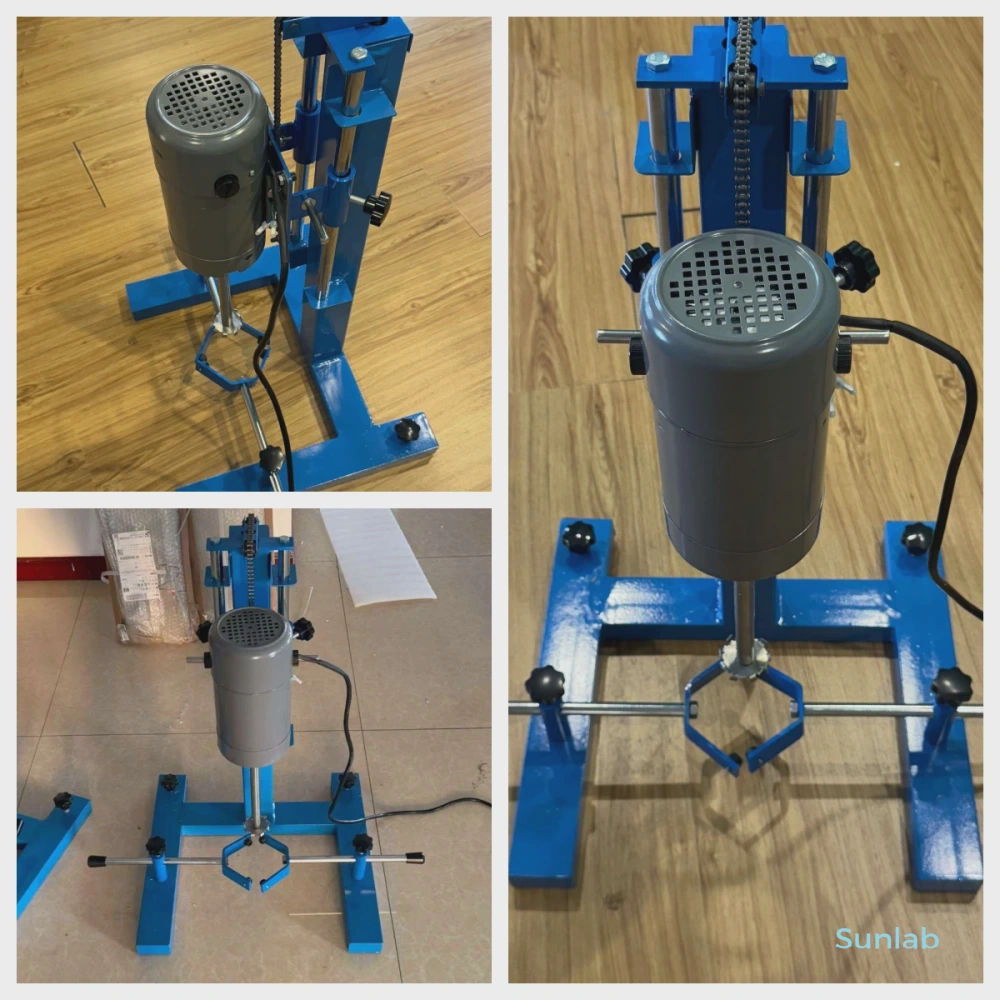

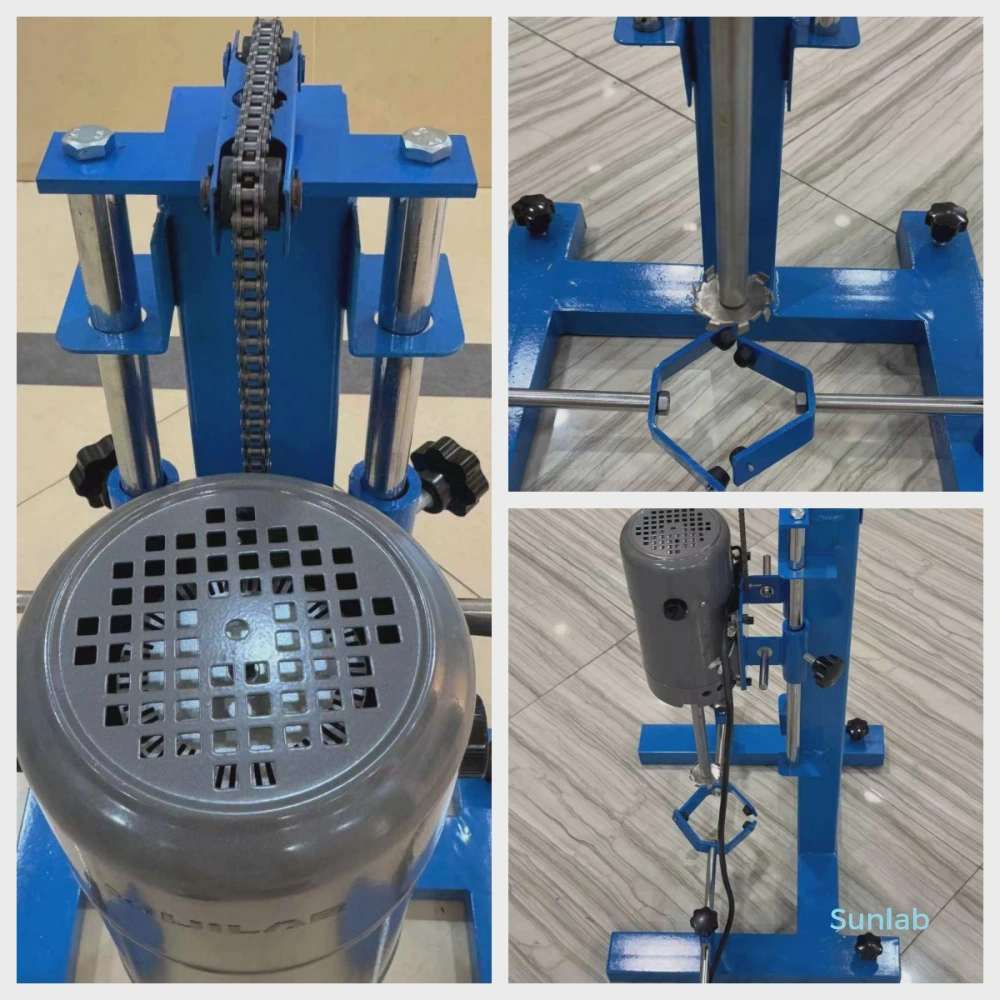

Customer Photos/ Customer Review

Overall, it is very good. The motor has sufficient power. The machine body is stable and does not shake when dispersing at high speed. The speed gear can be adjusted smoothly. The emulsifying and dispersing effect of coatings and slurries is very good. Complete accessories, easy to disassemble and clean.

The motor is powerful and easy to assemble. Just install the dispersing head according to the instructions and you can use it directly. We usually do dispersion processing of pigments and emulsion samples, and the motor will not get hot even if it is operated continuously for a long time.

The durability of the equipment is very good, there is no abnormality in intermittent long-term operation, the rotation speed is controllable, and the performance is stable whether it is pre-mixing or high-speed dispersion. The base is sufficiently weighted to prevent the whole machine from shaking during high-speed operation.
