Laboratory Closed Electric Stove, Infrared Hot Plate

Lab Closed Electric Stove Description

Far Infrared Electric Stove, Heats Up Quickly, No Open Flame.

5 Major Advantages:

1. Pid Precise Intelligent Temperature Control;

2. Intelligent Timing Can Be Set From 0 To 999 Minutes (Limited Number Display);

3. High Temperature Heating Is Applicable To A Wide Range Of Temperatures Up To 400°C;

4. Cast Iron Plate, No Deformation At High Temperatures, Durable, High Temperature Resistant Coating;

5. Led Digital Screen, Clear And Intuitive (Limited Digital Display Model).

Product Video

Technical Specifications / Model Tables

FB Series-Digital Display Model

FB Series-Knob Model

Product Overview

Laboratory Far Infrared Hot Plate

A laboratory far infrared hot plate is an efficient heating device that uses far infrared radiation to provide rapid and effective heating. It is mainly used for heating, boiling, and evaporation of laboratory vessels such as beakers and Erlenmeyer flasks. It offers fast heating and high thermal efficiency compared with conventional electric hot plates, making it a commonly used heating device in laboratories.

Working Principle

The far infrared heating element generates far infrared radiation when electrically powered. The radiation transfers heat directly to the bottom of the vessel and the liquid inside, providing efficient heat transfer and uniform heating. The heating power can be flexibly adjusted using a voltage regulator or temperature control system, depending on the requirements of the experiment.

Applications

Laboratory far infrared hot plates are widely used in chemical analysis, including solution heating and sample digestion; environmental monitoring, such as water sample pretreatment; food quality testing; and teaching experiments in universities and research institutions. They are particularly suitable for routine laboratory heating applications that require rapid temperature rise.

Glass Air Dryer Selection Guide

When selecting a laboratory far infrared hot plate, the heating plate diameter should be chosen according to the size of the commonly used vessels. A 150 mm heating plate is suitable for small- and medium-capacity vessels, while a 180 mm heating plate is suitable for larger beakers and Erlenmeyer flasks. Other factors to consider include the rated power, whether adjustable power control is available, and safety features such as over-temperature protection.

Sunlabpro has more than 10 years of experience supplying laboratory instruments from China. We support orders starting from one unit and provide reliable product quality. Competitive discounts are available for larger quantities.

Product Detail

High-Quality Materials Are Anti-Corrosive And Durable.

Cold-Rolled Steel Shell, Surface Electrostatic Spraying, Anti-Corrosion And Anti-Aging;

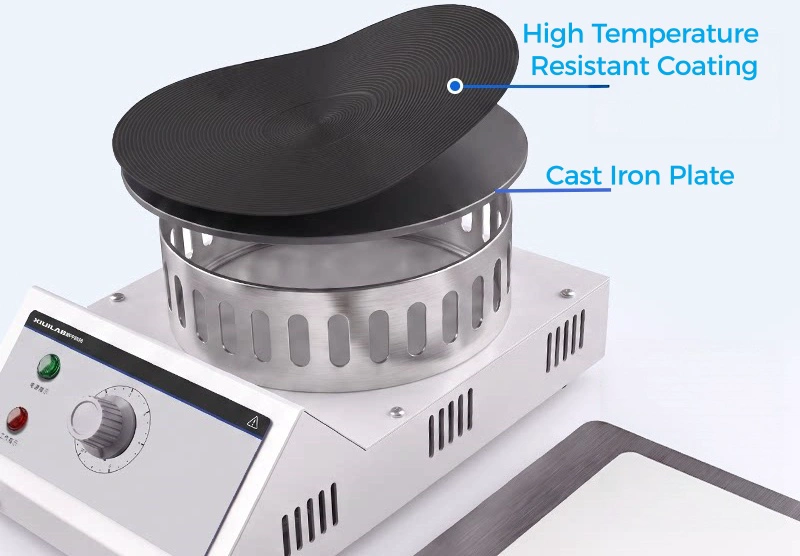

High Temperature Resistant Coated Cast Iron Heating Plate With High Hardness And No Deformation.

400°C High Temperature Heating, Widely Applicable,

The Rated Temperature Can Reach Up To 400°C, With High Thermal Efficiency, Rapid Heating And Uniform Temperature.

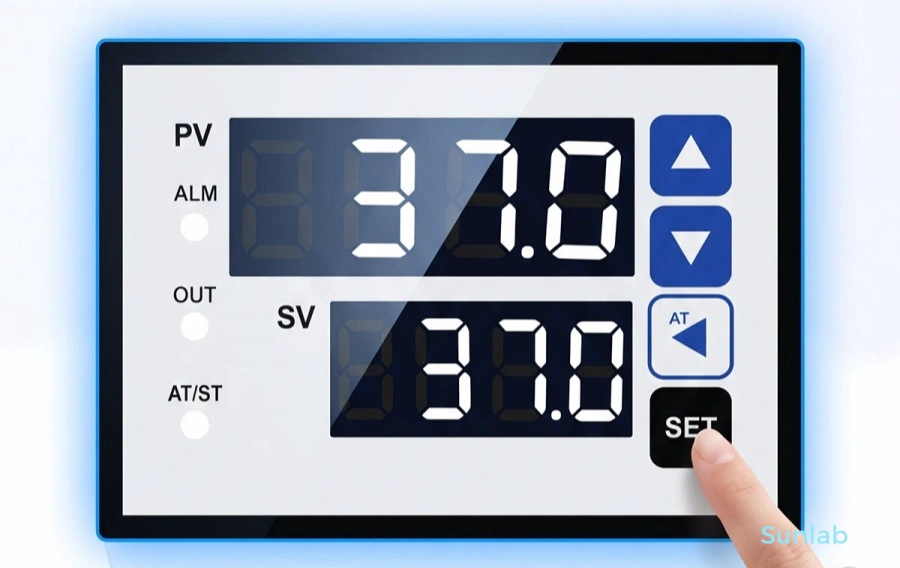

Led Digital Tube Intelligent Timing 0-999min,

Display The Set Temperature, Time And Current Temperature And Time, Clear And Intuitive.

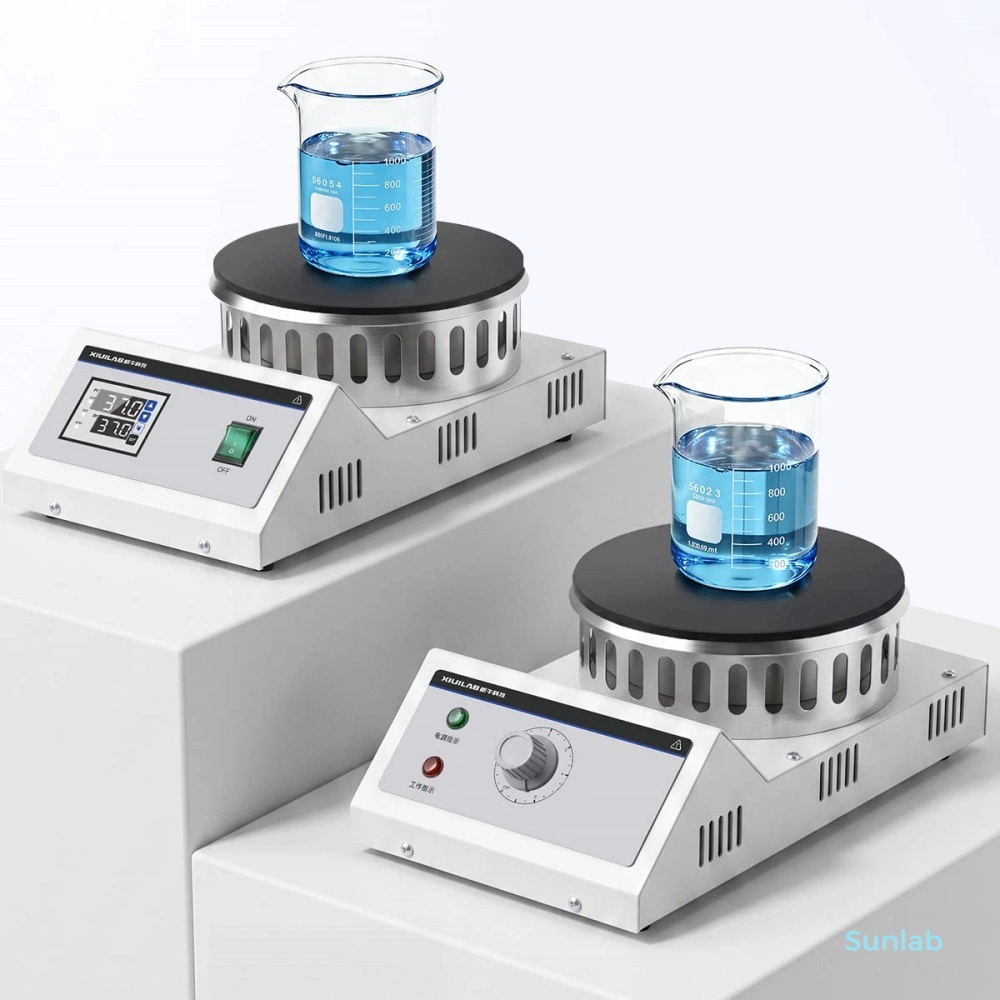

Two Specifications To Choose From, Pid Intelligent & Stepless Temperature Regulation.

Sensor Error Correction.

Stepless Temperature Adjustment, Simple Operation.

Precise Temperature Control And Reliable Data.

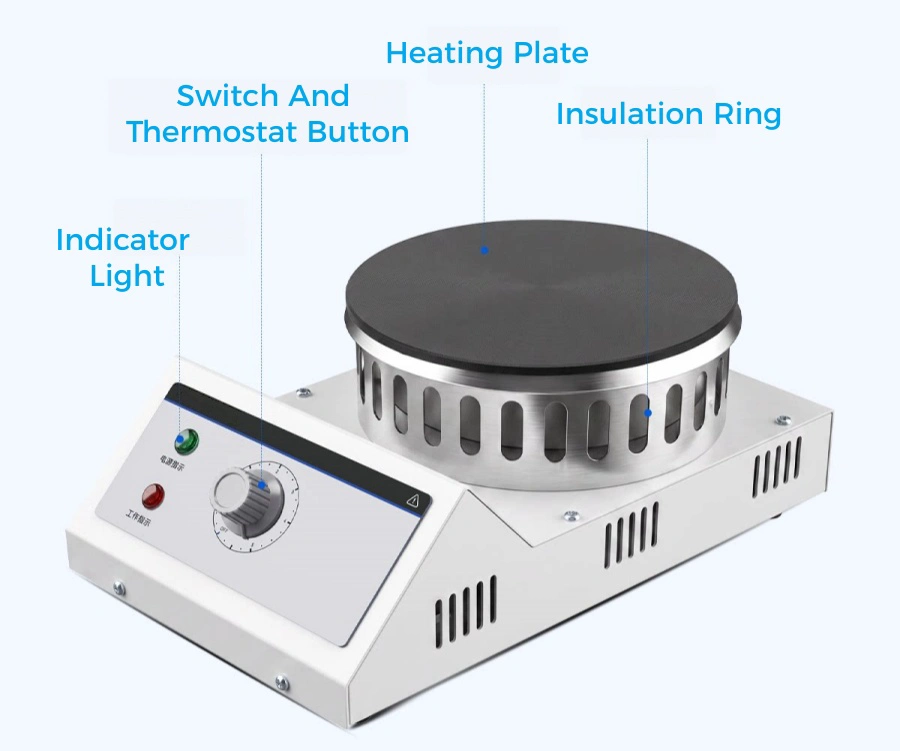

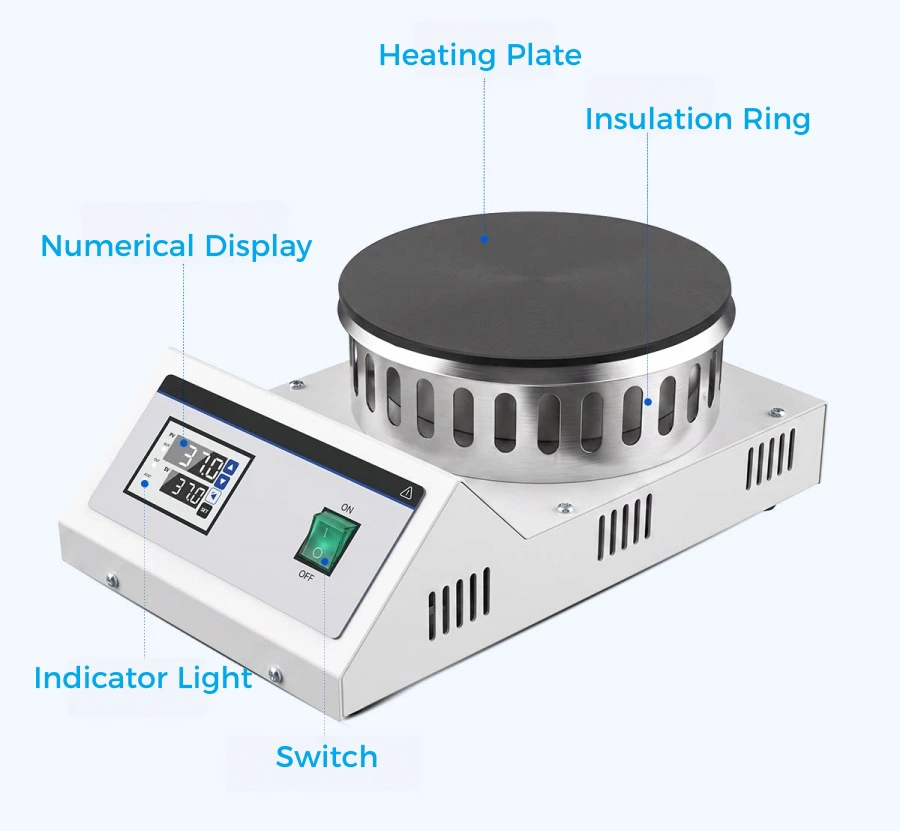

1. Insulation Ring,

Prevent Safety Hazards Caused By Accidentally Touching.

2. Heating Plate,

Heating Evenly, Resistant To High Temperatures, No Open Flames, Easy To Clean.

3. Anti-Slip Floor Mats,

Anti-Slip Pads Are Provided At The Four Corners Of The Bottom To Ensure Safe Use.

4. Power Supply Clip To Secure The Power Cord While Improving Aesthetics.

OEM / ODM Services

MOQ: 1 Piece. Buyer'S Logo Customization Is Available For Orders of 50 Pieces or More. ODM Orders Are Shipped Within 12–25 Days After Order Confirmation.

Closed Electric Stove Product Packaging
